Alpha ESS Co., Ltd.
Page 18 of 45
Your Smart Energy
5
Dry contact
13
DB9 COM
6
Electricity meter
14
Storage card
7
EMS
15
Burning port
8
Air conditioner
16
COM pin board
17
DIP switch
Technical parameters：
No.
Item
Technical parameter
1
Dimensions(W x D x H)
215 x 623 x 436 mm
2
COM
RS-485×4; Ethernet 10/100/1000Mbps×1
3
Internal storage
CF card, 4 GB
4
Events diary
Recent one-month happenings
5
Work voltage
24 V
6
Power consumption
<10 W

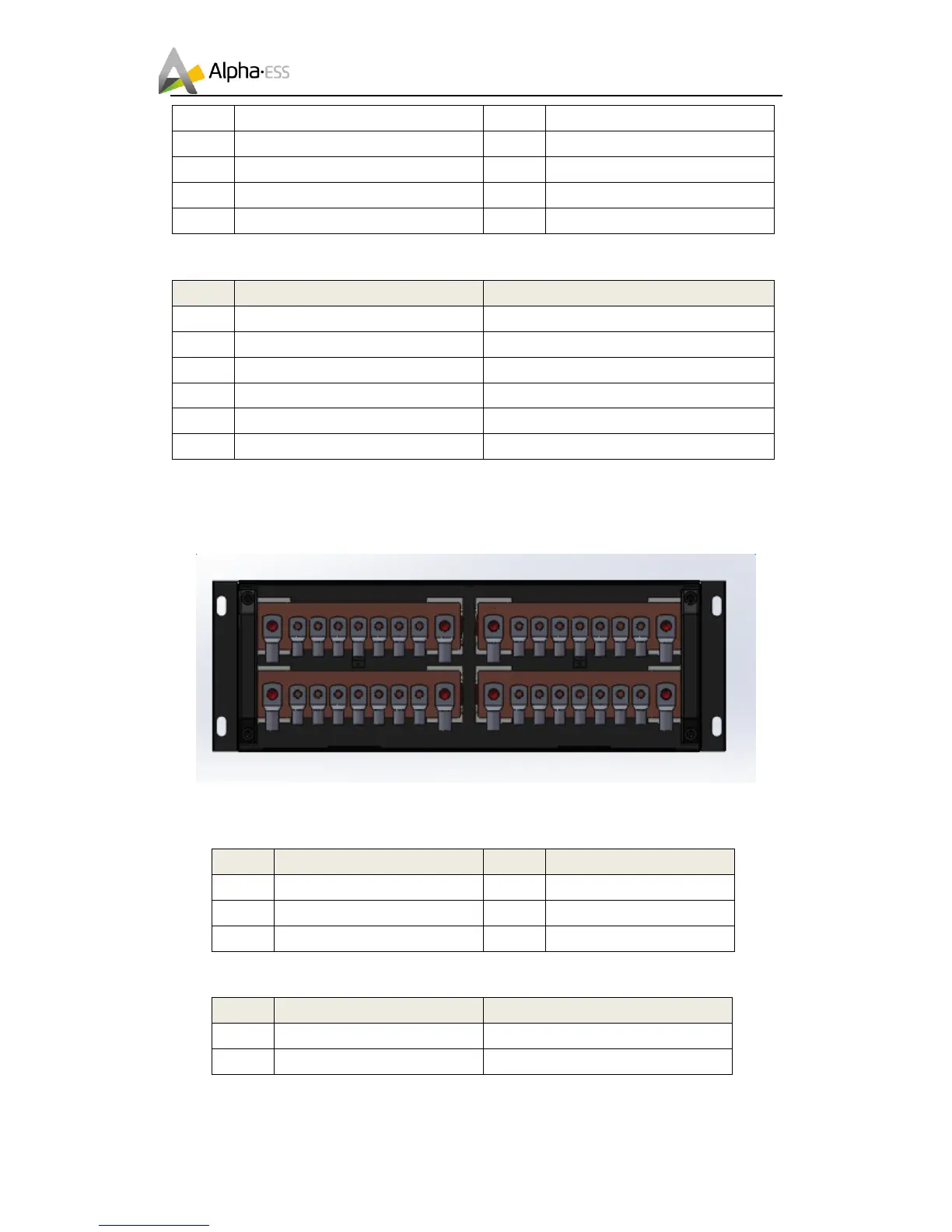

3.3.3.4 Junction box
Wiring definition
No.
Description
No.
Description
1
DC IN INV-
4
DC OUT+
2
DC IN INV+
5
Handle
3
DC OUT-
Technical parameters
No.
Description
Technical parameter
1
Dimensions (W*D*H)
447x205x162 mm
2
Weight
7 kg
1
1
1
1
2
2
2
2
3
3
4
4
5
5
