contact, 1 and 2 is normally open contact, you can connect the diesel dry contact control the
2 and 3.
2. Connect DI_2 to the fire fighting dry contact, port 14 and 15 are respectively corresponding to
the composite fire alarm of connecting fire fighting.

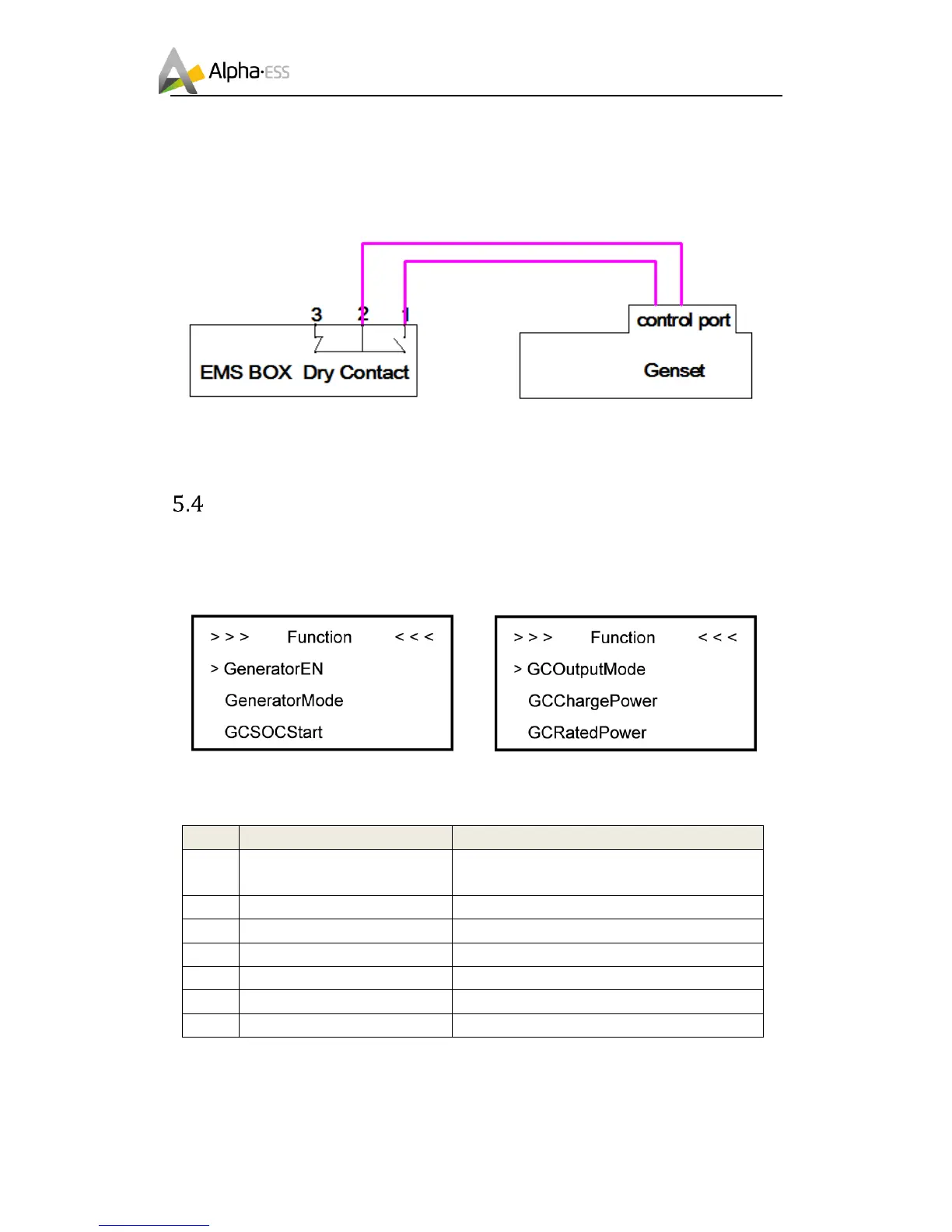

3. Please connect the diesel control dry contact as the below picture shows:
Note: normally open/closed contact which connects the Genset according to the genset
controller.
Diesel Generator Control
Enter into EMS menu
Main interface -> Setting -> Password (the initial password for installers is 1111)
Enter function menu -> Generator allocation
Table 4 Setting Parameter for Diesel Generator Control
No.
Parameter
Description
1
GeneratorEN
Yes-Diesel generator enabled
No-Diesel generator disabled
2
GeneratorMode
Fix SOC mode
3
GCSOCStart
Lower limit of the configured SOC range
4
GCSOCEnd
Upper limit of the configured SOC range
5
GCOutputMode
Optional 6, 7 mode
6
GCChargePower
Battery charging power
7
GCRatedPower
Diesel generator output rated power
When the diesel generator is enabled, it will supply the load at the first.
