General information for the installer

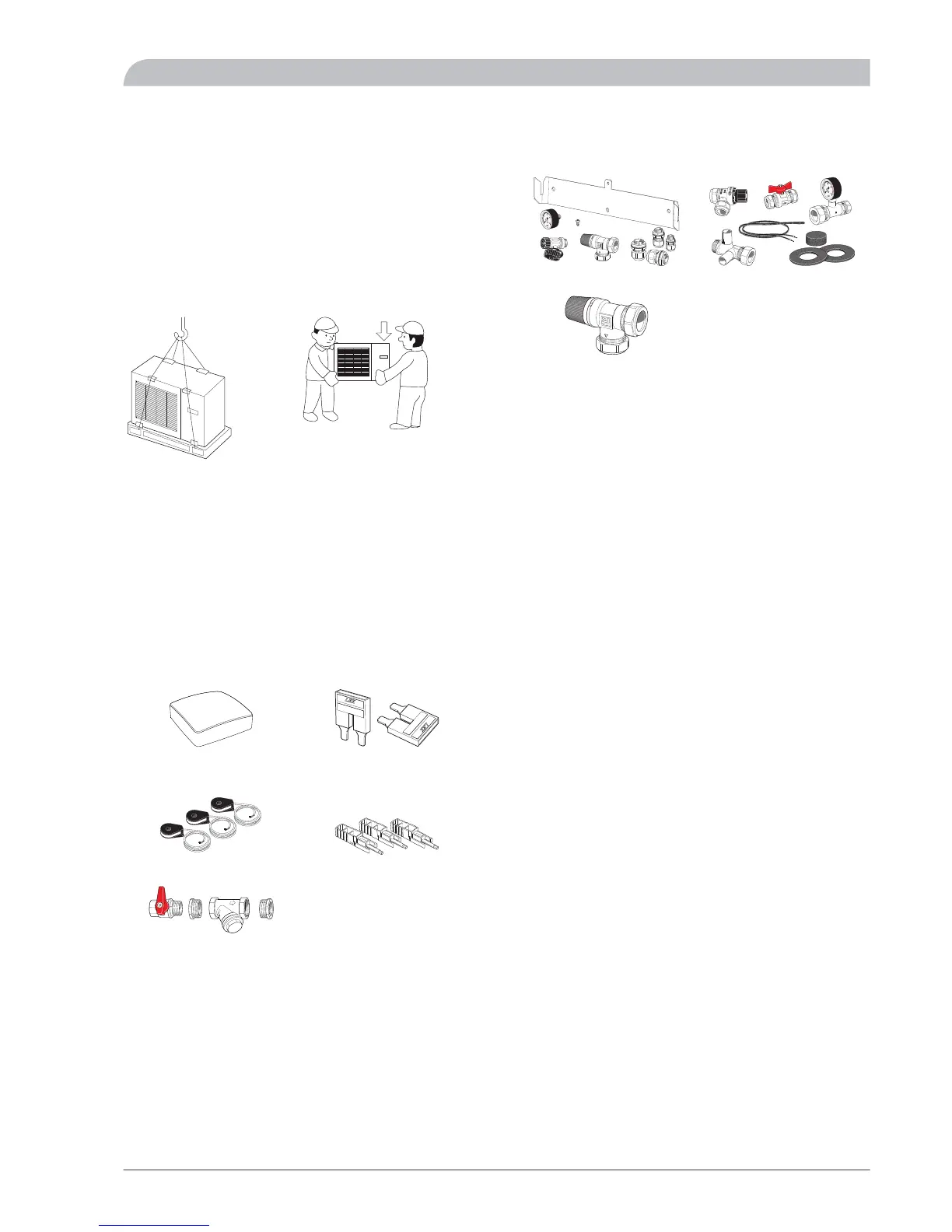

Transport and storage
Outdoor module L8 SPLIT/L12 SPLIT
L8 SPLIT/L12 SPLIT should be transported and stored ver-
tically.
If the heat pump is to be lifted using lifting straps without
packaging, protect as illustrated.
The right-hand side of the heat pump (seen from the front)
is heavier.
HM 8-12 SPLIT
HM 8-12 SPLIT can be transported horizontally on its back
and must be stored horizontally and in dry conditions.
EHZK 90 SPLIT, WWS 300 SPLIT, WWS 500 SPLIT tanks
WWS 300 SPLIT and WWS 500 SPLIT must be transported
and stored vertically in a dry place.
EHZK 90 SPLIT must be transported and stored in a hori-
zontal position in a dry place.
Supplied components
HM 8-12 SPLIT
Straps for single phase connec-
tion
Outside sensor
Particle filter and shut-off
valve
EHZK 90 SPLIT, WWS 300 SPLIT, WWS 500 SPLIT
Safety valve WWS 300 SPLIT
The enclosed kits are located behind the front service
cover in HM 8-12 SPLIT, in the cardboard box on EHZK 90
SPLIT and taped under the tank on WWS 300 SPLIT and
on the pallet by WWS 500 SPLIT.
19SPLIT
