Outdoor unit

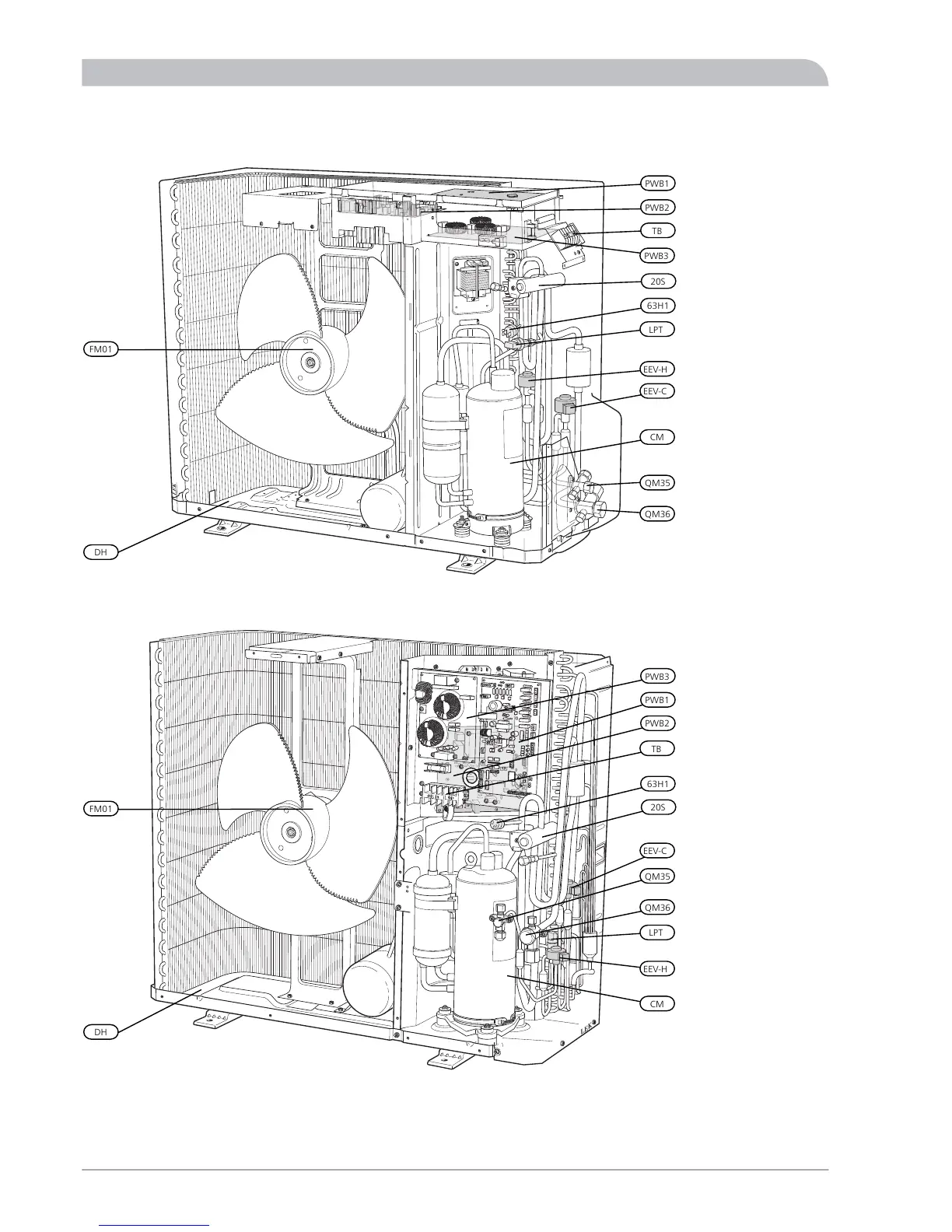

Component image, L8 SPLIT

LEK

EEV-H

FM01

QM35

EEV-C

LPT

QM36

PWB3

20S

PWB2

PWB1

63H1

Component image, L12 SPLIT

EEV-H

FM01

QM35

EEV-C

LPT

QM36

63H1

20S

PWB1

PWB2

PWB3

SPLIT82

Miscellaneous

Component positions

Default Chapter5
- Table of Contents5
- N] Supply Temp6
For Home Owners7
- Installation Data7
Information about the Installation Product Information9
- Features of SPLIT9
- Principle of Operation SPLIT9
Front Panel, Indoor Module10
- How to Use the Front Panel11
- Menu Types11
- Quick Movement11
- Key Lock11
Comfort Setting Heating General12
- Operating Status12
- Changing the Room Temperature Manually12
- Default Setting13
- Readjusting the Default Settings14
Comfort Setting Cooling General15
- Cooling Operated from the Outdoor Sensor in Operating Mode Autok15
- Controlling Cooling Mode Using the Room Sensor15
Comfort Setting Hot Water16
- Available Volume16
- Prioritizing16
- Extra Hot Water16
Maintenance18
- Checking the Safety Valves18
- Emptying the Coil in the Water Heater19
- Emptying the Vessel19
- Maintenance of L8 SPLIT/L12 SPLIT19
- Saving Tips19
Dealing with Comfort Disruption20
- Operating Mode "Add. Heat Only21
- Emergency Mode21
Alarm Indications22
- What Happens When an Alarm Appears on My System22
- Recommended Actions22
- Acknowledging Alarms22
For the Installer22
General Information for the Installer Transport and Storage23
- Supplied Components23
- Assembly24
- Dimensioning Expansion Vessel24
- Manual Shunting25
- Emptying the Vessel25
- Recommended Installation Order25
Pipe Installation General26
- System Requirements26
- Dimensions and Pipe Connections26
- Pump Capacity Diagram27
- Connecting HM 8-12 SPLIT to Tank27
- Connecting the Climate System28
- Connecting the Hot Water Heater28
- Connection of External Heat Source29
- Waste Exchanger Part29
- Connecting Refrigerant Pipes (Not Supplied)29
- Dockings33
Electrical Installation General37
- Electrical Components37
- Connecting the Supply39
- Miniature Circuit-Breaker39
- Temperature Limiter39
- Wws 300 Split, Wws 500 Split40
- Setting Max Power, Electrical Addition41
- Setting Max Boiler Temperature41
- EBV Board, Terminal and Wiring Diagram41
- Connecting the Outside Sensor41
- Connecting the Temperature Sensor Hot Water Charging41
- Connecting the Current Limiter41
- Connection of Centralised Load Control/Tariff42
- Connecting External Contacts42
- Alarm Outputs42
- Docking Specific Connection42
Start-Up and Inspection Preparations44
- Commissioning44
- Setting System Flow Heating44
- Setting System Flow Cooling44
- Commissioning HM 8-12 SPLIT Without L8 SPLIT/L1244
- SPLIT Connected44
- Checking External Addition with Internal Immersion Heater Blocked45
- Checking External Addition45
- SPLIT) with Internal Immersion Heater as Backup45
- Inspection of the Installation45
- Cleaning the Particle Filter45
- Secondary Adjustment45
- Checklist: Checks before Commissioning46
Miscellaneous Control47
- Display47
- Menu Types47
- Menu Management47
- Menu Tree48
- Main Menus56
- 1.0 [N] Hot Water Temp57
- N] Supply Temp57
- N] Supply Temp. 259
- N] Outdoor Temp60
- 5.0 [N] Heat Pump60
- 6.0 [N] Room Temperature61
- 7.0 [N] Clock61
- 8.0 [N] Other Adjustments62
- 9.0 [S] Service Menus63
- Alarm List68
Alarm List Acknowledging Alarms69
- Alarm with Automatic Reset69
- Temperature Limiter Alarm69
- HM 8-12 SPLIT Alarm69
- L8 SPLIT/L12 SPLIT Alarm70
- Hot Water Alarm72
- Supply Alarm72
- Outdoor Sensor Alarm73
- Circulation Pump Alarm73
Electrical Circuit Diagram HM 8-12 SPLIT74
- L8 Split80
- L12 Split80
Component Positions82
- Hm 8-12 Split82
- Ehzk 90 Split, Wws 300 Split, Wws 500 Split84
- Outdoor Unit86
Temperature Sensor Sensor Placement88
- Data for Sensor in L8 SPLIT/L12 SPLIT88
- Data for Sensor in HM 8-12 SPLIT89
Dimensions90
- Indoor Unit90
- Outdoor Unit94
Technical Specifications96
- Technical Specifications97
- Performance, HM 8-12 SPLIT and L8 SPLIT98
- Performance, HM 8-12 SPLIT and L12 SPLIT98
- Sound Pressure Levels99
- Standard Test, EN14511100
- Standard Test, L8 SPLIT100
- Standard Test, L12 SPLIT100
Energy Labelling101
- Information Sheet101
- Data for Energy Efficiency of the Package101
- Technical Documentation102
Accessories104
Safety Precautions Caution105
- Care105
- Especially for Units Intended for R410A106
Index107
- Ec Declaration of Conformity108
