Pipe installation
General
Pipe installation must be carried out in accordance with
current norms and directives. HM 8-12 SPLIT can work at
a temperature up to 65 C. For best savings, we recommend
that the climate system be dimensioned for max 55 C.
HM 8-12 SPLIT is not equipped with shut-off valves. These
must be installed outside the indoor module to facilitate
any future servicing.
HM 8-12 SPLIT can be connected to the radiator system,
floor heating system and/or fan convectors.
Overflow valve
NOTE
A free flow is required for all docking options, which
means that an overflow valve must be installed.
System requirements
This is required for minimum configuration:
For correct function the volume of the climate system must
comply with the installation requirements, see page 29.
If this is not fulfilled a volume vessel needs to be installed.
WPSK 40SPLIT/WTPSK 100SPLIT.
For more options, see the docking description on page 29.

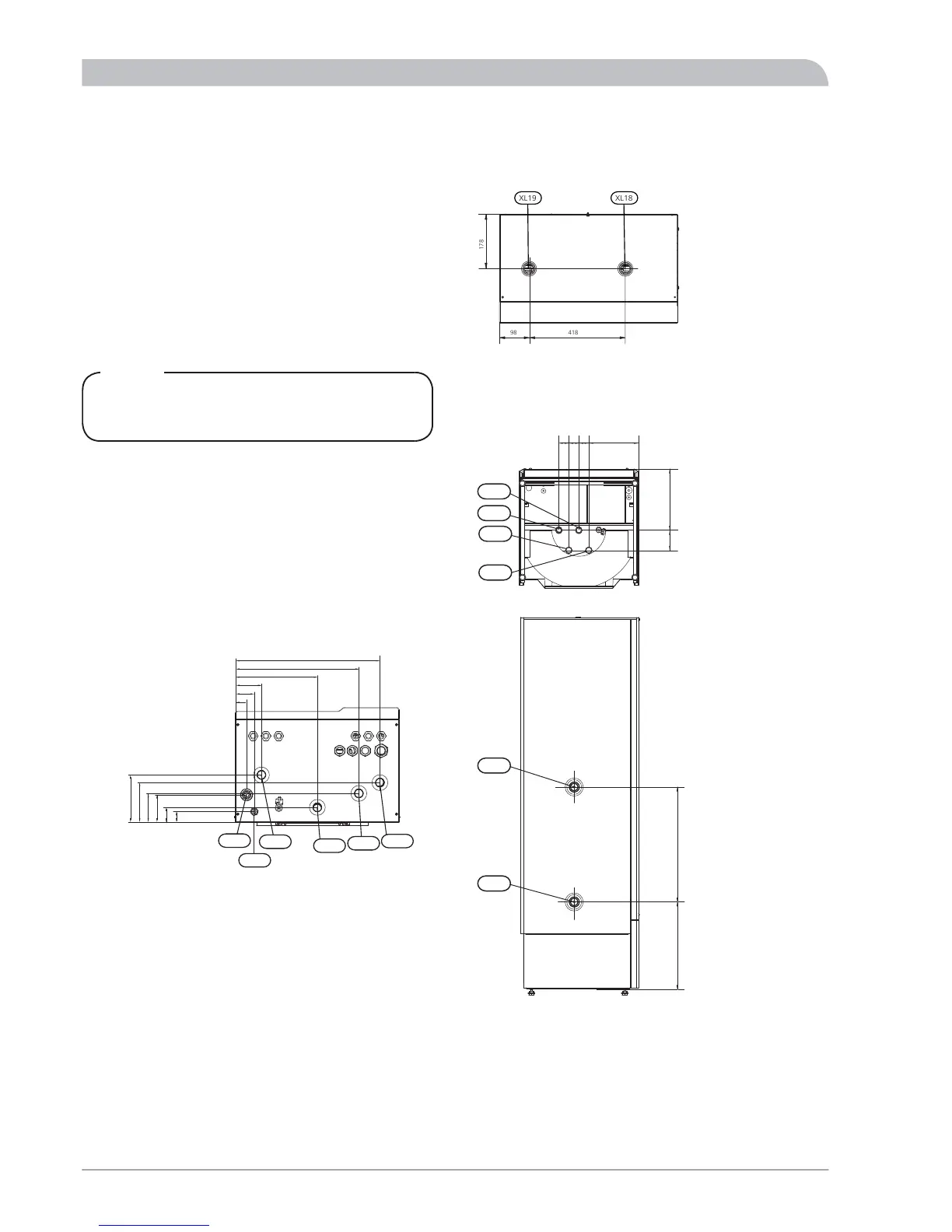

Dimensions and pipe connections
HM 8-12 SPLIT
Climate system, flow Ø 28 mmXL1
Climate system, return Ø 28 mmXL2
Liquid line refrigerant, flare 3/8''XL13
Gas line refrigerant, flare 5/8"XL14
Connection, CirculationXL18
Connection, CirculationXL19
EHZK 90 SPLIT
Connection, CirculationXL18
Connection, CirculationXL19
WWS 300 SPLIT
Connection, Cold waterXL3
Connection, Hot waterXL4
Connection, Docking, in heating mediumXL8
Connection, Docking, out heating mediumXL9
Connection, CirculationXL18
Connection, CirculationXL19
SPLIT22
For the Installer
Pipe installation
