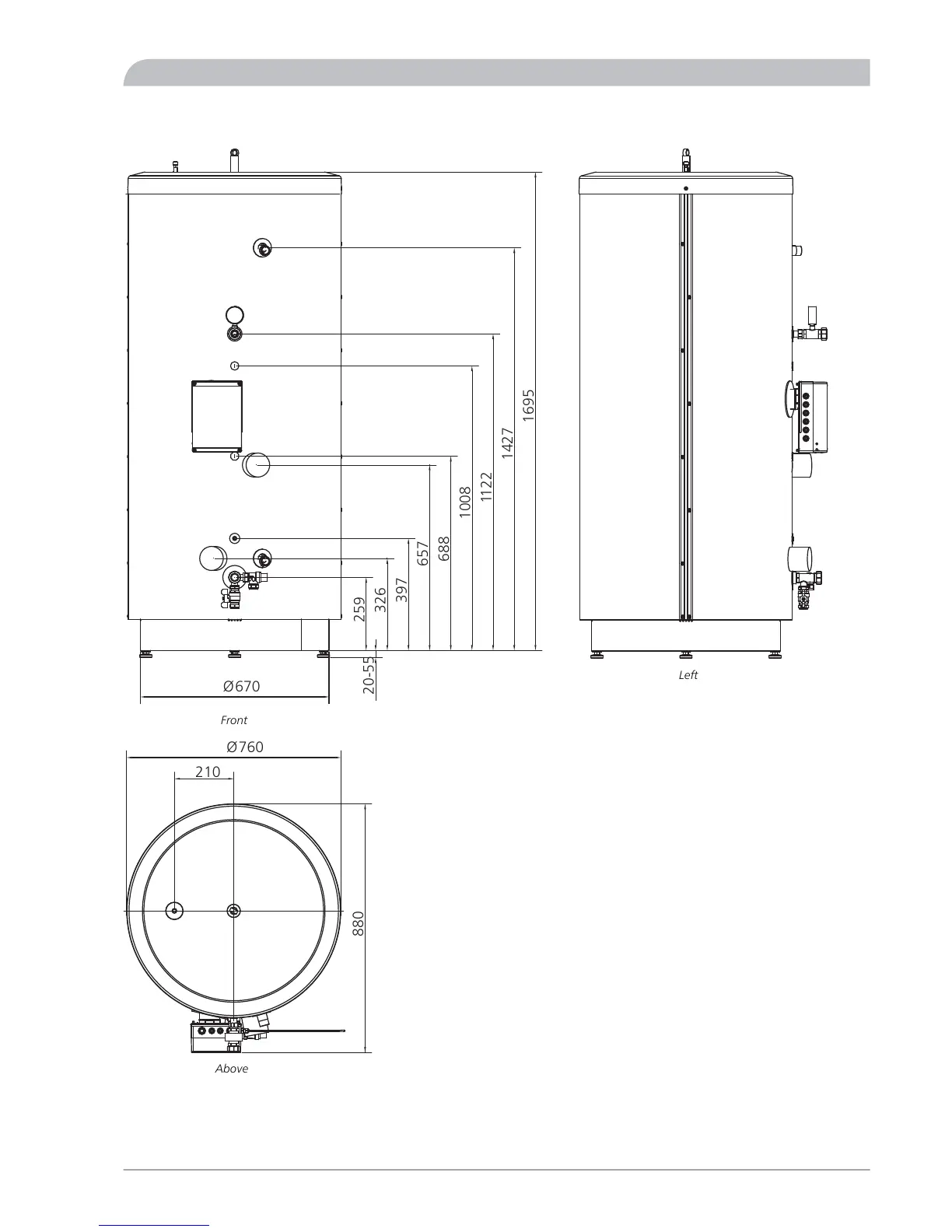

Water heater WWS 500 SPLIT

Ø670

259

326

397

657

688

1008

1122

1427

1695

20-55

Ø760

210

880

Above

Front

Left

89SPLIT

Miscellaneous

Dimensions
