3 Description
3.1 Condition on delivery
Packaged heat pump.
Separate package

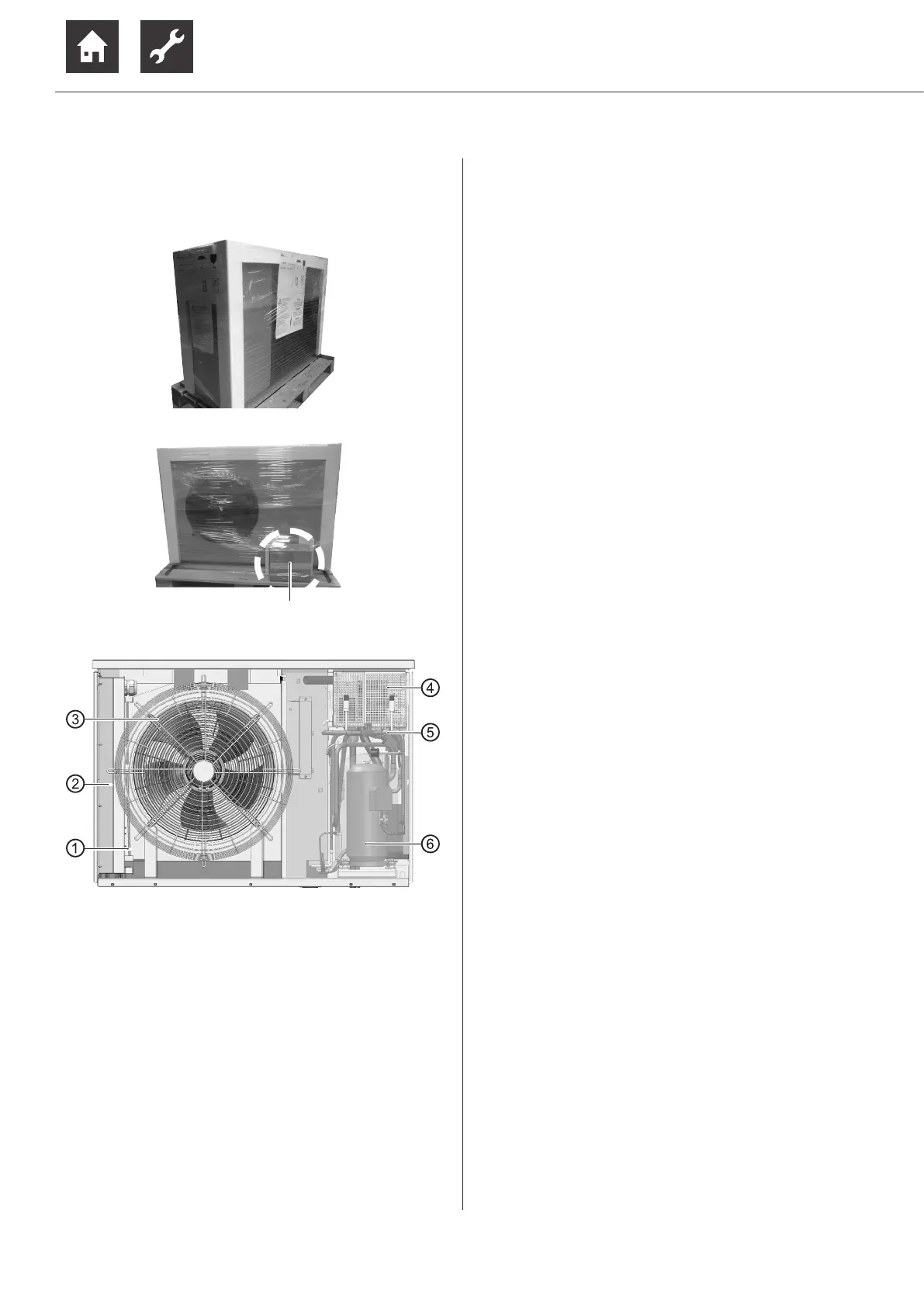

3.2 Design
3 Fan 4 Inverter
2 Switch box 5 Condenser
1 Evaporator 6 Compressor
Nameplate
The nameplate is attached at the following position on
the device
● on the rear
It contains the following information at the very top:
● Device type, item number
● Serial number
The nameplate also contains an overview of the most
important technical data.
Functionally necessary accessories
Only use genuine accessories made by the manufac-
turer of the device.
● Hydraulic station
● Hydraulic module
Additional accessories
● Wall duct with vibration decoupling
● Wall bracket
● Floor bracket
● Vibration decoupling
● Bu󰀨ertank
● Overowvalve
● Cladding for wall bracket
● Claddingforoorbracket
● Hydraulic connection line
● Extension board
● Room control panel
Ifthecableisnotlongenoughforfreeeldinstallation,
an extension set can be ordered.
3.3 Function
Liquidrefrigerantisevaporated(evaporator).Theen-
ergy for this process is ambient heat coming from the
outside air. The gaseous refrigerant is compressed
(compressor),whichincreasesthepressureandthus
also the temperature. The gaseous refrigerant at high
temperatureisliqueed(condenser).
In the process, the high temperature is transferred to
the heating water and used in the heating circuit. The
liquid refrigerant at high pressure and high tempera-
tureisexpanded(expansionvalve).Thepressureand
temperature drop and the process restarts.
The heated heating water can be used for domestic hot
water or for heating the building. The temperatures re-
quired and the use are controlled by the heat pump con-
troller. Any required reheating, support in screed drying
or increase in the domestic hot water temperature can
be carried out using an electric heating element, which
is activated by the heat pump controller as required.
The vibration decoupling (accessory)for the hydraulic
system prevents structure-borne sound and vibrations
frombeingtransferredtothexedpipesandthustothe
building.
