5.4 Installation
Preparation for installation, together with
the wall duct
Toconnecttheoutdoorunittotheindoorpart(hydraulic
unit), there must be a suitable opening for the wall duct
(accessory)oranopeninghastobecutoutinorderto
inserttheØ125mmwastewaterpipe(=wallductac-
cessory).
If the wall duct is not yet present, you can also use a
commercially available waste water pipe, length 1 m,
DN 125 in advance.
NOTE
Always comply with the installation plan for
the respective device type. Observe the mini-
mum clearances and protected zones.
Installation plan, dimension drawings and scopes
of protection for the respective device type.
CAUTION
In the air outlet area the air temperature is
approx. 5 K below the ambient temperature.
Under certain climatic conditions, an ice lay-
er can therefore develop in the air outlet ar-
ea.
Install the heat pump so that the air com-
ing from the air outlet opening is not dis-
charged into footpath areas.
NOTE
The surface in the air outlet area of the heat
pump must be permeable to water.
If the wall duct is not used, the bus cable must
be routed through a separate cable conduit,
separated from the other cables.
The other two cables also have to be routed
using empty conduits on site.
NOTE
The noise immissions of the heat pumps must
be taken into account in the respective instal-
lation plans for air/water heat pumps. The re-
spective regional regulations must be complied
with.
5.3 Unpacking and transport
Notes on safe transport
The device is heavy ( “Condensate line”,
page 29). There is a risk of injuries or material dam-
age if the device falls down or overturns.
There is a risk of cutting your hands on sharp edges of
the device.
► Wear cut resistant protective gloves.
The hydraulic connections are not designed for mechan-
ical loads.
► Do not lift or transport the device by the hydraulic
connections.
Transport the device with a pallet truck if possible, or
alternatively carry it
► Do not tilt the heat pump by more than 45°.
Transport with a pallet truck
► Transport the device to the installation site in
packaged form, and secured on a wooden pallet.
Unpacking:
1. Removeplasticlms.Makesurethatyoudonot
damage the device when doing this.
2. Dispose of the transport and packaging materi-
al in an environmentally sound manner and in ac-
cordance with local regulations.

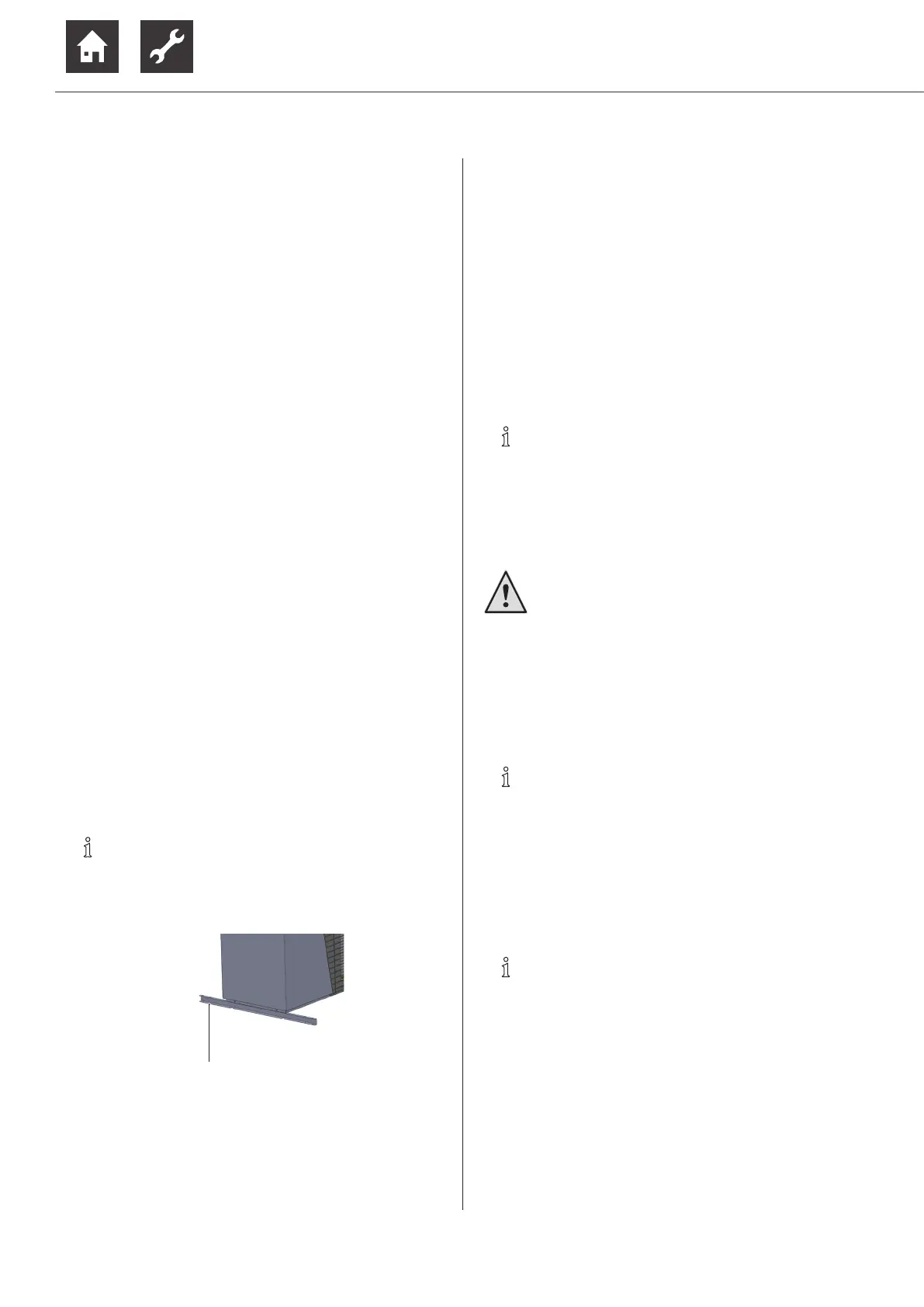

Carrying the device
NOTE
The device is delivered on a pallet with mount-
ing rails. The mounting rails can be used for
transport.
Mounting rail
