Using a suitable tool (e.g. a pipe wrench) to tighten
all connections one or two turns to achieve a tight
seal.
Do not overtighten. The rubber part of the com-
pensators must not become twisted (torsion). This
could cause malfunctions and even serious damage
to the unit.

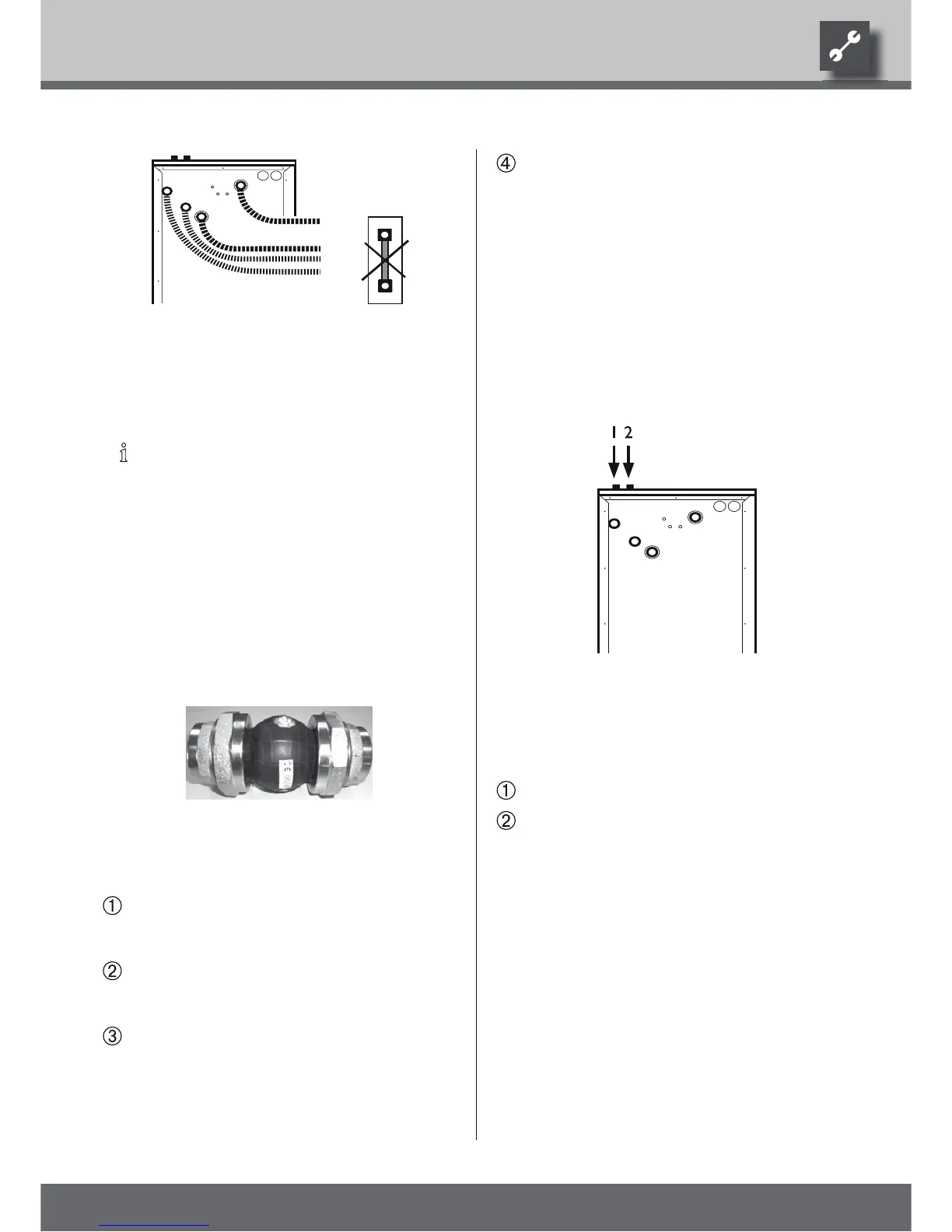

SAFETY COMPONENTS
The safety components are packed in the extra box.
The connections for the safety components are located
at the top rear on the outside of the unit.
1 Connection for heating
circuit safety component
2 Connection for heat source
safety component
Proceed as follows:
Install safety component for the heating circuit…
Install safety component for the heat source.
EXPANSION VESSELS
The expansion vessel for the heat source is integrated in
the unit.
The expansion vessel for the heating circuit and the cor-
responding cap valve are included in the scope of deliv-
ery. They must be integrated in the heating circuit on-
site in compliance with the applicable standards and di-
rectives.
A straight or extended hose arrangement for the vibra-
tion decoupler is not permitted.
NOTICE.
The vibration decouplers with the colored
markings are for the heating circuit.
INSTALLATION ON SIZE 2 UNITS
The included compensators must be used for connection
to the pipes:
The compensators also serve as vibration decouplers.
The compensators are packed in the extra box.
Proceed as follows:
We recommend installing a contamination filter
(screen size 0.9 mm) on the heat source inflow (re-
turn flow) connection…
Screw the compensators by hand onto the connec-
tions on the unit until they bear against the rubber
gasket…
Screw the compensators by hand onto the pipes of
the heating circuit and the heat source until they
bear against the rubber gasket…
