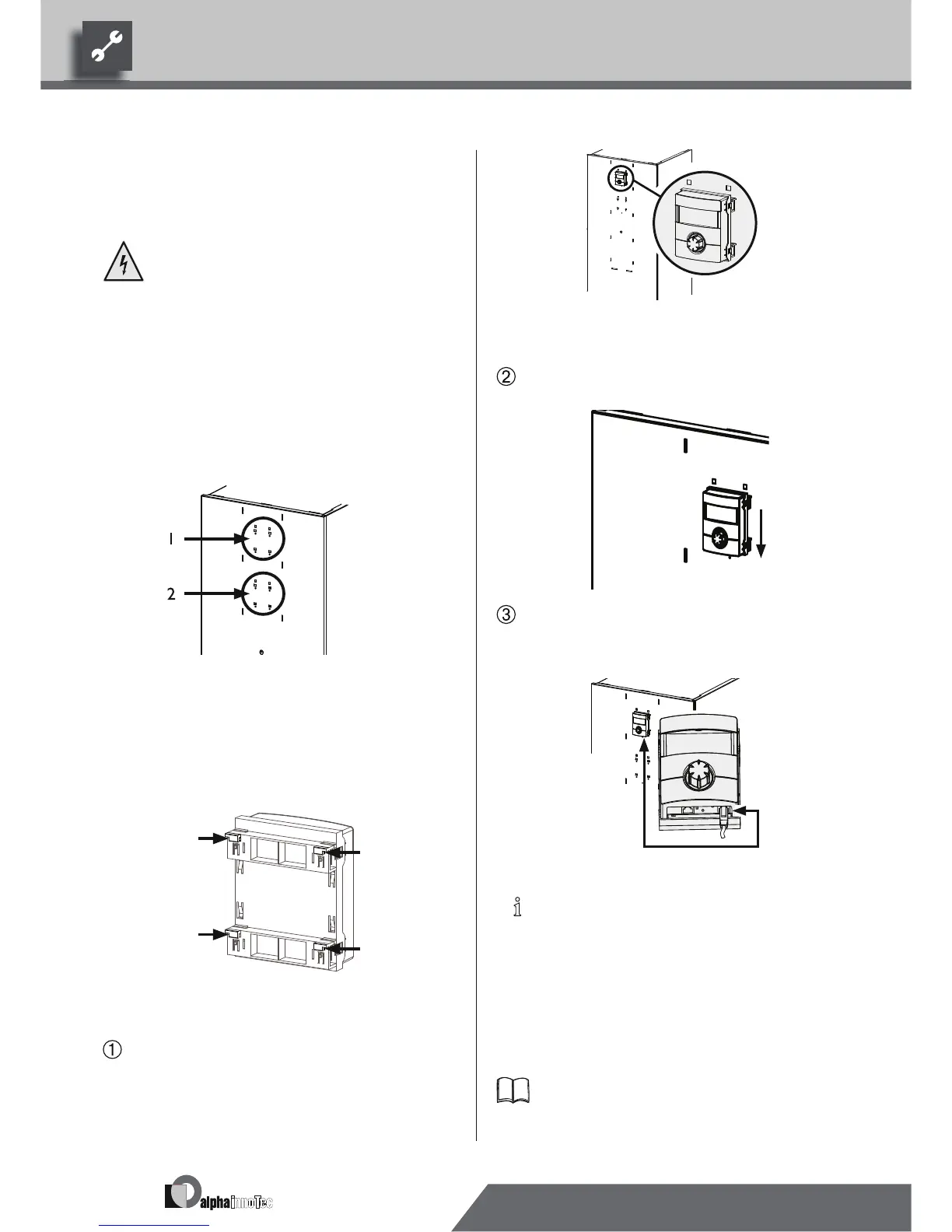

Installation of the control
element
DANGER!
Danger of fatal injury due to electric
current!
Electrical connections may be installed
only by qualied electricians.
Before opening the unit, disconnect the
system from the power supply and secure
it from being switched back on!
Situated at different heights in the front facade of the
unit are recesses (each with 4 recesses) for fastening the
control element:
1 four upper recesses
2 four lower recesses
4 hooks are located on the back side of the control
element and can be used to hang the control element on
the front facade of the unit:
Proceed as follows:
Hang the control element’s hooks on the recesses
of the front facade (either in the upper or lower
recesses)…
Example:
Control element in upper recesses
Push the control element down until it locks into
position…
Stick the heating and heat pump regulator’s control
cable into the right bushing on the bottom of the
control element…
NOTICE.
A connection to a computer or a network
can be installed via the left bushing on
the bottom of the control element, thus
allowing the heating and heat pump
regulator to be controlled remotely. One
pre-condition is that a screened network
cable (category 6) be installed through the
unit when installing the unit.
Operating manual for the heating and heat pump
regulator, version Qualified technician”, Web
server” section.
