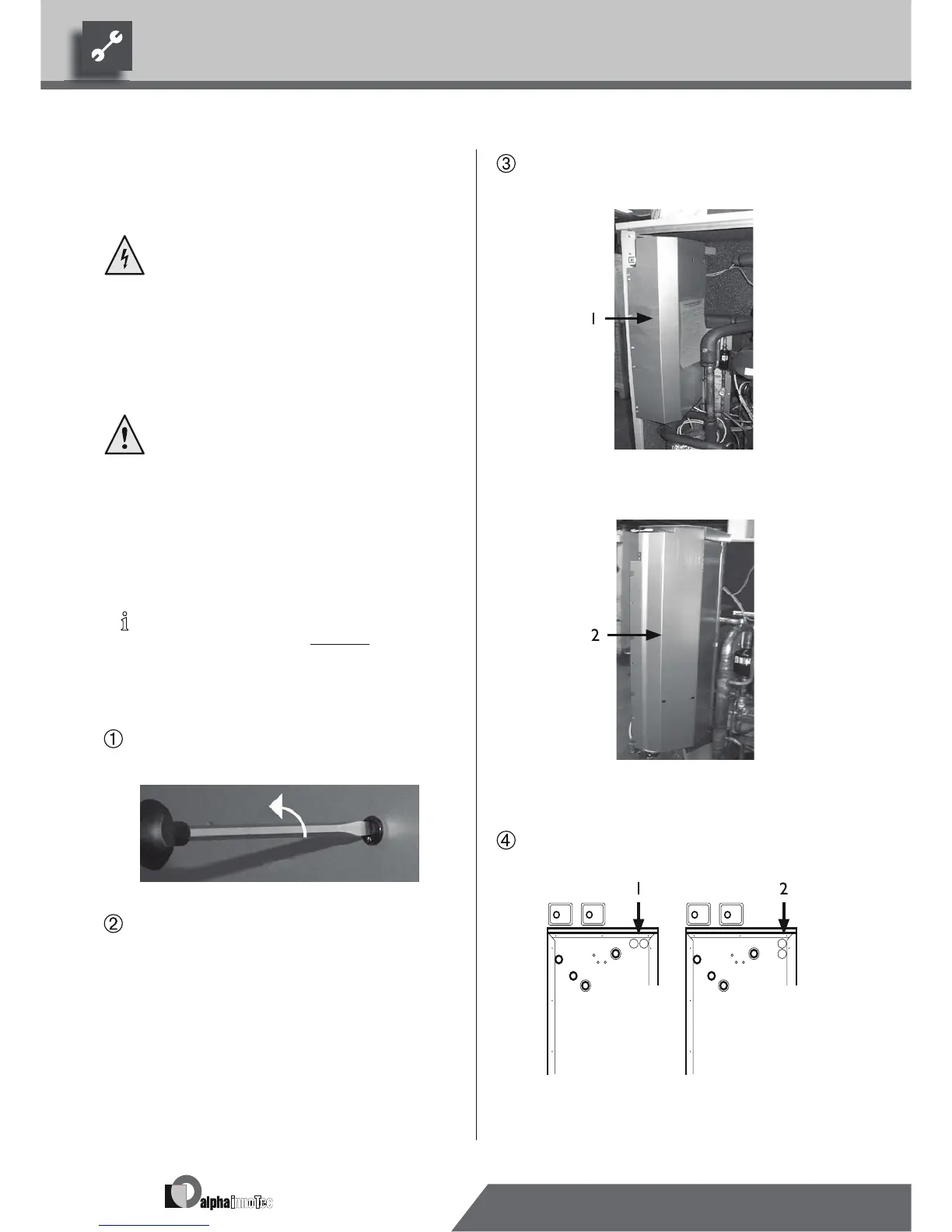

Open electric switch cabinet (inside the unit on the
left)…
1 Size 1:
Switch cabinet closed.
2 Size 2:
Switch cabinet closed.
Insert load and control leads in the openings provid-
ed on the back of the unit…
1 Cable duct size 1:
2 Cable duct size 2:
Electrical connections
Observe the following when performing all work:
DANGER!
Danger of fatal injury due to electric
current!
Electrical connections may be installed
only by qualied electricians.
Before opening the unit, disconnect the
system from the power supply and secure
it from being switched back on!
DANGER!
Observe the relevant EN-, VDE and/or
applicable local safety regulations during
the installation and during all electrical
work.
Comply with technical connection
requirements of the responsible power
supply company (if required by the
latter)!
NOTICE.
All live wires must be stripped before they
are installed in the cable duct of the switch
cabinets!
Proceed as follows:
Loosen quick-release screws for the front panel.
Turn counter-clockwise 90°
Lift front panel and set aside in a safe place…
