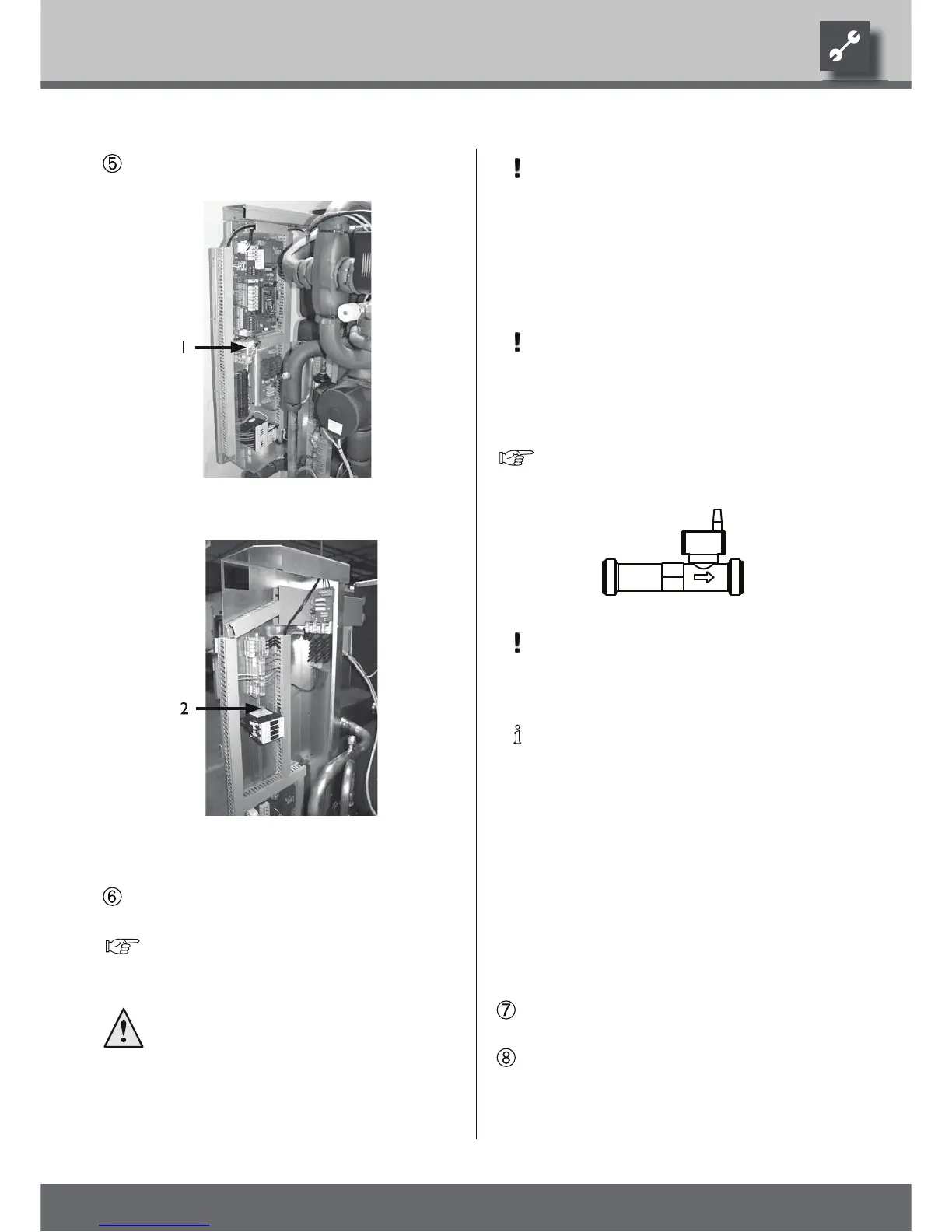

Lay load and control leads in the cable duct inside
the unit all the way to the switch cabinet…
1 Size 1:
Switch cabinet opened.
2 Size 2:
Switch cabinet opened.
Install electrical connections according to the ter-
minal diagram and the circuit diagrams…
„Terminal diagrams” and “Circuit diagrams” for
the respective model.
DANGER!
Install electric connections only according
to the terminal diagram and the circuit di-
agrams that apply to your model.
CAUTION.
Ensure clockwise rotary eld of the load
power supply.
– An incorrect rotary eld of the con-
denser during operation can cause se-
rious, irreparable damage to the con-
denser.
CAUTION.
Make sure to equip the power supply of
the heat pump with a 3-pole automatic
cut-out with at least 3 mm contact gap.
Note the level of the release current.
Overview “Technical data/scope of delivery”,
“Electric” section.
CAUTION.
The sensor cable for heat quantity
recording may not be shortened!
NOTICE.
The control element of the heat and heat
pump regulator can be a connection with
a computer or network using an network
cable designed for such pruposes, thus
allowing the heating and heat pump
regulator to be controlled remotely.
If such a connection is desired, install a
screened network cable (category 6, with
RJ-45 plug) through the unit when installing
the connections and run it through the
front facade of the unit, parallel to the
already-present heating and heat pump
regulator control cable.
After completion of all electrical installation work,
close the switch cabinet inside the unit…
Screw on the front panel of the unit if no further in-
stallation work inside the unit is to be performed
immediately.
