5.3 Unpackingandtransport
Notes on safe transport
The heating station and the module box are heavy
( “Technical data/Scope of supply” on page 24).
Thereisariskofinjuriesordamagetopropertyifthe
heating station falls or overturns or if the module box
falls.
► The heating station and module box must be
transported and installed by several persons.
► Secure the heating station during transport. Carry
the module box by the carrying lugs.
Thereisariskofcuttingyourhandsonsharpedgesof
the unit.
► Wear cut resistant protective gloves.
The hydraulic connections are not designed for
mechanical loads.
► Do not lift or transport the unit by the hydraulic
connections.
If the module box is tilted by more than 45°, compressor
oil runs into the cooling circuit.
► Do not tilt the unit with installed module box by
more than 45°.
Transport the unit preferably with a pallet truck,
alternatively with a handcart.
Transportwithapallettruck
► Transport the unit to the place of installation
packagedandsecuredonawoodenpallet.
Unpacking
NOTE
Iftheunitisnottransportedbyapallettruck:
Do not lift offthe pallet until after unpacking
and dismantling the housing panels.
1. Remove plastic lms. Ensure that you do not
damage the unit.
2. Dispose of the mounting bracket, transport and
packagingmaterialinanenvironmentallyfriendly
way according to local regulations.
3. Remove the lm from the plastic element of the
front panel in the place of installation.

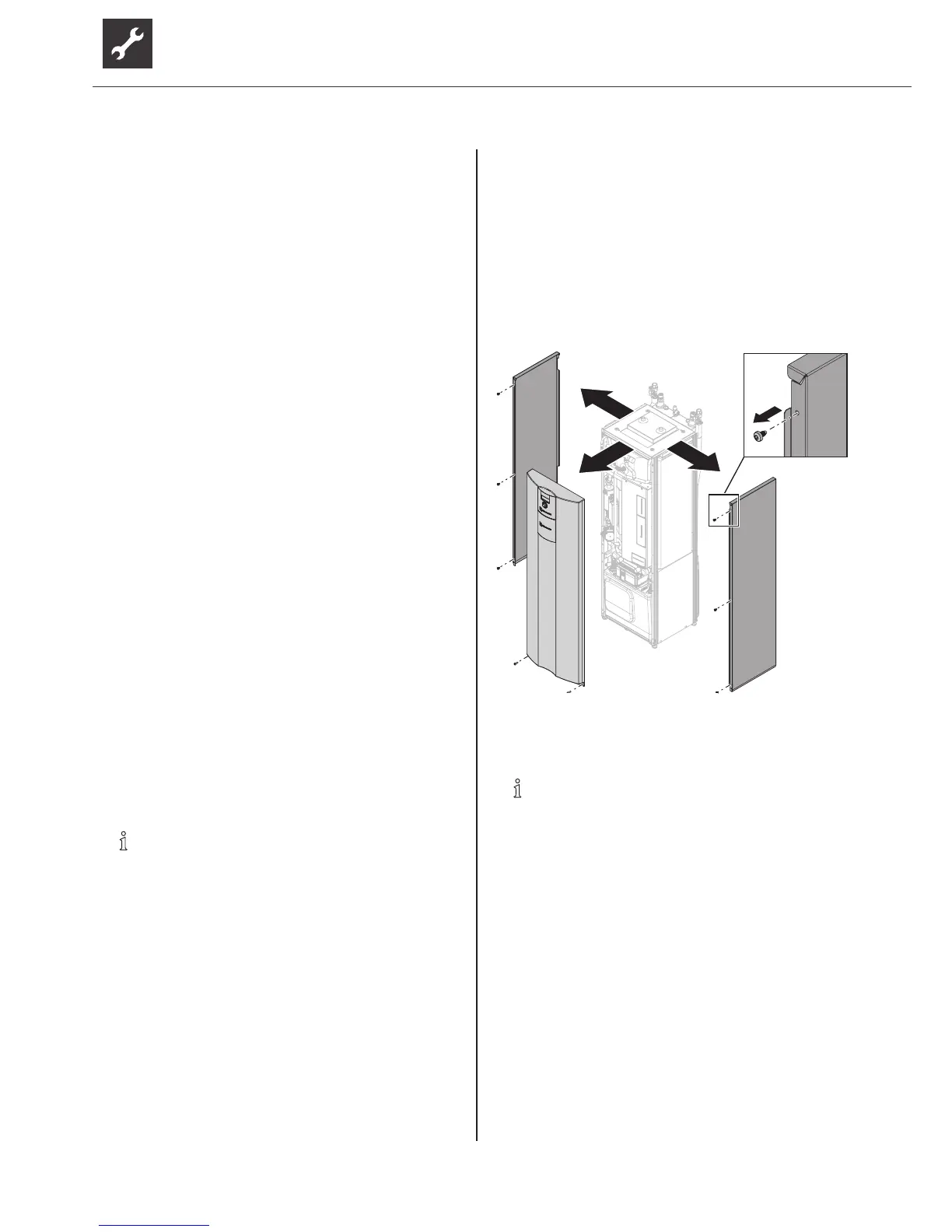

Dismantle housing panels for transport with
handcart or carrying the unit
Unitisunpacked( “Unpacking”onpage10).
1. To avoid damage to the housing panels:
–
Undo 2 screws at the bottom of the front panel.
–
Lift up the front panel and put down in safe
place.
–
Undo 3 screws in each side panel.
–
Lift up side panels and put down in safe place.
