Alpha-InnoTec WZS 42H3M User Manual

21
Subject to change without notice | 83056600cUK – Translation into English of the original German operating manual | ait-deutschland GmbH

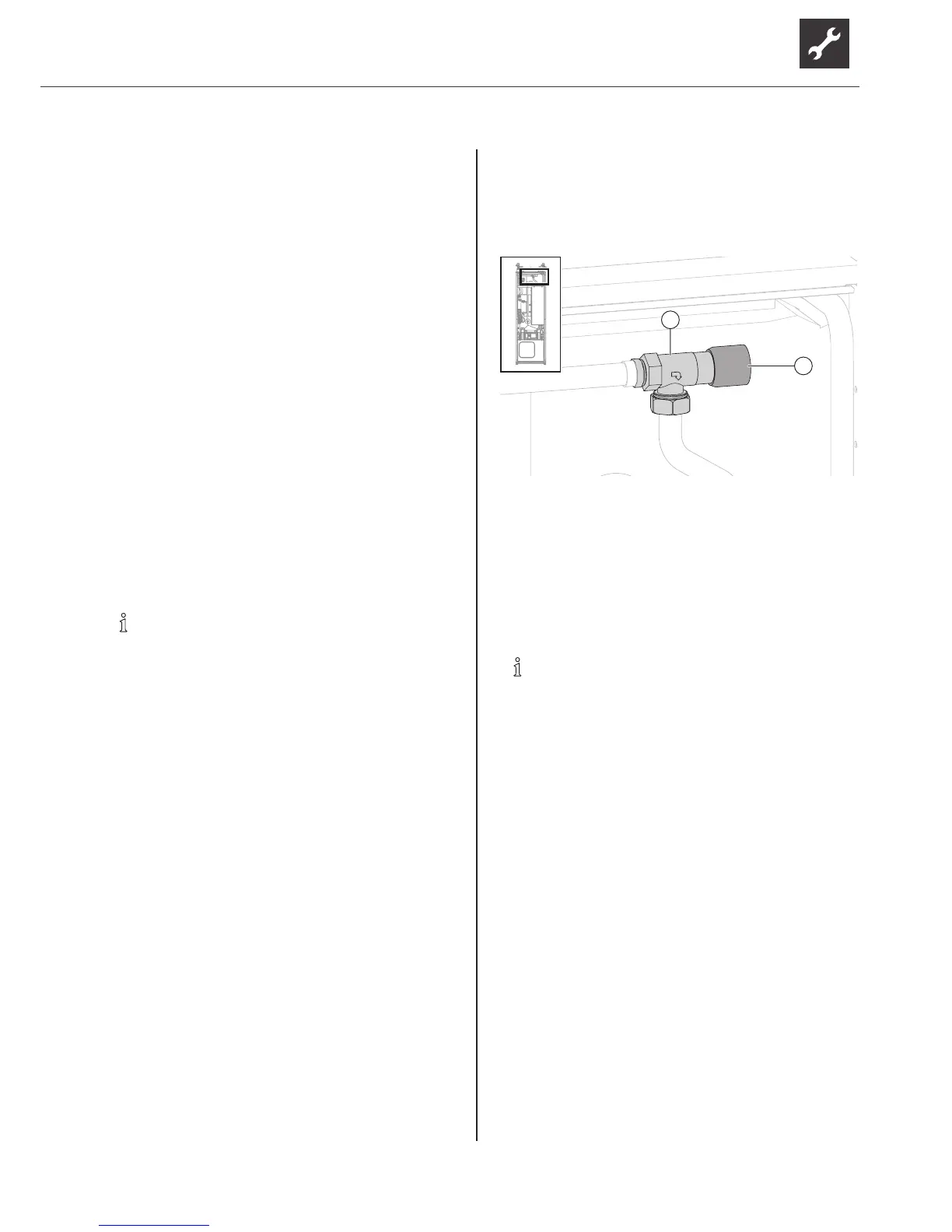

5. Turn theadjustingknob (2) oftheoverowvalve
(1) until the temperature drop between the ow
and return temperature is set as follows:
–
at heat source temperature 0 °C: 8 K
–
at heat source temperature 10 °C: 10 K
2
1
6. Open valves to heating circuit.
7. Reset the heating and heat pump controller.
10 Commissioning
NOTE
The rst lling and initial startup of the
domestichotwater tankmustbe carriedout
byqualiedpersonnel.
 Relevant planning & design data of the system is
documented in full.
 Thecompetentenergysupplierhasbeennotied
of operation of the heat pump system.
 System is air-free.
 Installationcheckusingthegeneralchecklisthas
been completed successfully.
1. Ensure that the following points are fullled
completely:
–
Right-hand (clockwise) rotating load infeed
eldisavailableatthecompressor.
–
Heating station is installed and mounted
according to this operating manual.
–
The electrical installation has been carried out
properly according to this operating manual
and local regulations.
8 Insulate hydraulic
connections
1. Insulate heating circuit, heat source and domestic
water pipes according to the local regulations.
2. Open shut-off devices.
3. Performapressuretestandcheckforleaks.
4. Insulate the internal piping of the module box with
the insulation material from the separate pack
included.
5. Insulate external piping on site.
6. Insulateallconnections,ttingsandpipes.
7. Insulate heat source so that it is vapour-diffusion
tight.
8. Insulate the heating circuit of units with cooling
vapour-diffusion tight too.
9 Settheoverowvalve
NOTE
● The activities in this section are only
necessaryforin-linetankintegration.
● Completetheworkstepsquickly,otherwise
the maximum return temperature can be
exceeded and the heat pump switches to
high-pressure fault.
● Turn the adjusting knob at the overow
valve to the right to increase the
temperature difference (the temperature
drop), turn it to the left to reduce it.
 System is running in heating mode (ideally in cold
condition).
1. In case of low heating curve: Set the system to
“Forced heating” ( operating manual of the
heating and heat pump controller).
2. Shut off valves to the heating circuit.
3. Ensurethatthetotalowisroutedviatheoverow
valve.
4. Read out the ow and return temperature at the
heating and heat pump controller ( operating
manual of the heating and heat pump controller).
