Chapter 2 Installation and Wiring
http://www.acdrive-china.com
13
Table 2-5 3018G/3022P～3055G/3075P main circuit terminals function
Terminal Function
R, S, T Three -phase 380V AC supply input terminals
P1,+ Reserved terminals for DC reactor
- Output terminal for DC negative bus
U, V, W Three -phase AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.

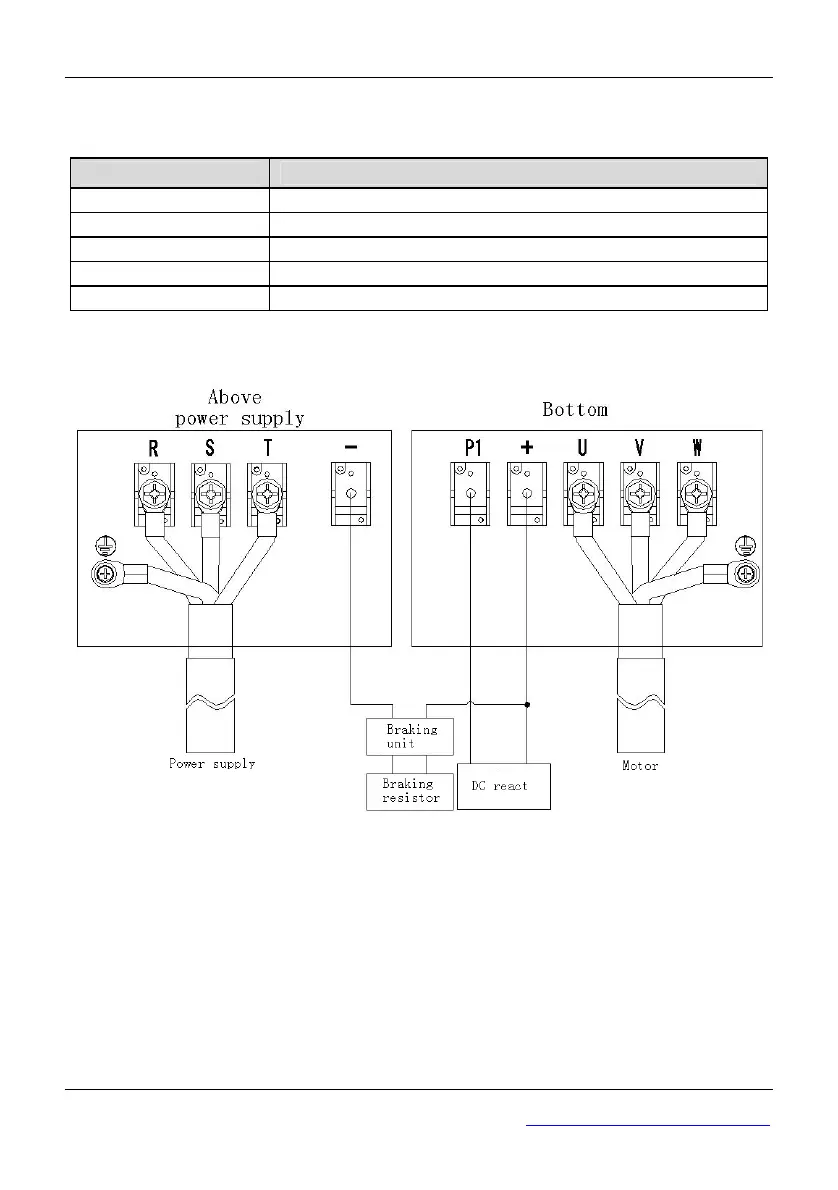

Fig 2-7 3160G/3185P～3355G/3400P Main Circuit Wiring
