Chapter 2 Installation and Wiring
http://www.acdrive-china.com
14

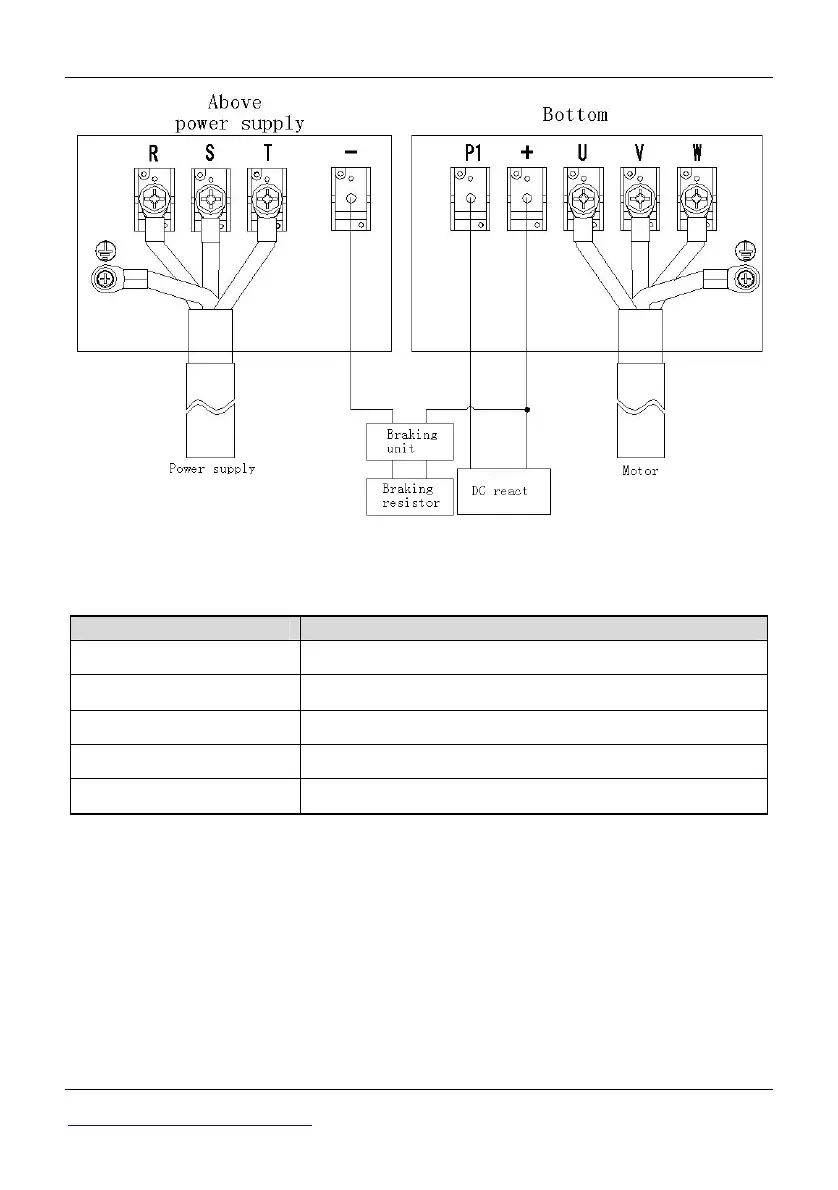

Fig 2-8 3400G～3500G Main Circuit Wiring
Table 2-6 3160G/3185P～3500G main circuit terminals function
Terminal Function
R, S, T Three -phase 380V AC supply input terminals
P1,+ Reserved terminals for DC reactor
- Output terminal for DC negative bus
U, V ,W 3AC output terminals
PE Earth terminal
Attention: When DC reactor is not connected, please short “P1” and “+/B1” with
supplied copper bar.
