Chapter 5 Parameter Introductions
http://www.acdrive-china.com
141

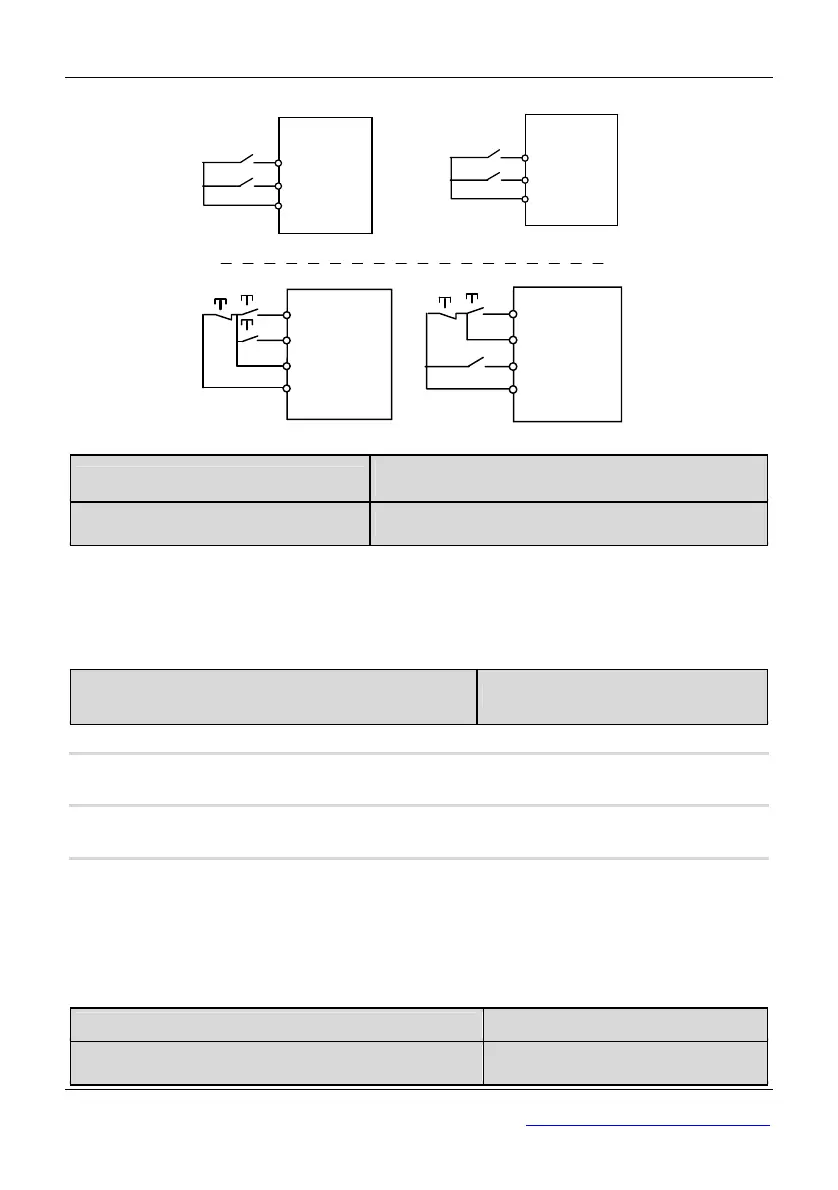

Fig.2
F/R
RUN
COM
Fig. 1
REV
FWD
COM
Fig.4
F/R
HLD
COM
RUN
SB1
SB2
K
Fig. 3
HLD
REV
COM
FWD
SB1
SB2
SB3
2-wire control mode 1
2-wire control mode 2
3-wire control mode 1
3-wire control mode 2
P3.10 Terminal UP/DN rate
Range: 0.01～99.99Hz/s【1.00Hz/s】
P3.11 UP/DN reference amplitude
Range:0.00～Frequency upper limit【10.00Hz】
Note:
◆Terminal UP/DN rate is used to define the change rate of reference frequency that is
changed by terminal UP/DN. UP/DN reference amplitude used to define that the span
of reference frequency is changed by terminal UP/DN.
P3.12 Digital frequency UP/DOWN save
selection
Range: 0～2【2】
0: Receive STOP, UP/DN reference is reset to zero;
1: Receive STOP, UP/DN reference is not reset to zero, and not saved when power
loss;
2: Receive STOP, UP/DN reference is not reset to zero, and saved when power loss. If
P0.01is set to 1, P0.00 will be saved when power loss
Note:
◆UP/DOWN running is shown in Fig. 5-3-3 and Fig. 5-3-4.
◆When P0.01is set to 1: if P3.12 is set to 2 , the changed value of P0.00 by keyboard
digital encoder will be saved when power loss. Otherwise, the changed value won’t
be saved. For details, please refer to P0.00.
P3.13 Define Functions of terminal DO
Range: 0～30【0】
P3.14 Terminal Y1 function definition
Range: 0～30【1】
