P3.20Frequency detection threshold
(FDT) lag
Range: 0.00～10.00Hz【1.00Hz】
Note:
◆When the output frequency reaches a certain preset frequency ( frequency detection
threshold), Y terminal output will be valid. We called the preset frequency FDT level.
In the dropping of output frequency, Y terminal output keep valid, until the output
frequency drops below another certain frequency of FDT level, which is called release
frequency (FDT1 level-FDT1 lag), as shown in Fig. 5-3-9.
FDT lag
Time
Time
FDT level
Output Freq.
FDT signal

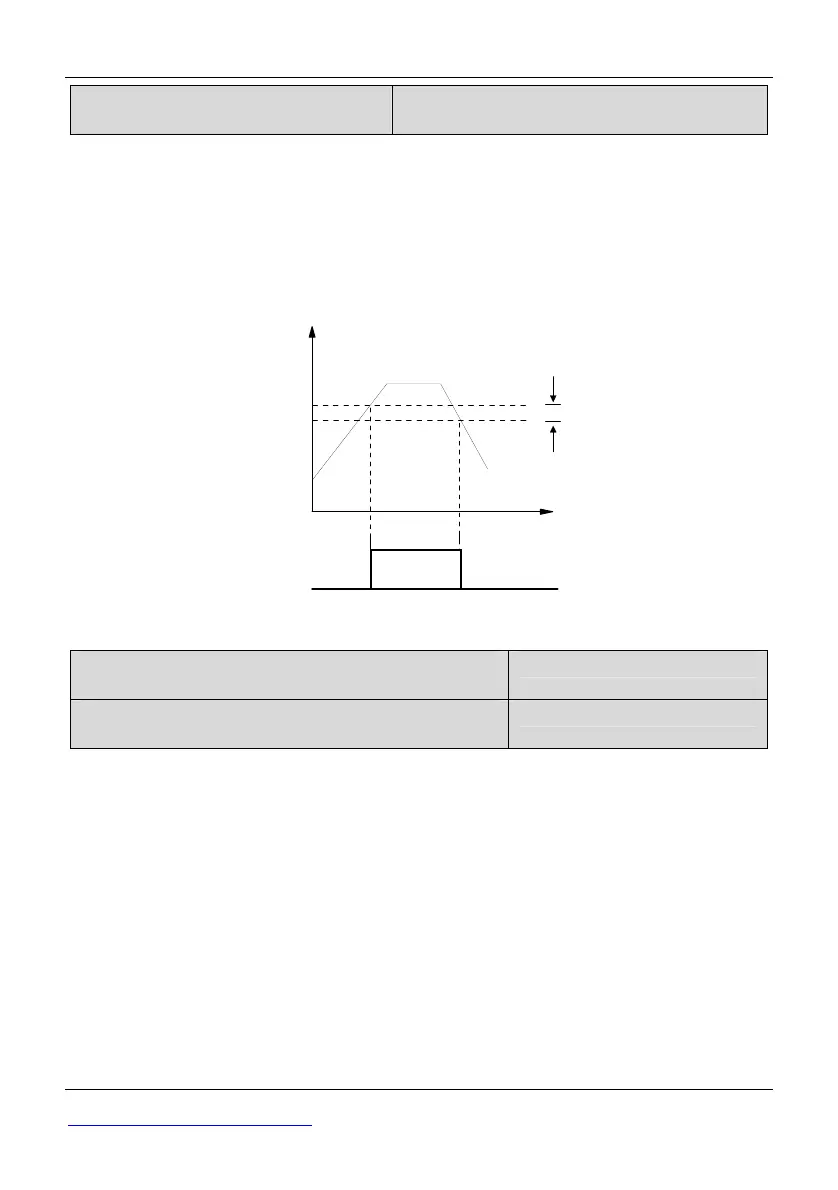

Fig. 5-3-9 FDT level and lag diagram
P3.21 Frequency upper limit arriving output delay
time
Range: 0.0～100.0s【0.0s】
P3.22 Frequency lower limit arriving output delay
time
Range: 0.0～100.0s【0.0s】
Note:
◆For 35R5GB/37R5PB and the above models: function of P3.13
～ P3.17 will be D0,
Y1,Y2. Relay 1and relay 2 outputs have been set as 4 (FDTH: Frequency upper limit
arriving) or 5 (FDTL: Frequency lower limit arriving).
◆For 3004GB and the below models: function of P3.13 and P3.16 will be D0. Relay
output has been set as 4 (FDTH: Frequency upper limit arriving) or 5 (FDTL:
Frequency lower limit arriving).
◆Usually, this Function is valid to avoid load wobbling and signal instability when
several motors switch between commercial frequency and conversion frequency, as
shown in Fig. 5-3-10.
