Chapter 5 Parameter Introductions

http://www.acdrive-china.com

147

Operating Freq.(Hz)

Frequency

upper limit

FDTH

Time

FDTL

Frequency

lower limit

FDTH Delay time EDTL Delay time

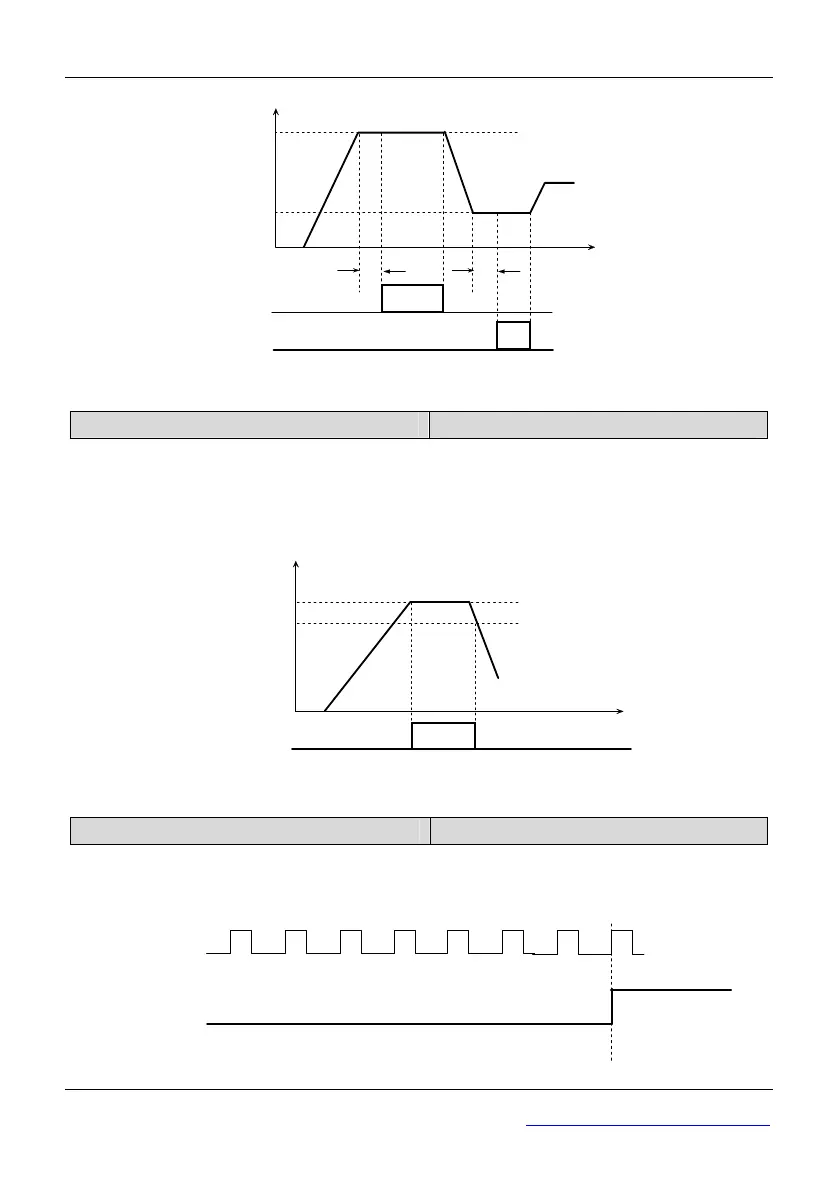

Fig. 5-3-10 FDTH/FDTL diagram

P3.23 Torque detection reference

Range: 0.0～200.0%【100.0%】

Note:

◆If motor torque is equal to or more than the range of torque detection reference, the

output of terminal is valid. If the ac motor torque is less than 80% of reference, the

output of terminal is invalid, as shown in Fig. 5-3-11.

Output torque

Torque detection

reference

Torque arriving

detection signal

Time

Torque detection

reference*80%

Torque arriving

detection

Fig. 5-3-11 Torque arriving detection threshold

P3.24 Preset Count value

Range: 0～9999【0】

Note:

◆If the counting value is bigger than the value defined by P3.24, the output of terminal

is valid, as shown in Fig. 5-3-12.

12345678

Xi Input

Counting value

arriving output

Preset Counting value
