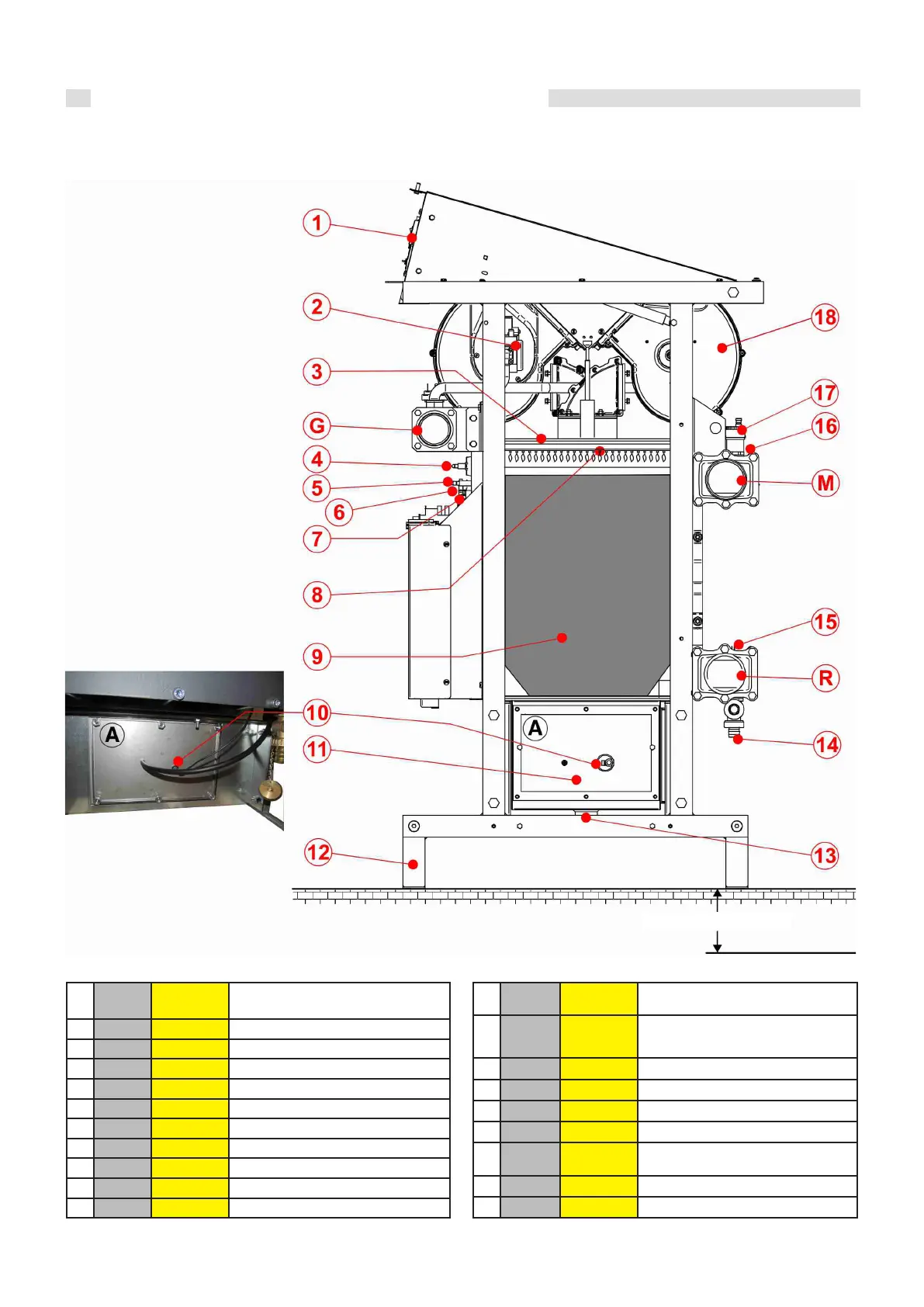

Alpha ARES 150 Tec - Internal View with Indications of Main Components

10
Technical characteristics and dimensions
2.2 INTERNAL VIEW WITH INDICATIONS
OF MAIN COMPONENTS
N°
Error
code
Wiring
diagram
Description
1 HSCP CONTROL PANEL
2 VG GAS VALVE
3 BURNER COVER
4 E. ACC. IGNITION
5 E. RIL. IONISATION
6 SR ROOM NTC PROBE
7 TL LIMIT THERMOSTAT
8 BURNER
9 SILICON ALUMINIUM EXCHANGER
10 SL LEVEL SENSOR
N°
Error
code
Wiring
diagram
Description
11
CONDENSATION COLLECTION PAN /
FLUE FITTING
12 FRAME
13 CONDENSATE DRAIN OUTLET
14 DRAINING VALVE
15 SRR RETURN GLOBAL NTC
16 SMG
PROBE
FLOW GLOBAL NTC
17 AUTOMATIC AIR BLEED VALVE
18 FAN
KEY
Min. depth 100 mm
