VENTING REQUIREMENTS
VENTING REQUIREMENTS – VERTICAL / HORIZONTAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT SYSTEM
(FOR BOTH PROPANE AND NATURAL GAS)

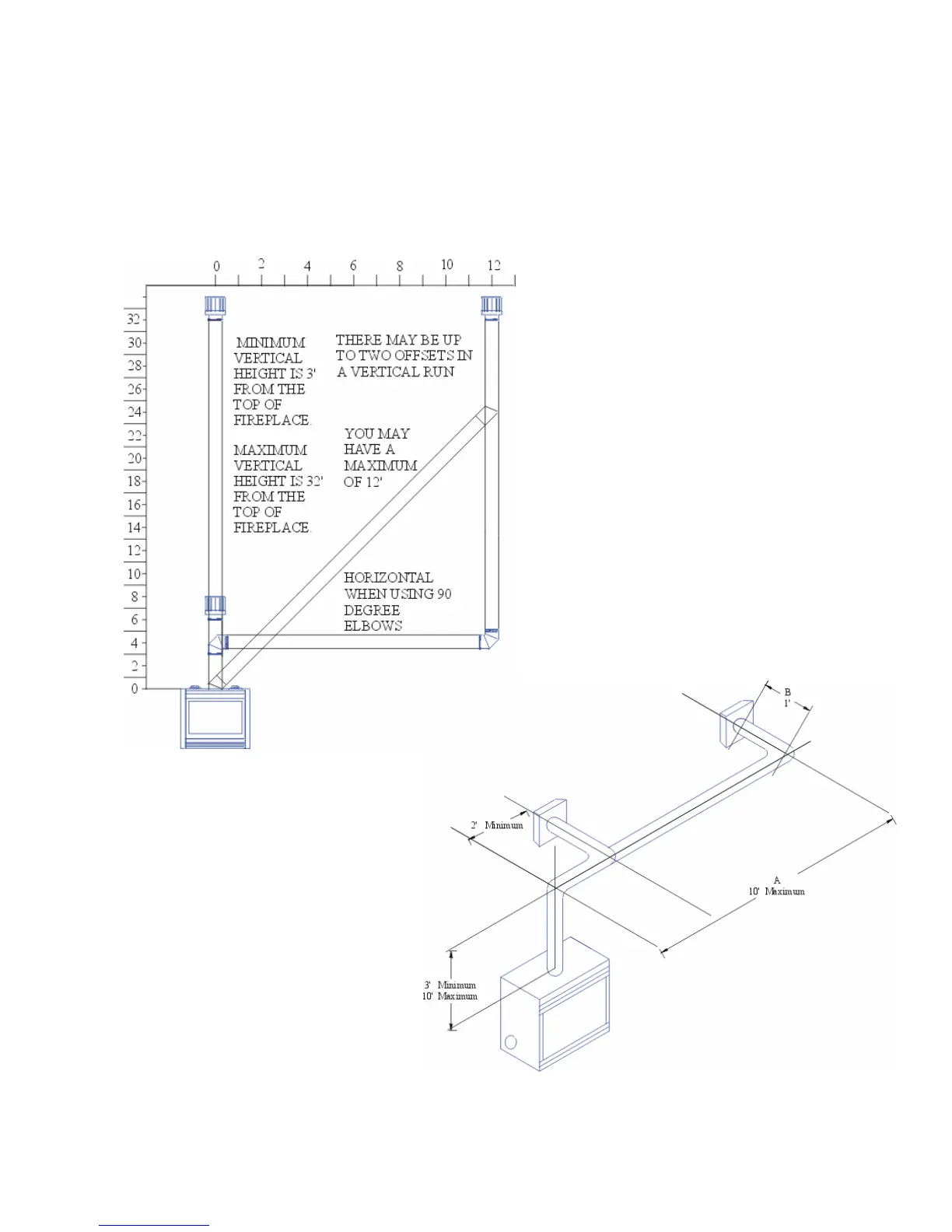

The diagrams show all allowable combinations of straight vertical, offset to vertical, and offset to horizontal termina-
tions with Simpson Dura–Vent systems. Maximum of two 45 deg. elbows are allowed.
If length “B” is increased, length “A” must
be decreased by a corresponding amount.
•
Horizontal venting must be
supported every 3 feet
•
Firestops are required at each
floor level and whenever
passing through a wall.
