Alpine CDA-7893R User Manual

37-EN

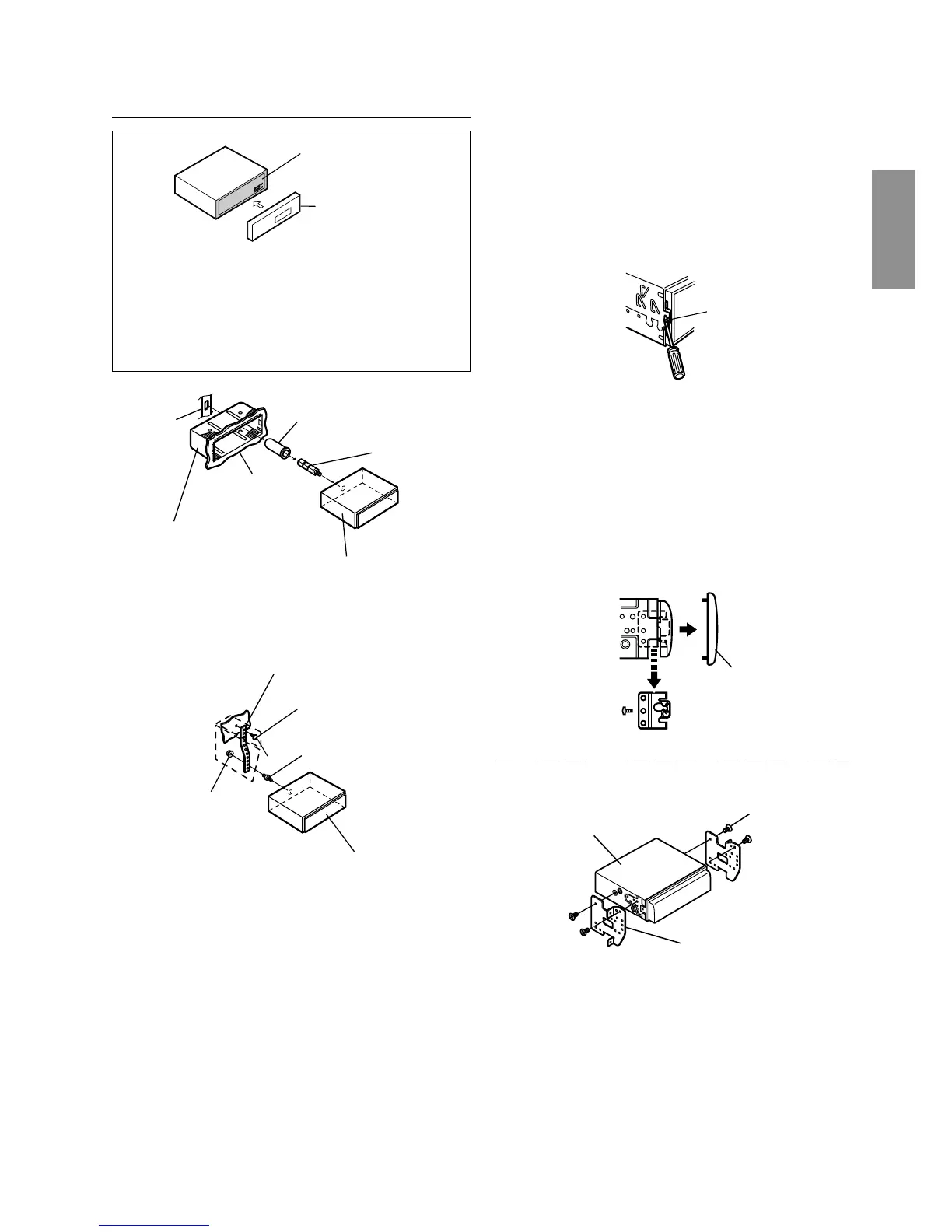

Installation
Caution
When you install this unit in your car, do not remove the
Detachable Front Panel.
If the Detachable Front Panel is removed during installation,
you might press too hard and warp the metal plate that holds it
in place.
1
Slide mounting sleeve from main unit (see "Removal"
on this page). Slide the mounting sleeve into the
dashboard.
2
When your vehicle has the Bracket, mount the long hex
bolt onto the rear panel of the CDA-7894RB/CDA-
7893R and put the Rubber Cap on the hex bolt. If your
vehicle does not have the Mounting Support, reinforce
the head unit with the metal mounting strap (not
supplied). Connect all the leads of the CDA-7894RB/
CDA-7893R according to details described in the
CONNECTION section.
NOTE
For the screw
*
, provide a proper screw to the chassis installing
location.
Metal plate
Detachable
Front panel
Dashboard
Rubber Cap
(Included)
Bracket
Mounting sleeve
(Included)
Hex Bolt
(Included)
CDA-7894RB/CDA-7893R
∗
Metal Mounting Strap
Screw
Bolt Stud
Hex Nut (M5)
CDA-7894RB/CDA-7893R
3 Slide the CDA-7894RB/CDA-7893R into the
dashboard. When the unit is in place, make sure the
locking pins are fully seated in the down position. This
can be done by pressing firmly in on the unit while
pushing the locking pin down with a small screwdriver.
This ensures that the unit is properly locked and will
not accidentally come out from the dashboard. Install
the Detachable Front Panel.
Removal
1 Remove the detachable front panel.
2 Use a small screwdriver (or similar tool) to push the
locking pins to the "up" position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.
3 Pull the unit out, keeping it unlocked as you do so.
<JAPANESE CAR>
Front frame
Screws (M5 × 8)
(Included)
Mounting Bracket
CDA-7894RB/CDA-7893R
Lock pin
