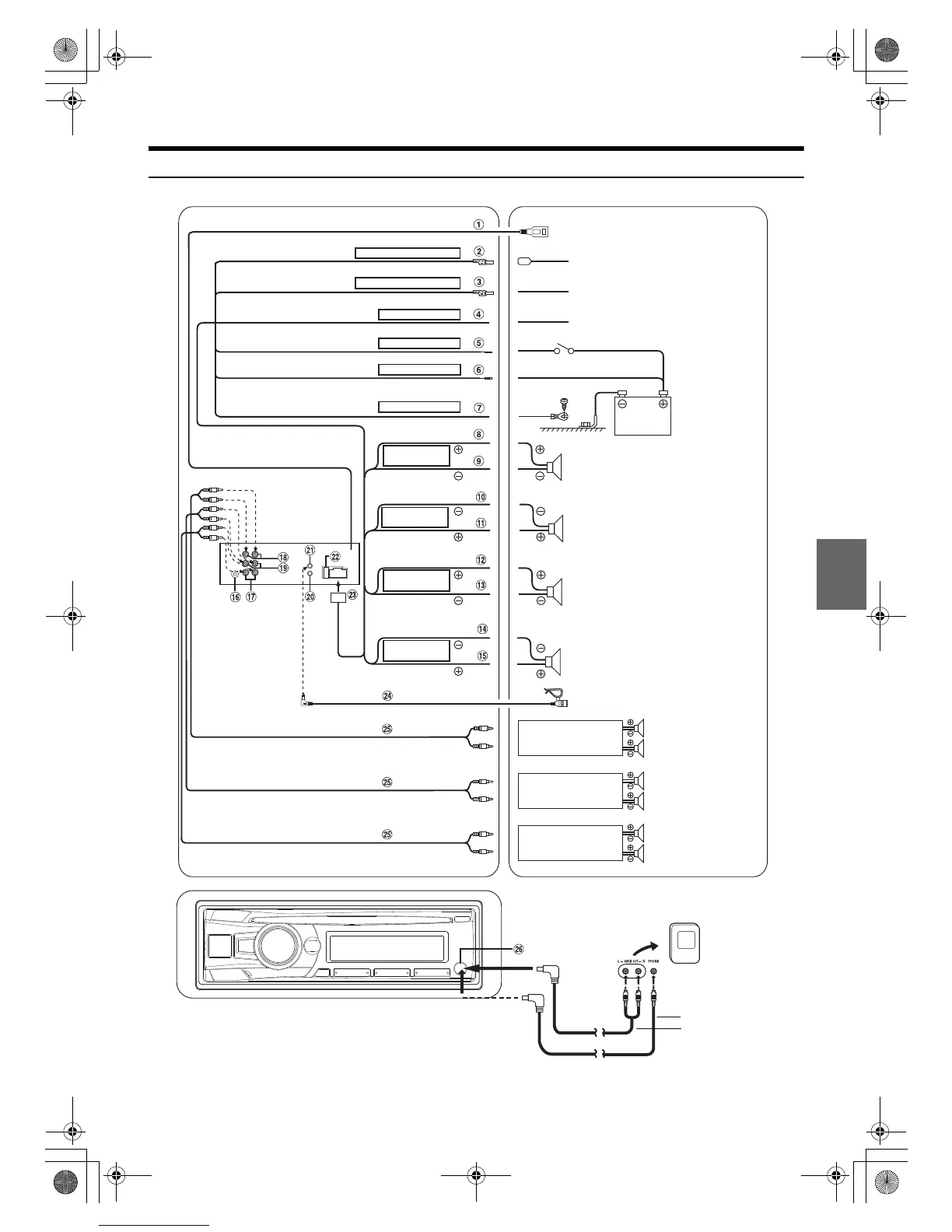

Alpine CDE-154EBT - Wiring Connections Diagram; Power and Speaker Connections; Audio and Accessory Connections

43-EN
Connections
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
ILLUMINATION
REMOTE TURN-ON
IGNITION
GND
POWER ANT
BATTERY
Microphone
(Blue/White)
To amplier
To the instrument cluster illumination lead
(Red)
To power antenna
Portable player, etc.
or
Optional adapter
cable (RCA pin
plugs [red,white]
3.5ø miniplugs) or
(3.5ø miniplugs).
To USB Memory or iPod/iPhone
(Black)
Ignition Key
(Blue)
(Orange)
(Yellow)
Battery
Speakers
(Green)
Rear Left
(Green/Black)
(White)
Front Left
(White/Black)
(Grey/Black)
Front Right
(Grey)
(Violet/Black)
Rear Right
(Violet)
Rear Left
Amplier
Rear Right
Front Left
Amplier
Front Right
Amplier
Subwoofers
00ALPINE.book Page 43 Friday, November 1, 2013 11:30 AM
