24-EN
• Do not use a tweeter without the HPF on or set to a low frequency, as it
may cause damage to the speaker due to the low frequency content.
• You cannot adjust the crossover frequency higher than the HPF or lower
than the LPF.
• Adjustment should be made according to the recommended crossover
frequency of the connected speakers. Determine the recommended
crossover frequency of the speakers. Adjusting to a frequency range
outside that recommended may cause damage to the speakers.
For the recommended crossover frequencies of Alpine speakers, refer to
the respective Owner’s Manual.
We are not responsible for damage or malfunction of speakers caused by
using the crossover outside the recommended value.
Switching the 2WAY/3WAY system mode
About the 2WAY/3WAY system mode
1 Press the Y and f at the same time.
Note
• In this case, the device will be muted.
2Turn the Rotary encoder to select the desired system
mode, and then press ENTER.
Note
• When the system mode is changed, the setting items for X-OVER
are displayed. Please follow the instructions of “Adjusting the
Crossover Settings (X-OVER)” on page 19 to made the setting.
3 After setting, turn the Rotary encoder to select DONE, and
then press ENTER.
“TURN ACC OFF AND ON” will be displayed.
4 Switch the ignition key to ACC OFF.
Depending on the response characteristics of the speaker,
care should be taken when you switch the 2WAY/3WAY
system, as speaker damage may result.
5 Switching the ignition key from ACC OFF to ON.
The change is saved.
Notes
• If you skip the 4th and the 5th step, the setting results will not be
saved and unit will return to previous mode.
• While playing back music after the vehicle’s ignition is turned off
(STAY ON mode), you cannot adjust the 2WAY/3WAY mode (refer
to “Setting the stay on mode” on page 29).

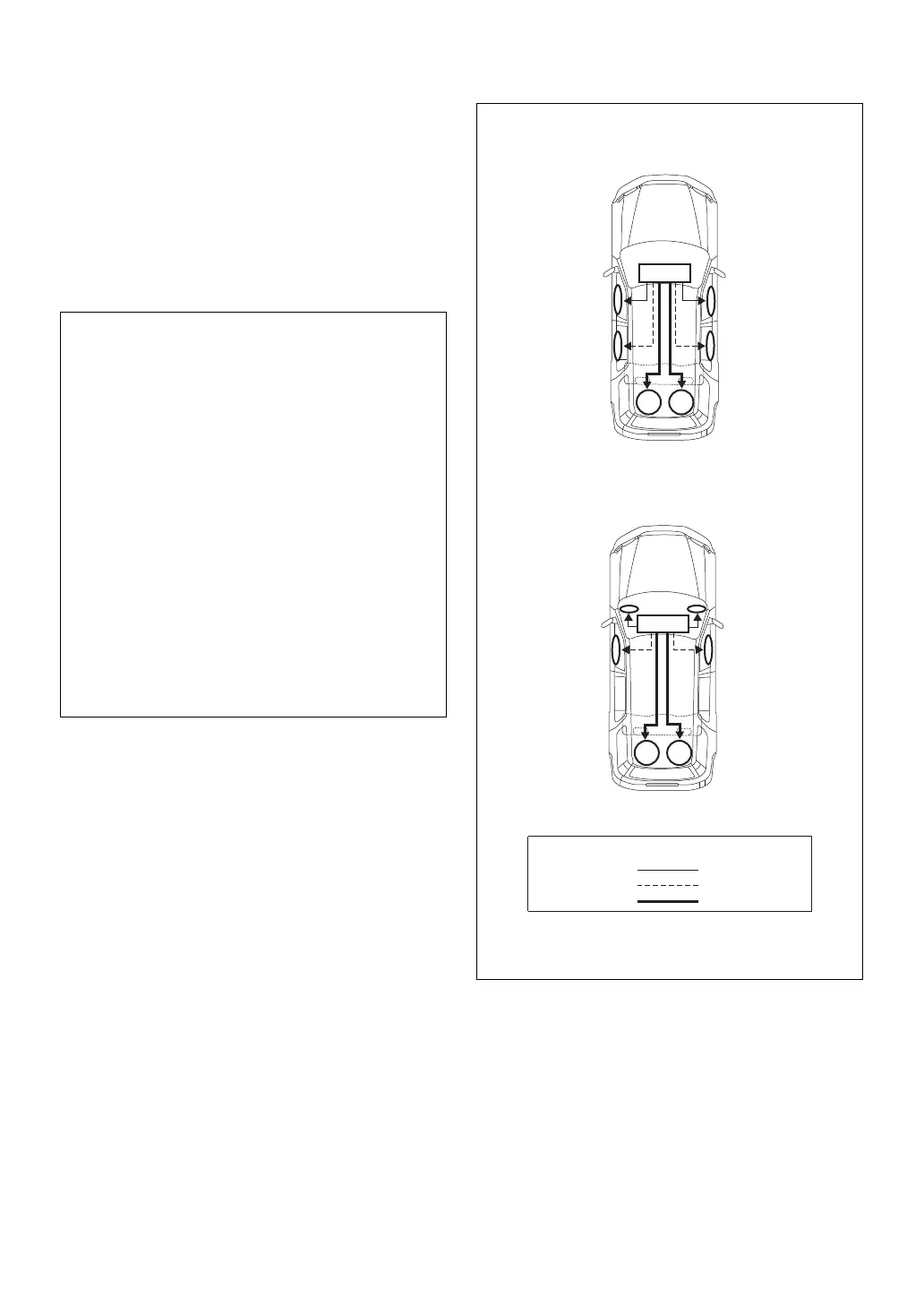

The X-OVER for a 2WAY system (frequency range is divided
between highs for front/rear and lows for the Subwoofer).
2WAY mode
The X-OVER for a 3WAY system whose frequency range is divided
among the highs (Front), mids (Front), and lows (Subwoofer).
3WAY mode
• Use the Sub-W output cord to connect the unit to the low range
speaker.
• You cannot adjust the fader when set to 3WAY.
Front high range
speaker (R)
Front high range
speaker (L)
Rear high range
speaker (L)
Low range
speaker (L)
Rear high range
speaker (R)
Low range
speaker (R)
Mid range
speaker (R)
Mid range
speaker (L)
High range
speaker (L)
Low range
speaker (L)
High range
speaker (R)
Low range
speaker (R)
Front output
Output of this unit:
Rear output
SUB-W output
