Alpine CDE-W296BT User Manual

9-EN
 CDE-W296BT
 CDE-195BT
Note
• The buttons on this Owner’s Manual use CDE-W296BT as an example.
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• Mounting Sleeve ......................................................................1
• Carrying Case (CDE-195BT only) .............................................1
• Rubber Cap ...............................................................................1
• Hex Bolt.....................................................................................1
• Bracket Key ...............................................................................2
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
Press t to turn on the unit.
Note
• The unit can be turned on by pressing any other button except  (and
e (Release) CDE-195BT only).
Press and hold t for at least 2 seconds to turn off the
unit.
Note
• The first time power is turned on, the volume will start from level 0.
Demonstration Function
This unit will enter a demonstration mode to display its various
functions. When Demo mode is set to ON (initial setting), the unit starts
the demonstration if there is no operation for 30 seconds.
There are two methods to close the demonstration mode.
Method 1:
When installing this unit in a car for the first time, the DEMO OFF screen
will be displayed for 20 seconds after turning on the unit. Press
ENTER within 20 seconds to put the demonstration mode into
standby state
*
.
Method 2:
Setting DEMO MODE to OFF (standby state
*
) or QUITE OFF (completely
closed state
*
) in Setup menu.
* For details about standby state and completely closed state, please refer
to “Demonstration” on page 29.
Source Selection
Press VSOURCE to change the source.
TUNER  DISC  USB AUDIO/iPod
*1
 BT AUDIO
*2

AUXILIARY
*3
 TUNER
*1 Displayed only when the iPod/iPhone is connected.
*2 Displayed only when BT IN is set to ON, refer to “Setting the
Bluetooth Connection (BT IN)” on page 33.
*3 Refer to “Using the Front AUX Input Terminal” on page 26.
Detaching and Attaching the Front Panel
(CDE-195BT only)
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.

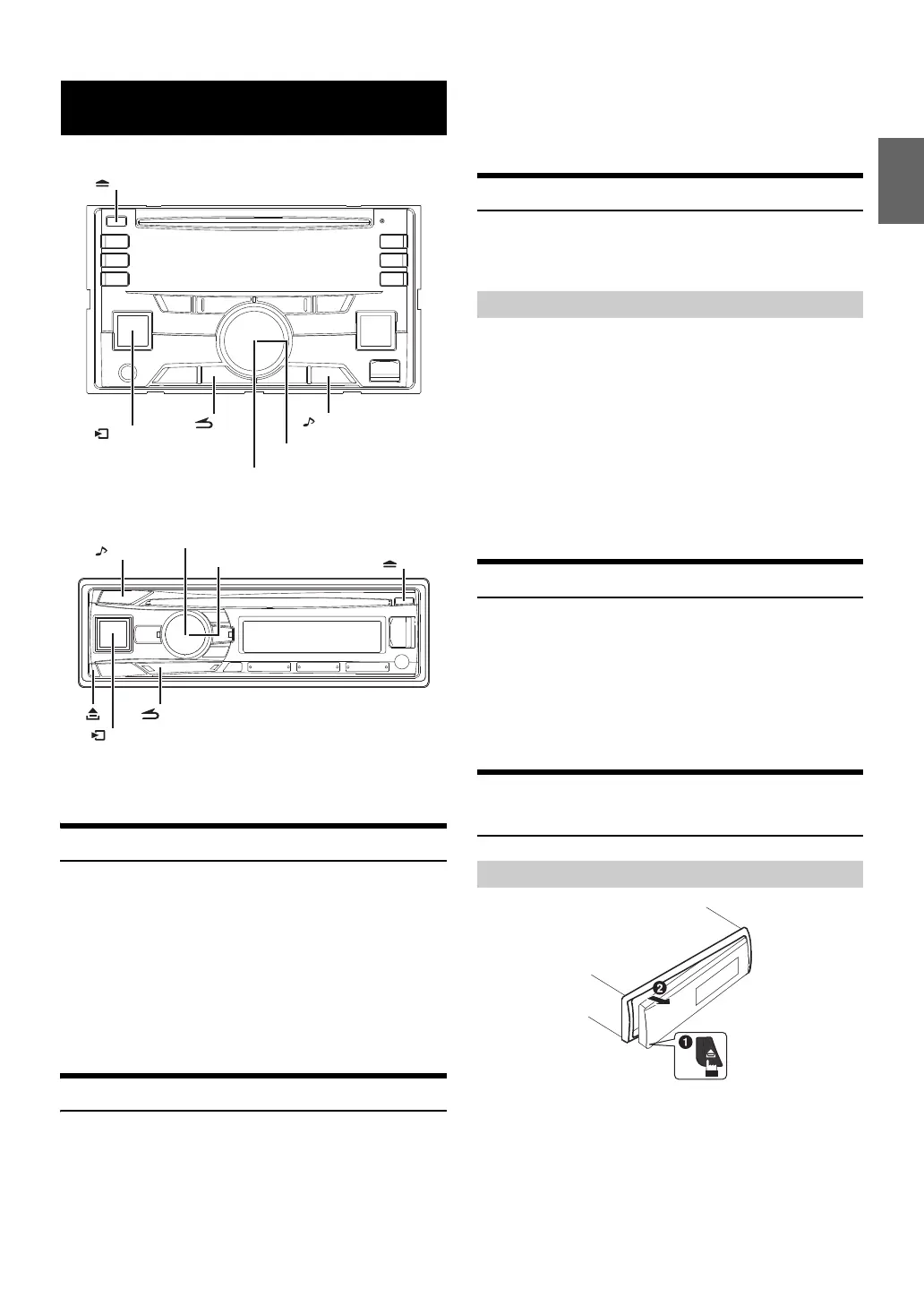

Getting Started
/SOURCE
/DIM.
/SETUP
/
/ENTER

Rotary encoder
/
/ENTER

/SETUP
/SOURCE
/DIM.
Rotary encoder
Turning the Demonstration mode Off
Detaching

Alpine CDE-W296BT Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WMA
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
DIN size	2 DIN
Output power	200 W
RDS features	AF, CT, EON, PTY, TA, TP
Product color	Black
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	9
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, OPP, PBAP, SPP
Key illumination color	Multi
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Weight	1850 g
Dimensions (WxDxH)	178 x 161.7 x 100 mm
