Alpine CDE-W296BT User Manual

32-EN
 CDE-W296BT
 CDE-195BT
Setup Before Using
Bluetooth is a wireless technology allowing communication between a
mobile device or personal computer over short distances. This enables a
hands-free call or data transmission between Bluetooth compatible
devices. Bluetooth transmission is available in the unlicensed 2.4 GHz
spectrum if the distance between devices is within 10 metres. For details,
refer to the Bluetooth Home page (http://www.bluetooth.com).
Notes
• Depending on the Bluetooth version, a Bluetooth compatible device
may not be able to communicate with this unit.
• Proper function of this unit with all Bluetooth compatible devices is not
guaranteed. For handling of the BT compatible device, consult your
ALPINE dealer or ALPINE website.
• Depending on the surroundings, Bluetooth wireless connection may be
unstable.
• When you place a call, or perform setup operations, be sure to stop your
car in a safe place.
• Depending on the connected Bluetooth compatible device(s), the
function may differ. Also refer to the Owner’s Manual of the connected
device(s).
• When you search for this unit using the Bluetooth compatible phone,
the unit name is displayed as “CDE-W296Series/CDE-195Series”.
Before using the Bluetooth function, the following settings need to be
made.
Set BT IN to ON when you want to use Hands-Free phone
or BT Audio function. Refer to “Setting the Bluetooth
Connection (BT IN)” on page 33.
Note
• Before using Bluetooth function, it must be paired with this unit. Refer
to “How to connect to a Bluetooth compatible device (Pairing)” on
page 32.
For details on the control from a Bluetooth compatible device, refer to
the Owner’s Manual of the Bluetooth compatible device.
1 Using your Bluetooth compatible device, select the
“CDE-W296Series/CDE-195Series” for pairing.
For Bluetooth compatible device with SSP
(Secure Simple Pairing)
2-1 Turn the Rotary encoder to change the head unit display
from “PAIR NO” to “PAIR YES”, and then press ENTER.
If “PAIR NO” is selected, the connection will be cancelled.
For Bluetooth compatible device without SSP
(Secure Simple Pairing)
2-2 Input the PIN code (“0000”) in a Bluetooth compatible
device.
Note
• The PIN code is fixed as “0000”.
3 If the pairing was successful, “CONNECTED” is displayed
for a few seconds. The head unit then returns to its
previous state.
Auto pairing with an iPod/iPhone
When an iPod/iPhone is connected to the USB port, the unit will
automatically pair with it.
1 Make sure USB PAIR is set to ON. Refer to “Setting the Auto
Pairing with iPod/iPhone” on page 33.
2 Connect an iPod/iPhone to this unit’s USB port.
3 Turn the Rotary encoder to select “PAIR YES”, and then
press ENTER.*
If “PAIR NO” is selected, the connection will be cancelled.
BT Hands Free Calling
About Bluetooth
®

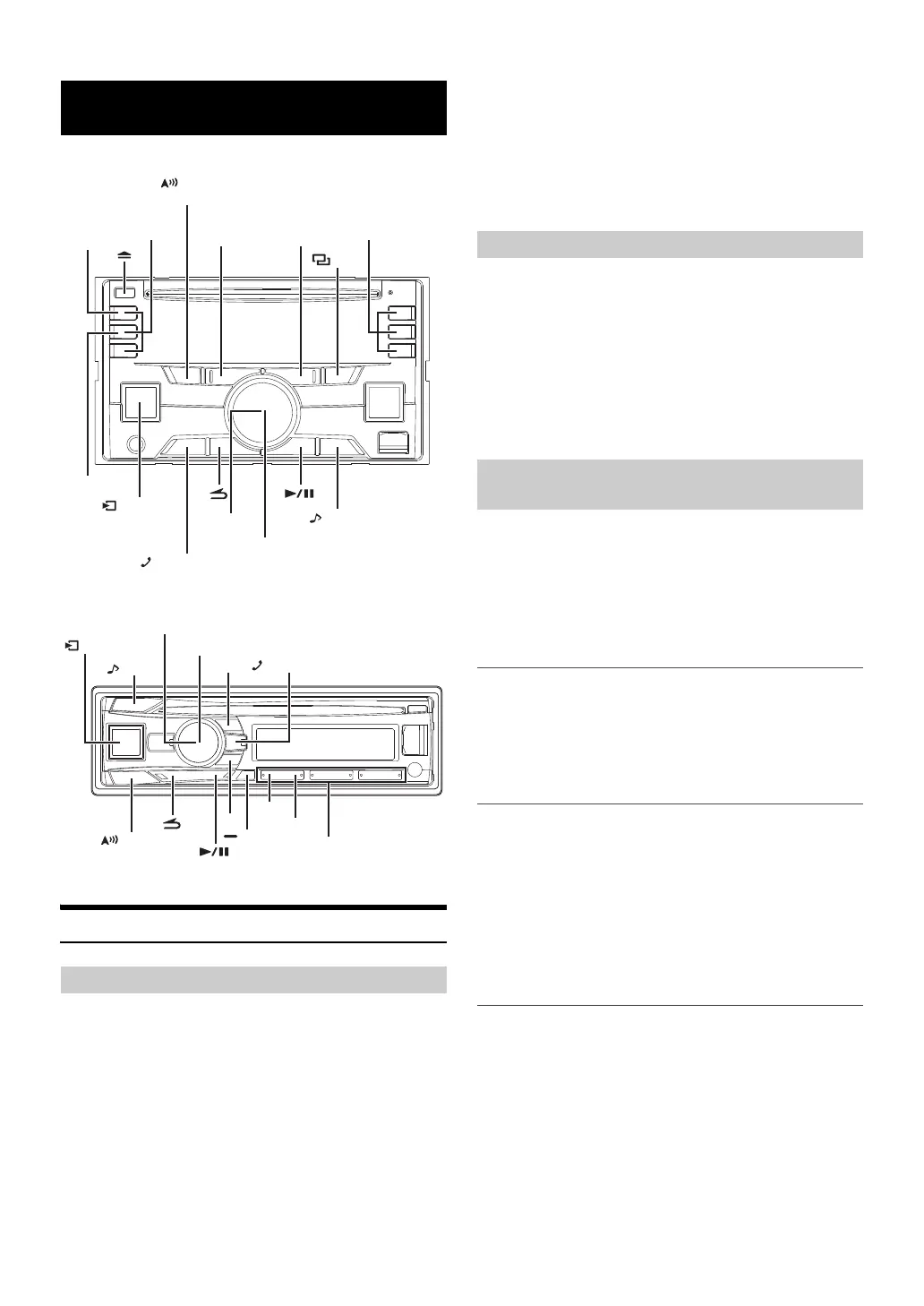

VIEW


/SOURCE
/ENTER

BAND
ABC SEARCH
/SETUP
/VOICE CTRL.

1
2

Rotary encoder
Preset buttons
(4 through 6)
Preset buttons
(1 through 3)
BAND
ABC SEARCH

/ENTER


/SETUP
/VOICE CTRL.

1
2

/SOURCE
VIEW
Rotary encoder
Preset buttons
(1 through 6)
Before Using Bluetooth Function
How to connect to a Bluetooth
compatible device (Pairing)

Alpine CDE-W296BT Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WMA
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
DIN size	2 DIN
Output power	200 W
RDS features	AF, CT, EON, PTY, TA, TP
Product color	Black
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	9
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, OPP, PBAP, SPP
Key illumination color	Multi
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Weight	1850 g
Dimensions (WxDxH)	178 x 161.7 x 100 mm
