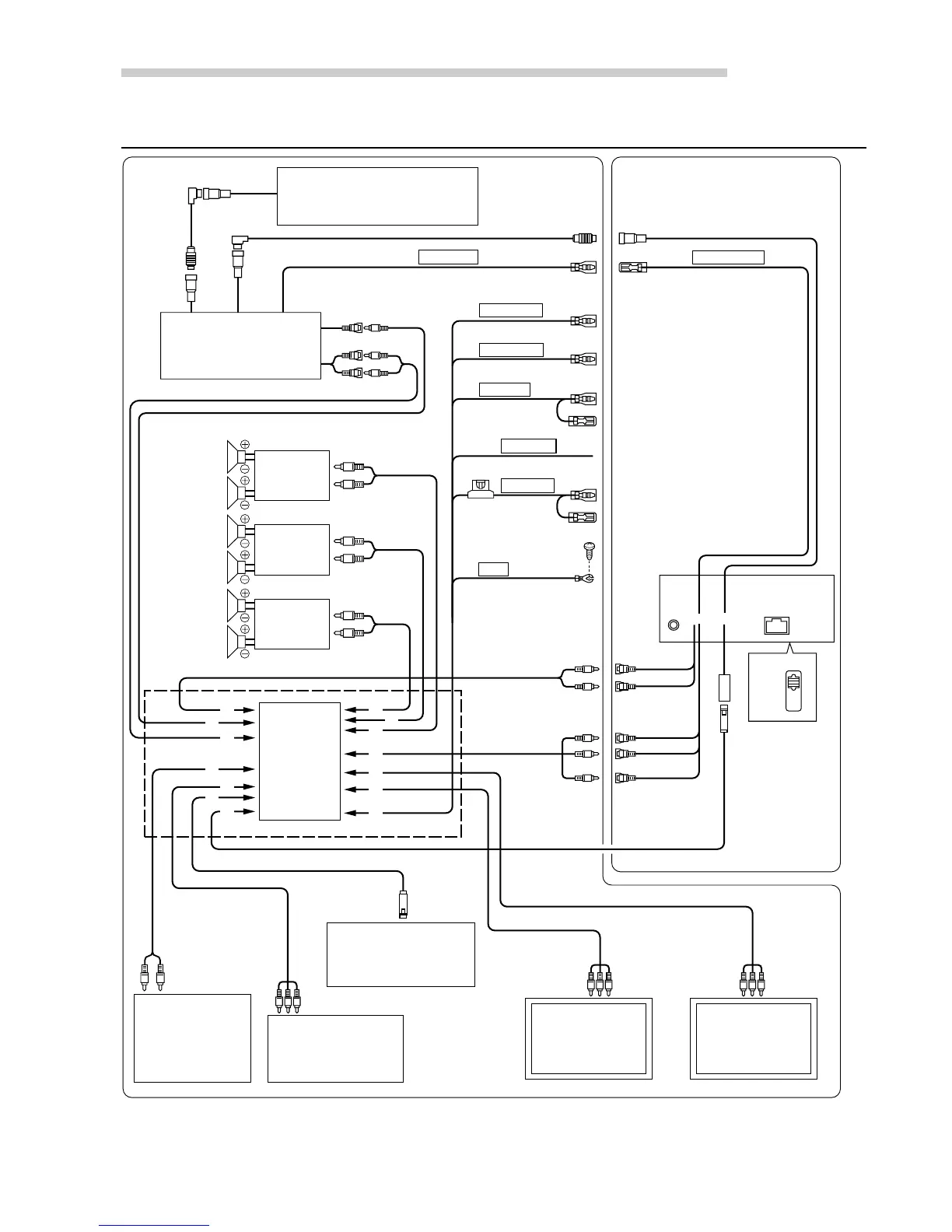

System Example 2 (connecting to the optional KCE-104V):
Refer also to Basic Connections.
*
1
Refer to the KCE-104V detail on page 59.
*
2
Be sure turn the power off to the unit before changing the
switch position.
Installation and Connections
(TME-M760)
(NVE-N077P)
(KCE-104V)
∗
1
(TME-M760)
NORM
EQ/DIV
∗
2
(TUE-T152)
~
!
#
&
(
~
~
~
~
~
~
+
)
+
9
6
5
4
2
\
]
[
7
"
$
%
3
1
8
A
B
C
E
D
F
G
H
I
J
K
L
M
N
Amplifier
Subwoofers
Rear Left
Rear Right
Front Left
Rear Right
Speakers
DVD Video Player
(Sold Separately)
(Red: R-ch)
(Yellow)
TV Tuner
(Sold Separately)
Navigation System
(Sold Separately)
Rear Monitor
(Sold Separately)
CD Changer (Ai-NET)
(Sold Separately)
(White: L-ch)
GND
(Black)
Amplifier
Amplifier
Rear Camera
(Sold Separately)
Rear Monitor
(Sold Separately)
(Red)
(White)
(Yellow)
To vehicle's reversing lamp
(White/Brown)
REMOTE OUT
REVERSE
(Orange/White)
REAR SEL 1
(Grey/Pink)
REAR SEL 2
(Black/Pink)
REMOTE IN
(White/Brown)
IGNITION
(Red)
BATTERY
(Yellow)
For details of each setting of external devices, refer to “Setting the
External Expansion Box” (page 41), “Rear Monitor Setting” (page
41), “Setting the External Input” (page 42) and “Setting Front/Rear/
Subwoofer Preout of the External Expansion Box” (page 43).
(DVA-5205/DHA-S680 series)
