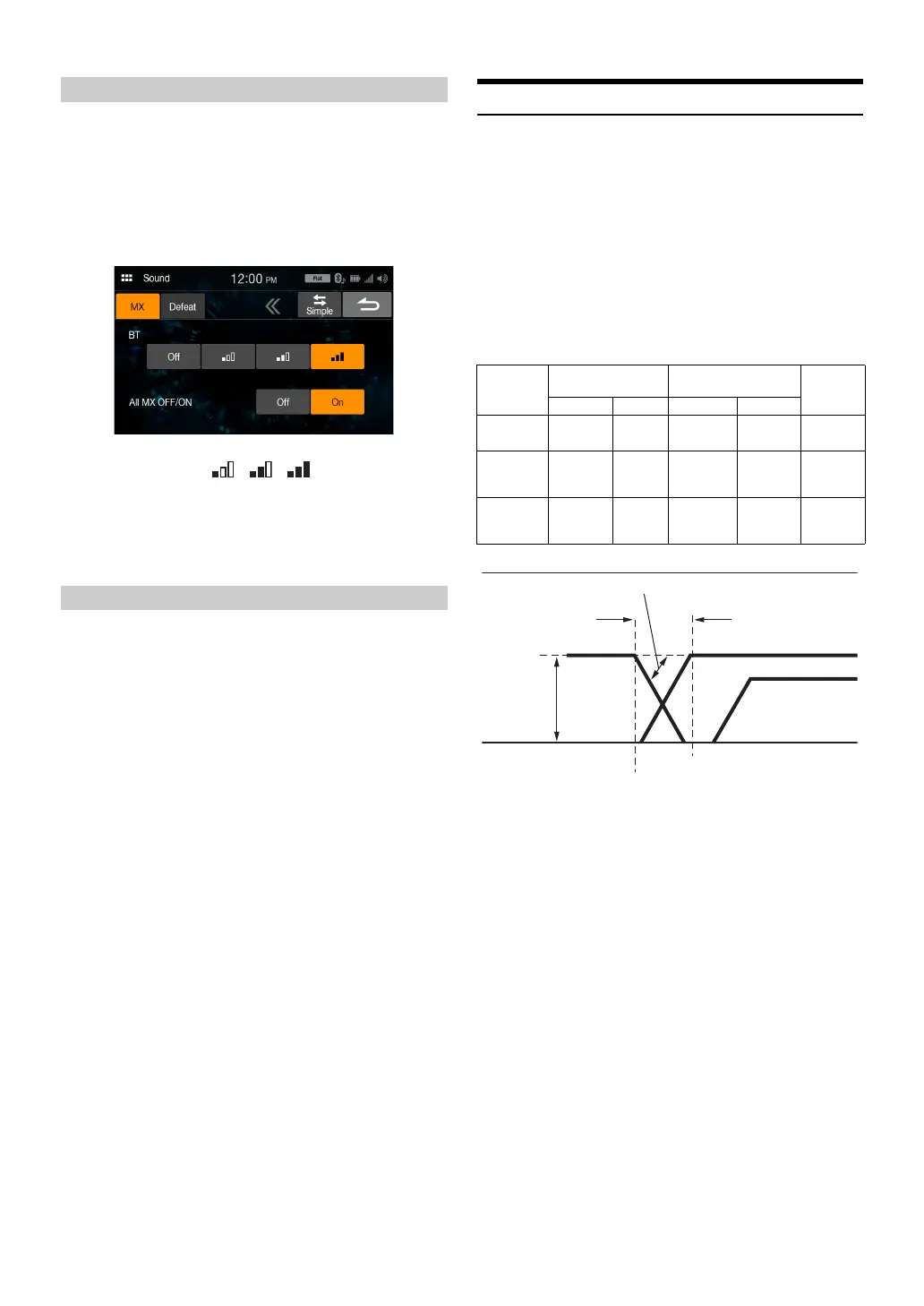

Media Xpander (MX) makes vocals or instruments sound distinct
regardless of the music source. The SiriusXM, USB Flash drive and
iPhone, will be able to reproduce the music clearly even in cars with a lot
of road noise.
Setting item:
MX
1 To uc h [On] of “All MX OFF/ON”.
2 Touch any of [Off] [] [] [].
•To cancel MX mode, set [Off] in step 1.
• MP3/WMA/AAC can have its own MX setting.
• When the Defeat setting is [On], you cannot perform the set up.
• The MX setting can be performed only when a source is currently
selected.
If Defeat is [On], the MX and Equalizer setting are turned Off. This
disables any settings made for these functions.
Setting item:
Defeat
Setting contents:
Off (Initial setting) / On
About the Crossover
Crossover (X-Over):
This unit is equipped with an active crossover. The crossover limits the
frequencies delivered to the outputs. Each channel is controlled
independently. Thus, each speaker pair can be driven by the frequencies
for which they have been optimally designed.
The crossover adjusts the HPF (high pass filter) or LPF (low pass filter)
of each band, and also the slope (how fast the filter rolls off the highs or
lows).
Adjustments should be made according to the reproduction
characteristics of the speakers. Depending on the speakers, a passive
network may not be necessary. If you are unsure about this point, please
consult your authorized Alpine dealer.
• HPF (high pass filter): Cuts the lower frequencies and allows the higher
frequencies to pass.
• LPF (low pass filter): Cuts the higher frequencies and allows the lower
frequencies to pass.
• Slope: The level change (in dB) for a frequency change of one octave.
• The higher the slope value, the steeper the slope becomes.
• Adjust the slope to FLAT to bypass the HP or LP filters.
• Do not use a tweeter without the HPF on or set to a low frequency, as it
may cause damage to the speaker due to the low frequency content.
• Adjustment should be made according to the recommended crossover
frequency of the connected speakers. Determine the recommended
crossover frequency of the speakers. Adjusting to a frequency range
outside that recommended may cause damage to the speakers.
For the recommended crossover frequencies of Alpine speakers, refer to
the respective Owner’s Manual.
We are not responsible for damage or malfunction of speakers caused by
using the crossover outside the recommended value.
Setting the Media Xpander (MX)
Setting Defeat
Cut-off frequency
(1/3 octave steps)
Slope
Level
HPF LPF HPF LPF
Subwoofer
(LPF)
----
20 Hz -
200 Hz
----
0, 6, 12, 18,
24 dB/oct.
0 to
–12 dB
Rear
speaker
(HPF)
20 Hz -
200 Hz
----
0, 6, 12, 18,
24 dB/oct.
----
0 to
–12 dB
Front
speaker
(HPF)
20 Hz -
200 Hz
----
0, 6, 12, 18,
24 dB/oct.
----
0 to
–12 dB
Level
adjusting
(0 to –12 dB)
Output frequency
range
Output frequency range
Slope adjusting
20 Hz
(Different from actual
display)
LPF cut-off
frequency
HPF cut-off
frequency
Low range High range
Slope
FLAT
Subwoofer Rear speaker
Front speaker
200 Hz
