Alpine PXE-0850X User Manual

Machine Introduction
3
Machine Interface and Function Introduction
Host USB 3.0 Interface
The host USB interface is connected to the
computer through USB 3.0 wire, and PXE-
0850X computer software is opened for tuning
setting. The USB interface may be connected
to the wire controller through USB 3.0 wire to
perform tuning setting.
External Bluetooth Interface
Select high-definition Bluetooth as an input
signal, or connect PXE-0850X mobile phone
tuning APP. After successful connection, the
Bluetooth light is normally on.
Optical Fiber and Coaxial Interface
Connect the on-board CD/DVD optical fiber or
coaxial line and switch the sound source of the
machine to digital signal input to play optical
fiber or coaxial digital signals.
RCA Audio Input Interface
3 groups of RCA audio signal inputs may be
connected to the RCA audio signal output of the
on-board CD/DVD player
Input Selection Switch
When the switch is switched to the “ACC”
terminal, the machine wll be started by ACC;
and when the it is switched to the “HOST”
terminal, the machine will be started by the high
level input signal H1-/H1+.
Power Indicator Light
High Level Input and Power Interface
They are connected to the high level output of
the on-board CD/DVD player.
H6+ H5+ H4+ H3+ H2+ H1+ ACC GND GND GND
H6- H5- H4- H3- H2- H1-
REM
OUT
+12V +12V +12V
High Level Output Interface
The output of the machine power amplifier is
connected to the loudspeaker.
RCA Audio Output
Interface
6 groups of RCA audio signal outputs may be
connected to the external power amplifier.
On-board navigation optical fiber
machine
On-board CD/DVD player
External power amplifier

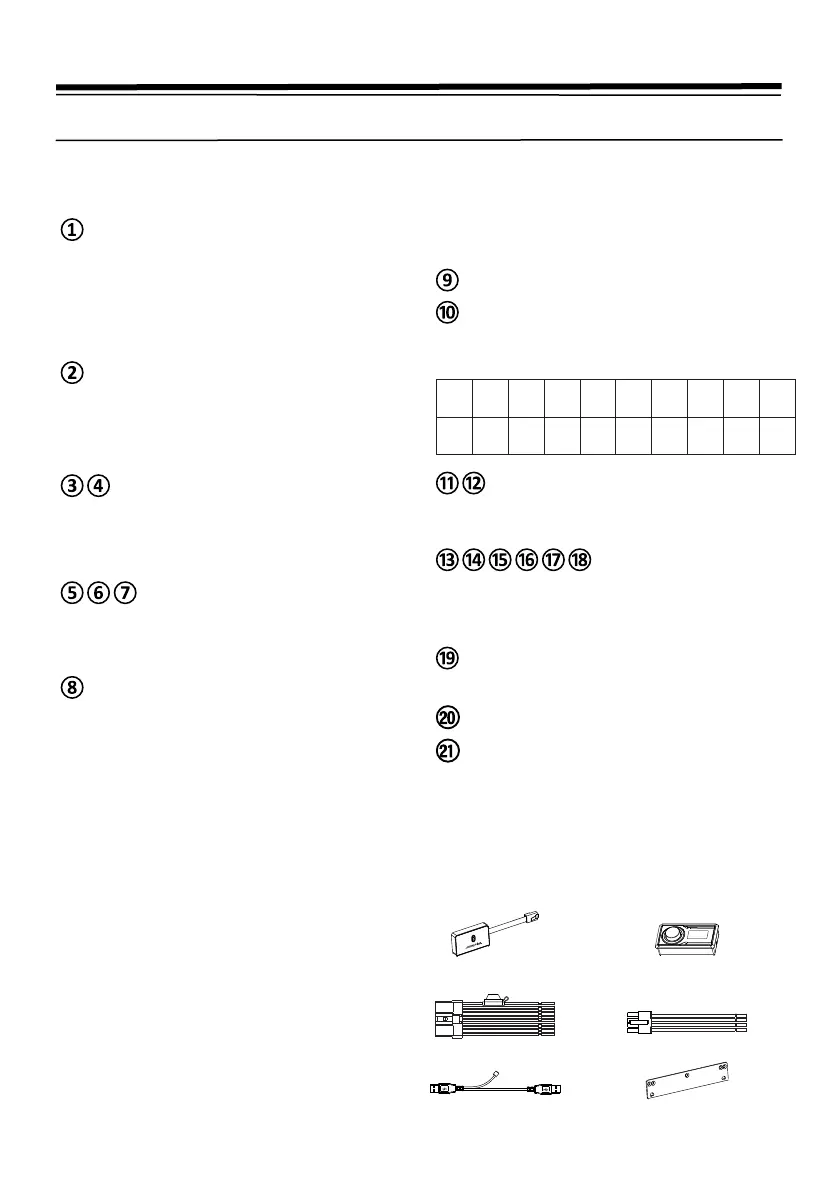

Parts List
The PXE-0850X packaging box shall include the following parts. For any shortage, please contact the
authorized dealer of Alpine.
Parts Quantity
Bluetooth module 1 (piece)
Bluetooth module X1 Wire controller x1
Wire controller 1 (piece)
Power line 1 (piece)
Power line×1 Horn wire×1
Horn wire 1 (piece)
USB 3.0 wire
1 (piece)
Fixing bracket 2 (pieces)
USB 3.0 wire ×1 Fixing bracket ×2
Quick operation guide 1 (copy)
