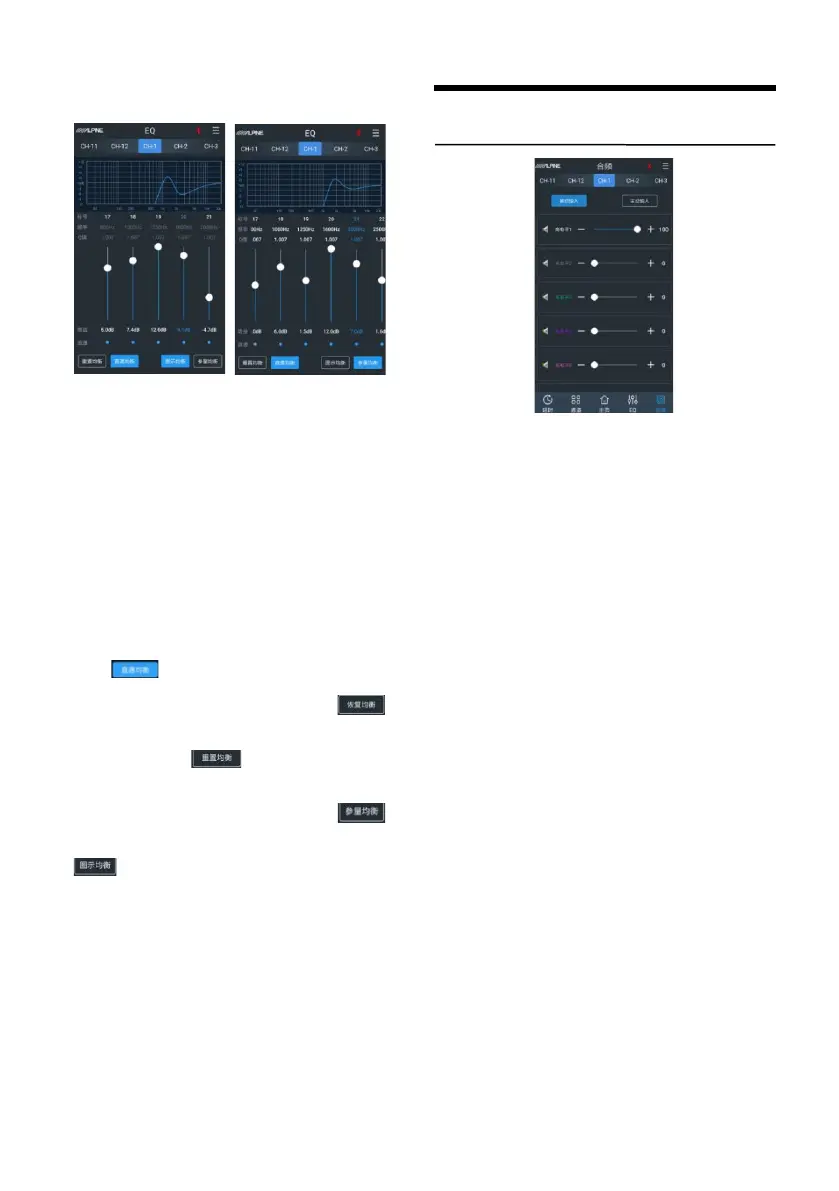

Channel EQ has two interfaces: graphic equalization
and parametric equalization.
Graphic equalization
interface
Parametric equalization
interface
There are 31 sections of EQ that can be adjusted.
Drag the fader up and down or click the gain value to
adjust the gain in the pop-up gain adjusting box by
dragging the fader left and right or “+” and “-”; click Q
value and adjust the Q value in the pop-up Q value
adjusting box by dragging the fader left and right or “+”
and “-”; and click the frequency value and adjust the
frequency in the pop-up frequency adjusting box by
dragging the fader left and right or “+”or “-”.
1. Frequency adjusting range: 20Hz to 20kHz;
2. Q value adjusting range: 0.404 to 28.852; and
3. Gain adjusting range: -12.0dB to +12.0dB.
When EQ is adjusted, that is the through equalization
button
【 】
appears, click “Through Equalization”
to disable all the equalizers of the current channel;
and click restore equalization button
【 】
to enable all the equalizers of the current channel
to return to the previous startup state. Click reset
equalization button
【 】
, and the parameters of
all the equalizers of the current channel return to their
initial state: Q value is 1.007 and gain is 0.0dB.
Click parametric equalization button
【 】
to switch “graphic equalization” into “parametric
equalization”, and click graphic equalization button
【 】
to switch the “parametric equalization” into
“graphic equalization”.
* Under the graphic equalization interface, the
grain is adjustable and the frequency and
Q value are fixed; and under the parametric
equalization interface, the frequency, Q value
and gain are all adjustable.
Frequency Combination
Interface
In the frequency combination interface, the volume
of each sound source in the channel can be adjusted
by pushing the fader left and right or “+” and “-”,
thereby achieving the aim of audio mixing and
frequency mixing.
* For details, please refer to “Introduction of
frequency combination setting function” in the
instructions of the computer software.
