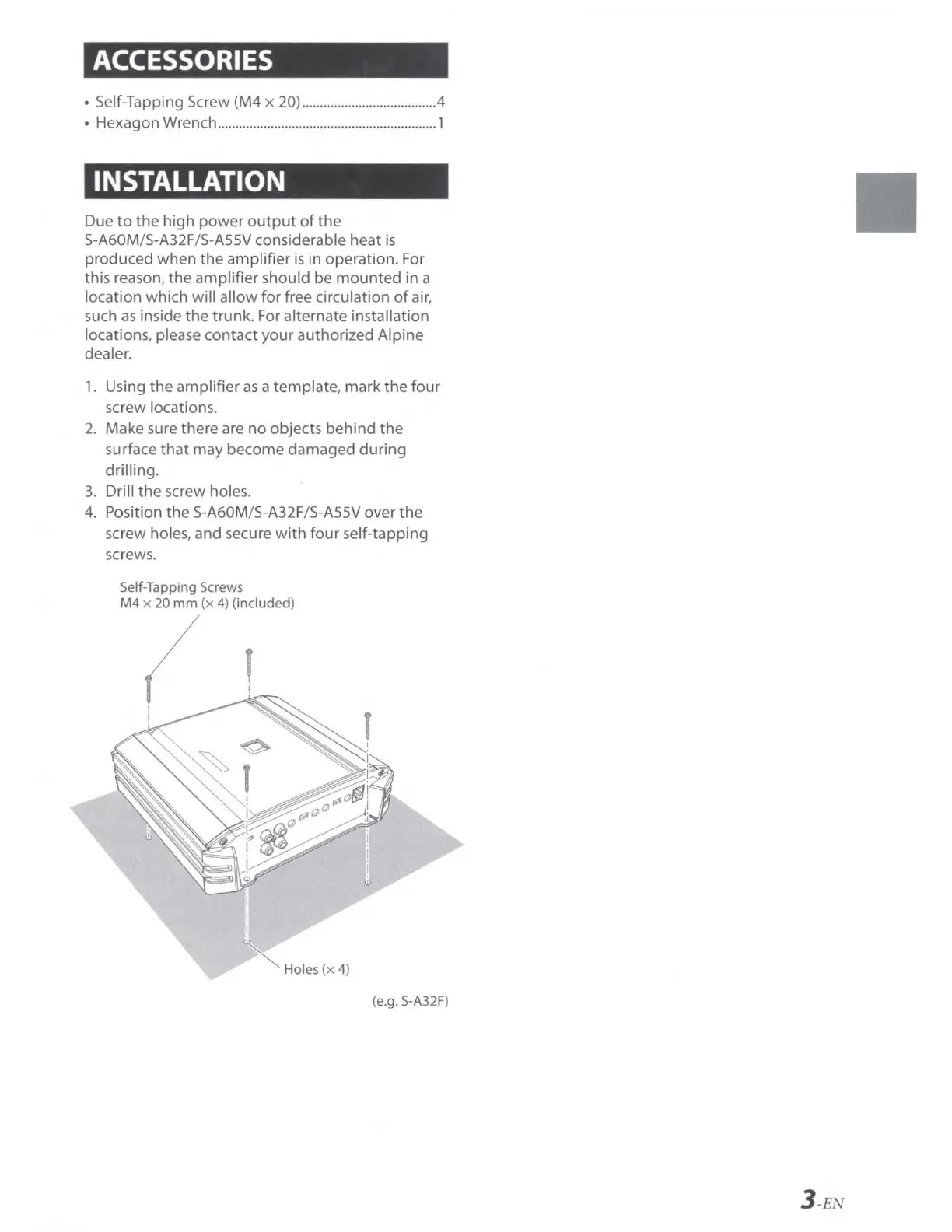

ACCESSORIES
• Self-Tapping Screw (M4 x
20)
.....................................
.4
• Hexagon Wrench
..............................................................
l
INSTALLATION
Due
to
the
high power
output
of
the
S-A60M/S-A32F/S-A55V considerable heat
is
produced when
the
amplifier
is
in operation. For
this reason,
the
amplifier should be
mounted
in a
location which will
allow
for
free circulation
of
air,
such
as
inside
the
trunk.
For
alternate installation
locations, please contact your authorized Alpine
dealer.
1.
Using the amplifier
as
a template, mark the
four
screw locations.
2.
Make sure there are
no
objects behind
the
surface
that
may become damaged during
drilling.
3.
Drill the screw holes.
4.
Position the S-A60M/S-A32F/S-A55V over the
sc
rew holes, and secure
with
four self-tapp
ing
screws.
Self-Tapping Screws
M4
x 20
mm
(x
4) (included)
(
'
I
i
I
!
Holes
(x
4)
(e.g. S-A32F)
3 -EN
