Alpine TUE-DAB1U - System Connections

14-EN
Using an Alpine Screen with direct touch:
Note: See the ‘Setting the AUX mode’ section in the manual of your Alpine Headunit for details on how to enable
the touch controls. The mode should be set to ‘USB Video’.

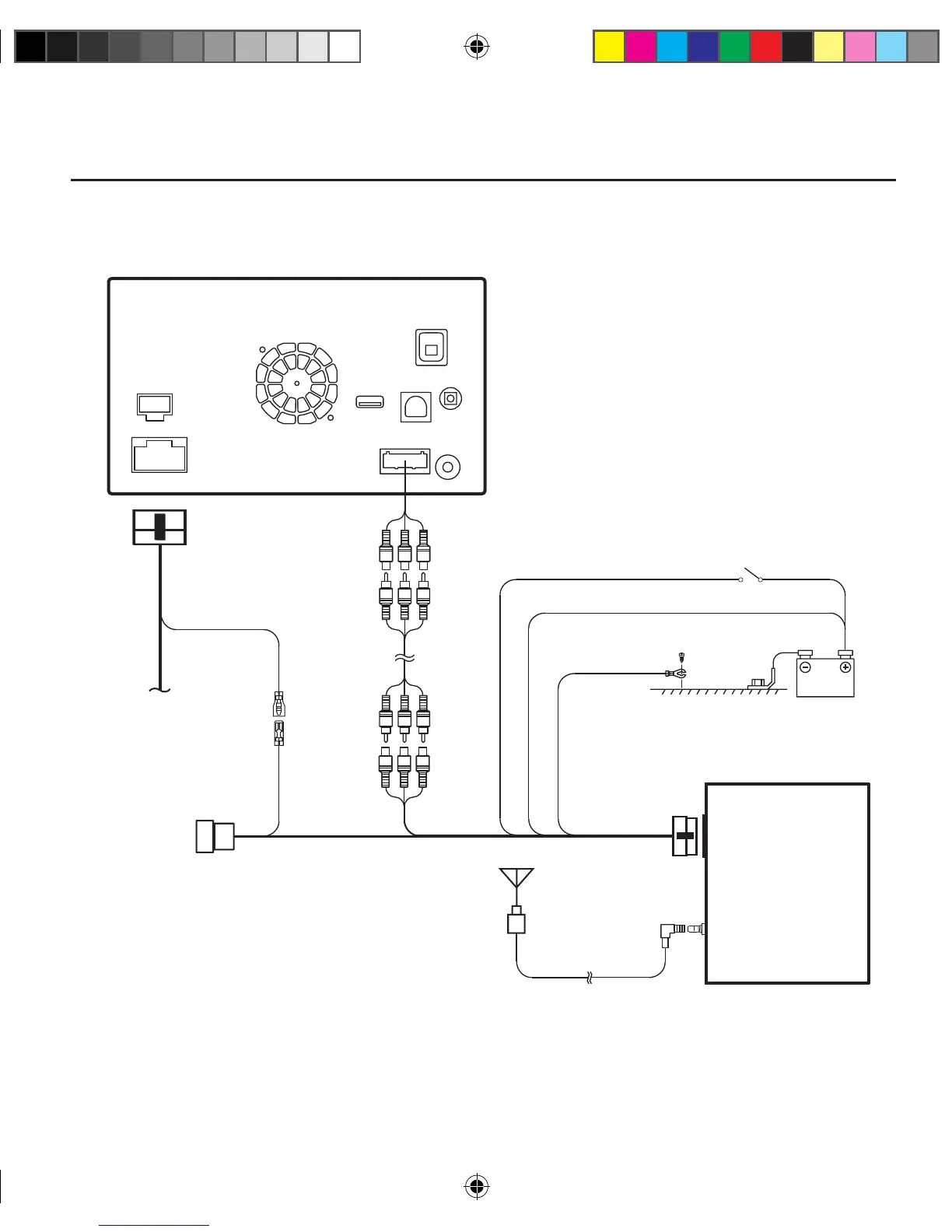

System Connections
Power/AV/IR
Antenna
Port



Power LED USB Reset
a
TUE-DAB1U
GND
+12V
ACC
Battery
IGNITION KEY
HU CONNECTOR
ALPINE HEAD UNIT
AUX INPUT
IR (TOUCH)
REMOTE OUT
(Sold Separately)
AV EXTENSION
DAB ANTENNA
IR EYE
AUX OUTPUT
