5-EN
EN

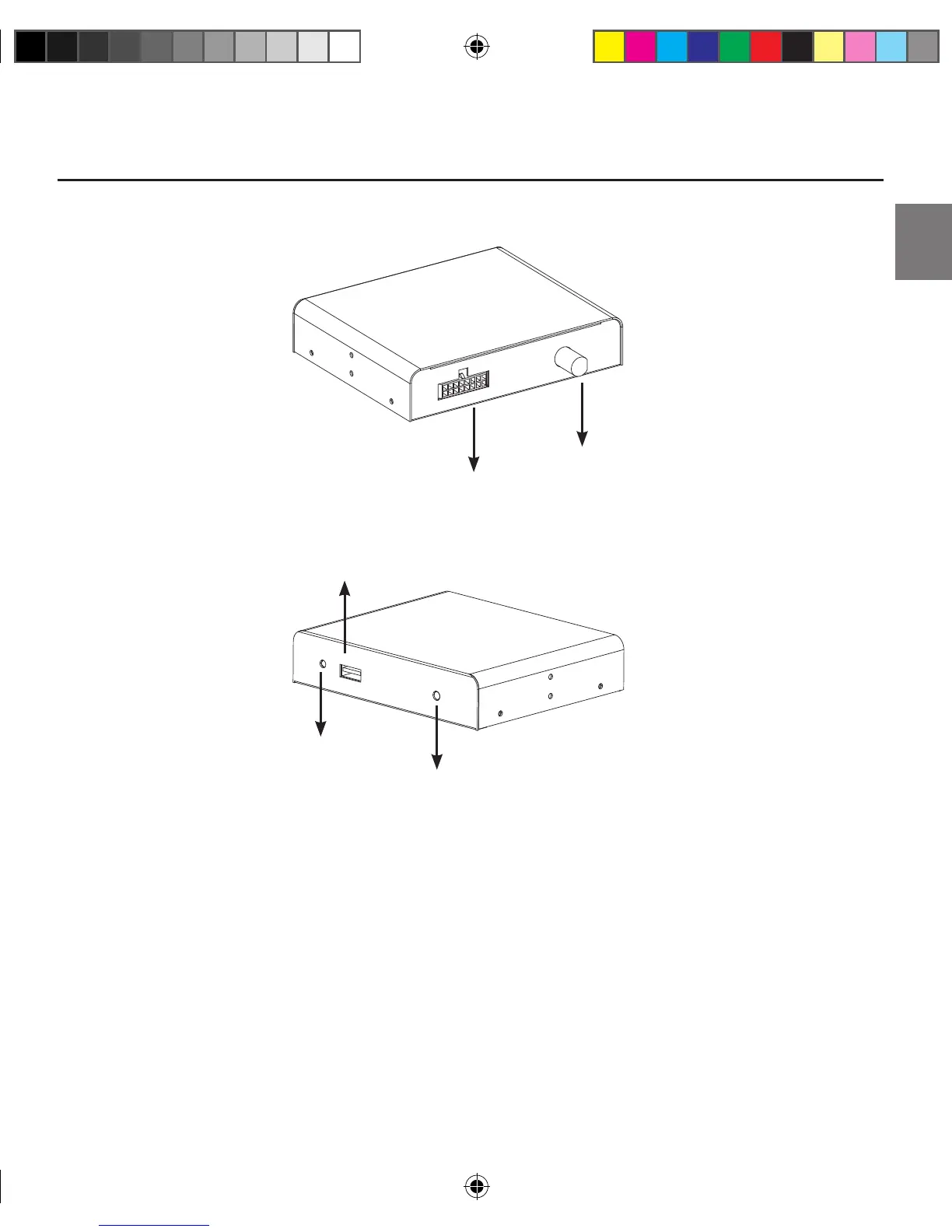

Unit Description
Rear Side
Front Side
A System Connector: Combination of power input, ACC input, Remote Control, Video and Audio output
B Antenna Connector: Antenna connection port (NOTE: This DAB unit provides +5V antenna power on
these inputs for 5V active antennas)
C Power: The ‘Power’ LED indicates if the 12V or 24V power supply has been successfully applied to the device
D USB Port: Plug the USB memory stick for updating the software
E Reset: System reset button
Reminder: Please connect the antenna before switching the unit on.
If you turn the unit on before connecting the antennas, the receiver may not receive any signal. Please connect the
antenna rst and then turn on the unit.
A System Connector
B Antenna Connector
D USB Port
C Power LED
E Reset Button
