FUEL SYSTEM
AL250 Flight Manual
MEP
6-9 FUEL S YSTEM
The fuel system consists of the left and right tank which are monitored by one fuel
quantity gauge each, the fuel selector switches and the electric fuel pump switches.
The fuel tanks are filled by means of the Instructor Station ‘Aircraft Window’. The
maximum amount depends on the chosen flight model and you will find it in the
chapter 1 on page 1-1 in this manual.
6-9-1 FUEL Q UANT ITY INDICATOR
The fuel gauges on the central panel shows the amount of fuel in the tanks. The
left-hand gauge indicates the fuel in the left tank, the right-hand gauge is for the right
tank.

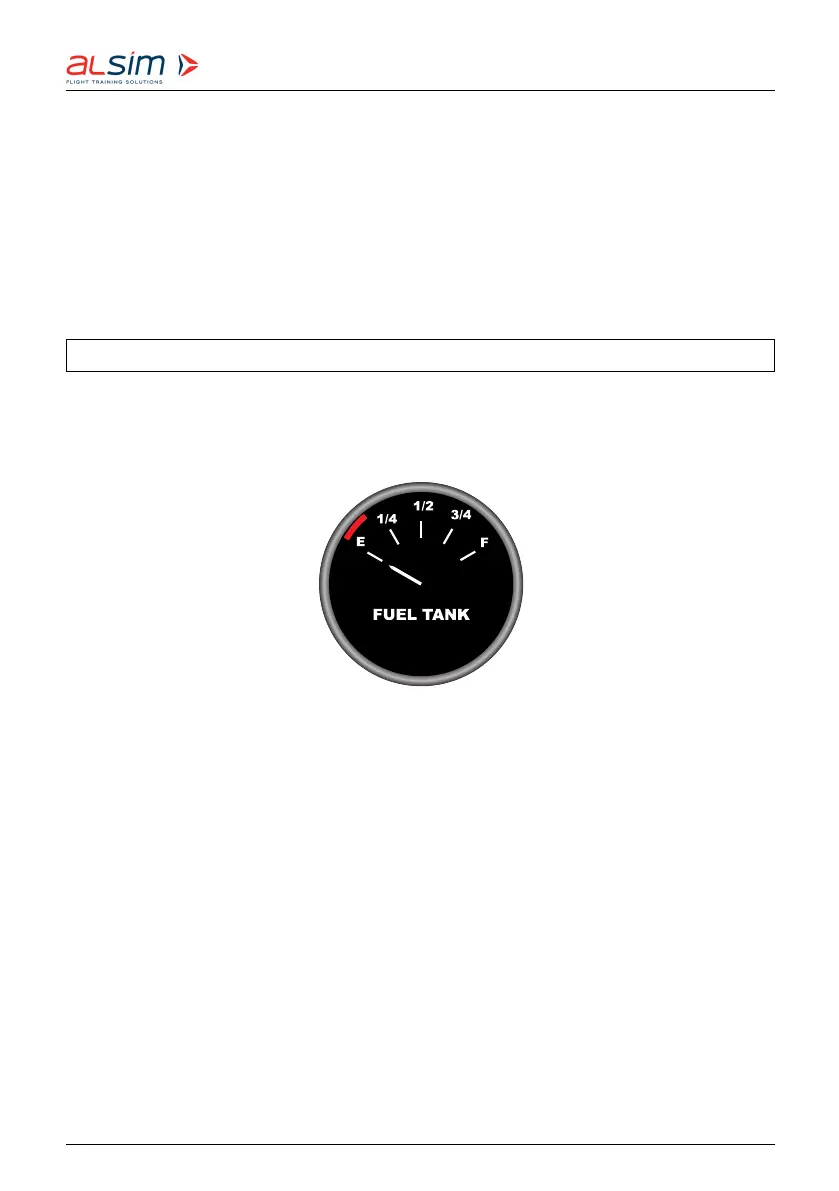

Figure 6.50: Fuel gauge
Rev. 1.8 © 2021 ALSIM - All Rights Reserved 6-51
