Aircraft Systems
LANDING GEAR
AL250 Flight Manual
MEP
6-4-3 WHEEL B RAKES
TOE BRAKES
The wheel brakes are activated by pressing the upper part of the pedal with one’s toes.

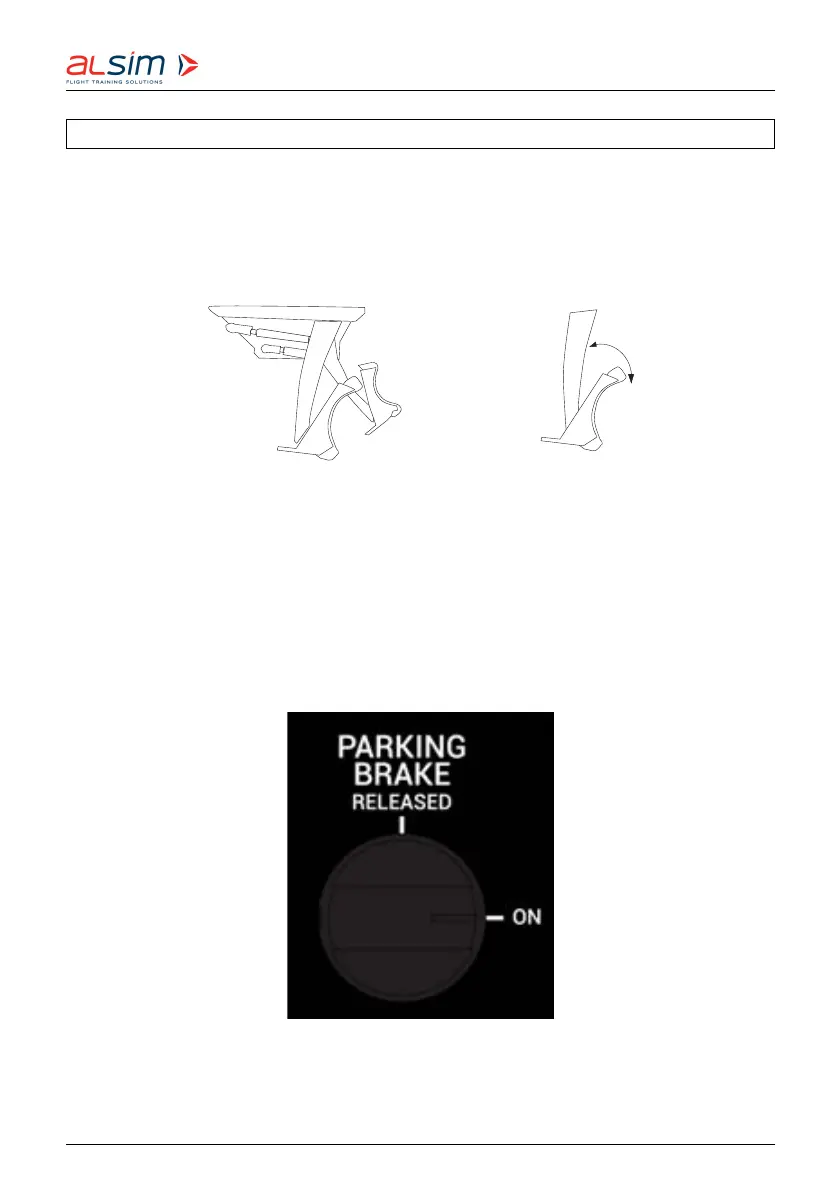

Figure 6.22: Pedals with toe brakes
PARKING BRAKE
The parking brake is located on the pedestal.
It is set by turning a quarter turn to the right (clock-wise) and released by turning a
quarter turn to the left (anti-clockwise) - compare the markings on the pedestal.
Figure 6.23: Parking brake switch
Rev. 1.8 © 2021 ALSIM - All Rights Reserved 6-23
