Aircraft Systems
FLIGHT INSTRUMENTS
AL250 Flight Manual
MEP

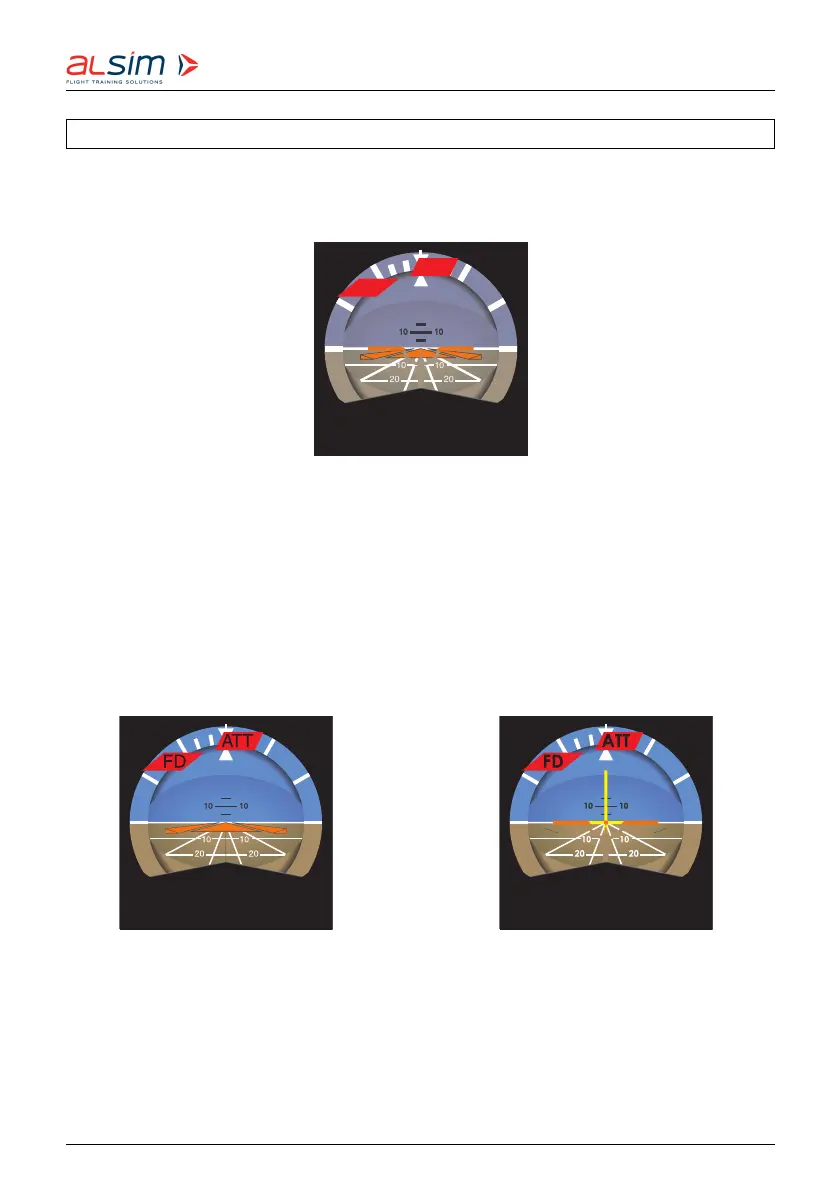

6-5-5 ATTITUDE INDICATOR
There are two attitude indicators installed: one on the pilot’s panel, the other on the
central panel
1010
1010
20 20
FD
ATT
The roll attitude index on the instrument frame has fixe d reference marks at 0° (white
triangle), 10 and 20° (short white bar), 30°, 60° and 90° (long white bars). The white
triangle at the instrument inside symbolizes the aircraft.
Pitch attitude marks are in five degree increments from 0 to 25 degrees. The aircraft
is symbolized by either orange angles (cross-bars chosen in the Instructor Station
‘Aircraft Menu’) or an orange triangle (V-bars).
Figure 6.28: Attitude indicator in V-
bars mo de
Figure 6.29: Attitude indicator in
crossbars mode
Rev. 1.8 © 2021 ALSIM - All Rights Reserved 6-27
