WARNING: THE MAIN POWER SUPPLY INPUT REQUIRES A PROTECTIVE SAFETY
EARTH TO BE CONNECTED AS SHOWN IN THE FIGURE BELOW.

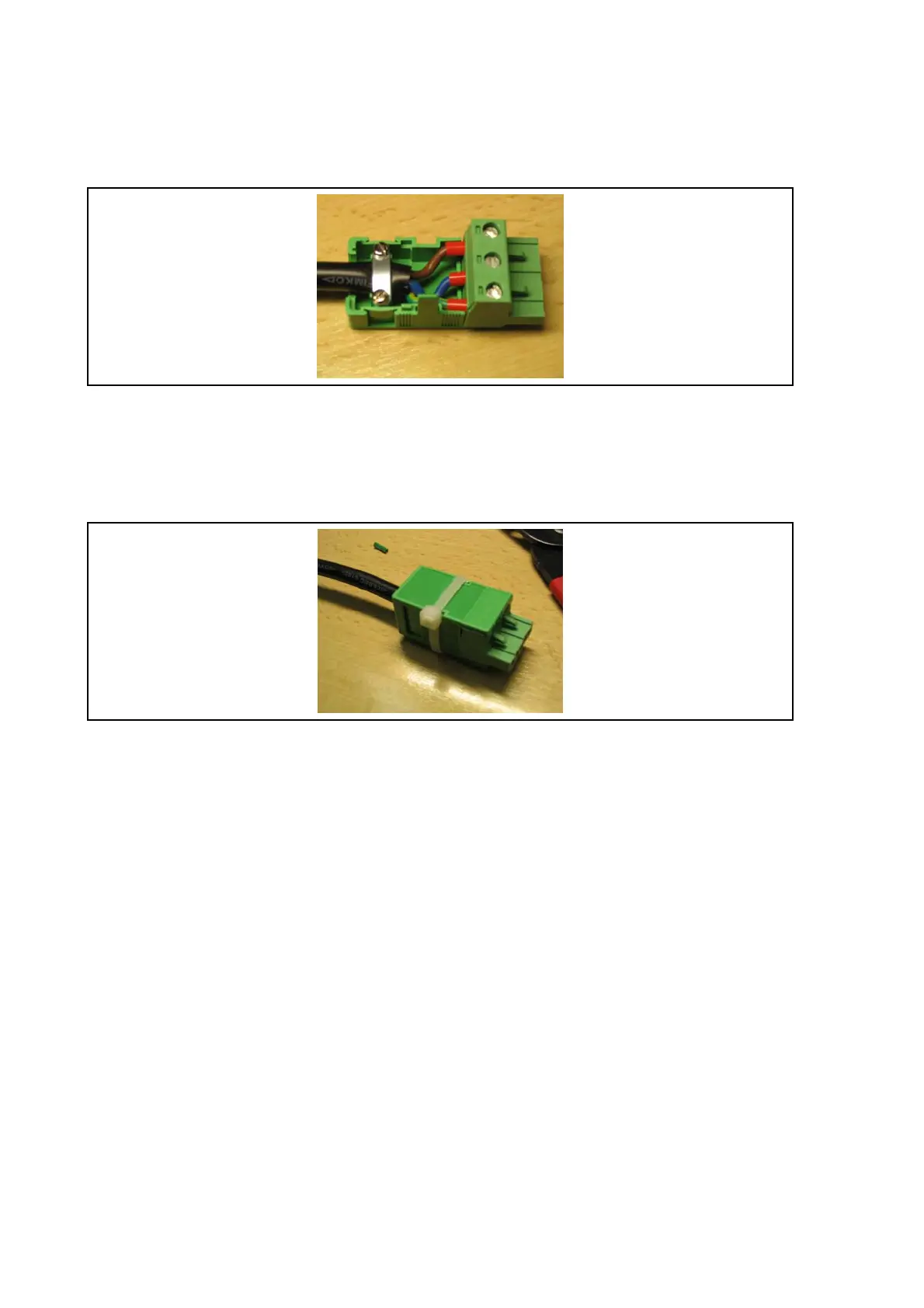

FIGURE 11: POWER SUPPLY WIRING
The complete plastic cover must be fitted to the power supply connector as shown in the
figure below.
The plastic cover must be secured with the cable tie supplied with the white cable tie around
the connector, as shown in the figure below.
FIGURE 12: POWER SUPPLY COVER AND CABLE TIE
