Altai C2s Dual-Band 2x2 802.11ac WiFi AP/Bridge
Installation Guide
Altai Technologies Ltd. All rights reserved

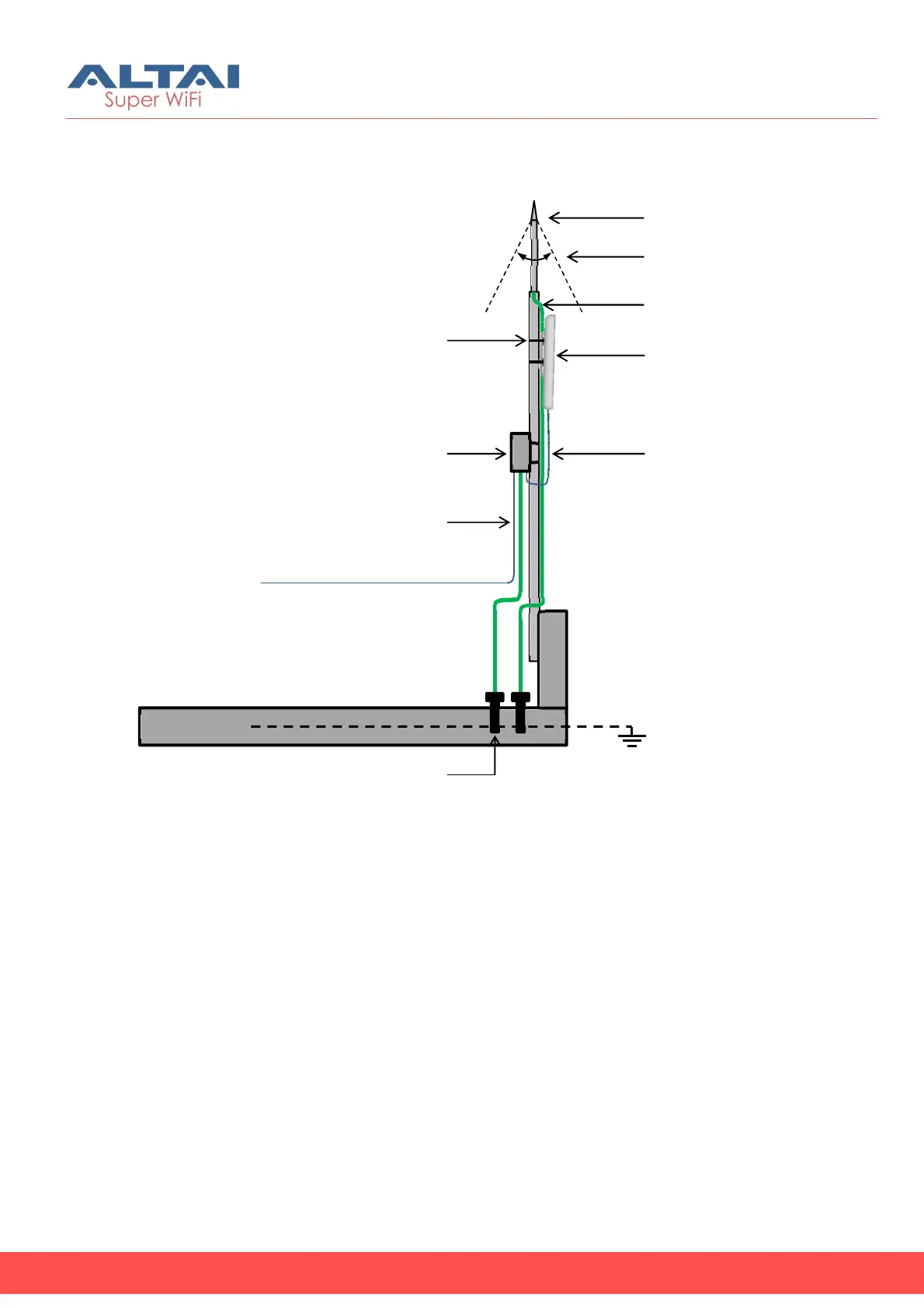

Typical Electrical and Lightning Protection Installation is shown below:
Building Rooftop
C2s Main Unit
Surge Protector
Shielded Ethernet Cable;
Total Length (Including PoE Injector) less than
100m to Network Equipment, e.g. Switch
Shielded Ethernet Cable
to be as short as possible
Wall
Conventional Lightning Rod
Lightning Protection Zone
Grounding Wire
Cable Ties
To Network
Grounding Bar
