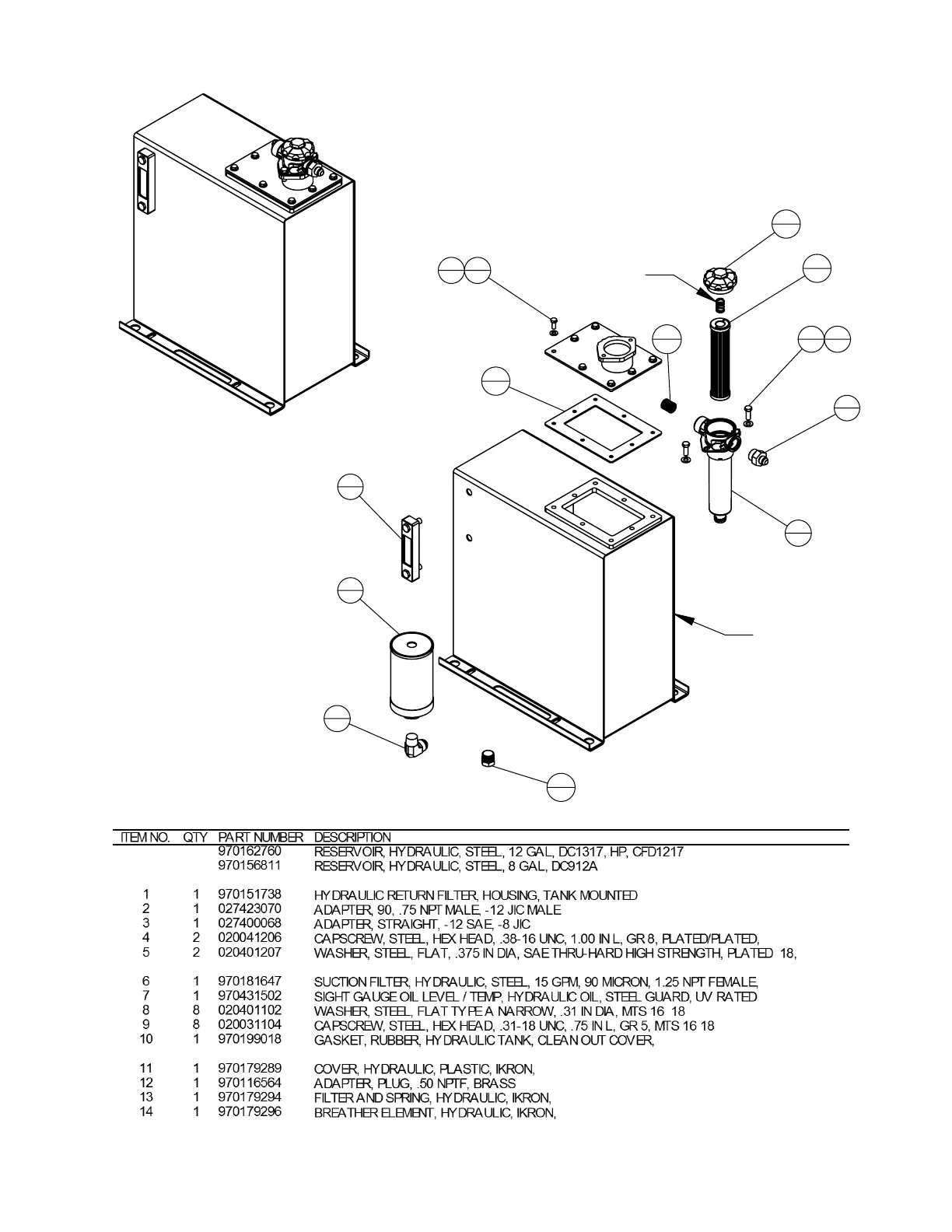

Altec DRM 12 - HYDRAULIC TANK ASSEMBLY

11
1
13
1
10
1
3
1
7
1
6
1
2
1
12
1
1
1
4
1
5
1
SPRING SUPPLIED
WITH ITEM #13
HYDRAULIC TANK
FOR REFERENCE ONLY
14
1
9
1
8
1
8X
2X
14 1 970179296 -
13 1 970179294 FILTER ELEMENT, 10 MICRON ABSOLUTE
12 1 970116564 ADAPTER;PLUG;.50 NPTF;;;;;;BRASS
11 1 970179289 COVER,HYDRAULIC,PLASTIC,IKRON
10 1 970199018 GASKET,RUBBER,HYDRAULIC TANK,CLEAN OUT COVER
9 8 200-31104 CAPSCREW, HEX HD, .3125-18 UNC, STL, GR 5, .75 LG., MTS 16,18
8 8 204-01102 WASHER, FLAT, .312 TYPE A NARROW, STL, MTS 16, 18
7 1 970431502
SIGHT GAUGE OIL LEVEL / TEMP, HYDRAULIC OIL, STEEL GUARD,
UV RATED POLYMIDE, M12 MOUNTING BOLTS
6 1 970181647
SUCTION FILTER;HYDRAULIC;STEEL;15 GPM;;;;90 MICRON;1.25 NPT
FEMALE;;;STRAINER, CASAPPA HF410-30
5 2 204-01207 WASHER, FLAT .38 ASTM F 436, STL, HARDENED, MTS 16, 18
4 2 200-41206
CAPSCREW, HEX HD, .375-16 UNC, STL, GR 8, 1.00 LG., PLTD, MTS
16, 18
3 1 274-00068 ADAPTER STRAIGHT -12 SAE TO -8 JIC
2 1 274-23070 ADAPTER 90 DEG ELBOW 3/4 NPTF TO -12 JIC
1 1 970151738 -
ITEM
ALTERN
ATE
PART NUMBER DESCRIPTION
12A
[PAGE 1 OF 1]
02-13
970199021-D
HYDRAULIC TANK ASSEMBLY
