Cyclone V GX Starter Kit
User Manual
6. In case of a disconnect, click on CONNECT where the .sof will be re-loaded onto the
board.
Please note that the Control Panel will occupy the USB port until you close that port; you cannot use
Quartus II to download a configuration file into the FPGA until the USB port is closed.
7. The Control Panel is now ready to use; experience it by setting the ON/OFF status for
some LEDs and observing the result on the C5G board.

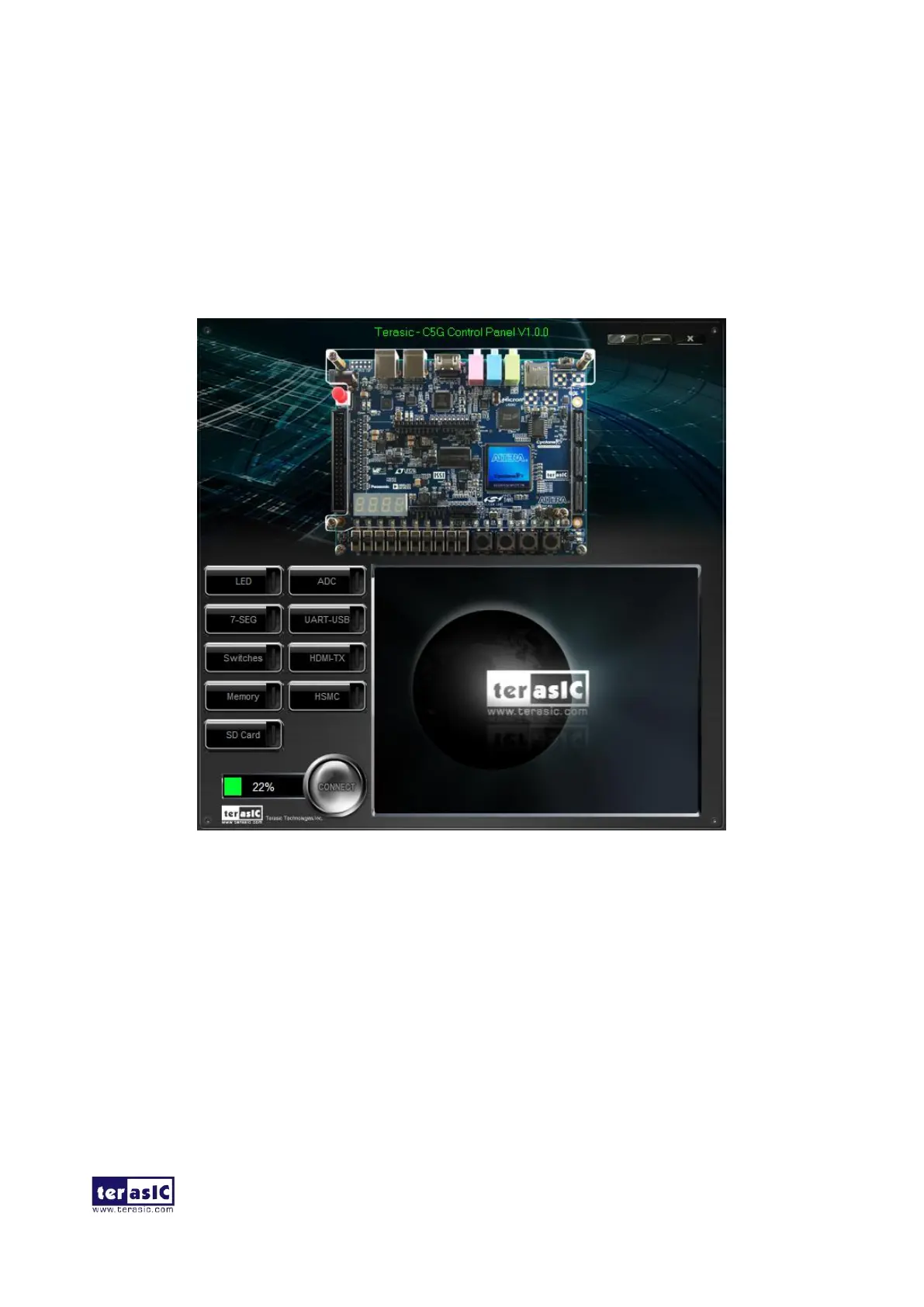

Figure 2-1 The C5G Control Panel
