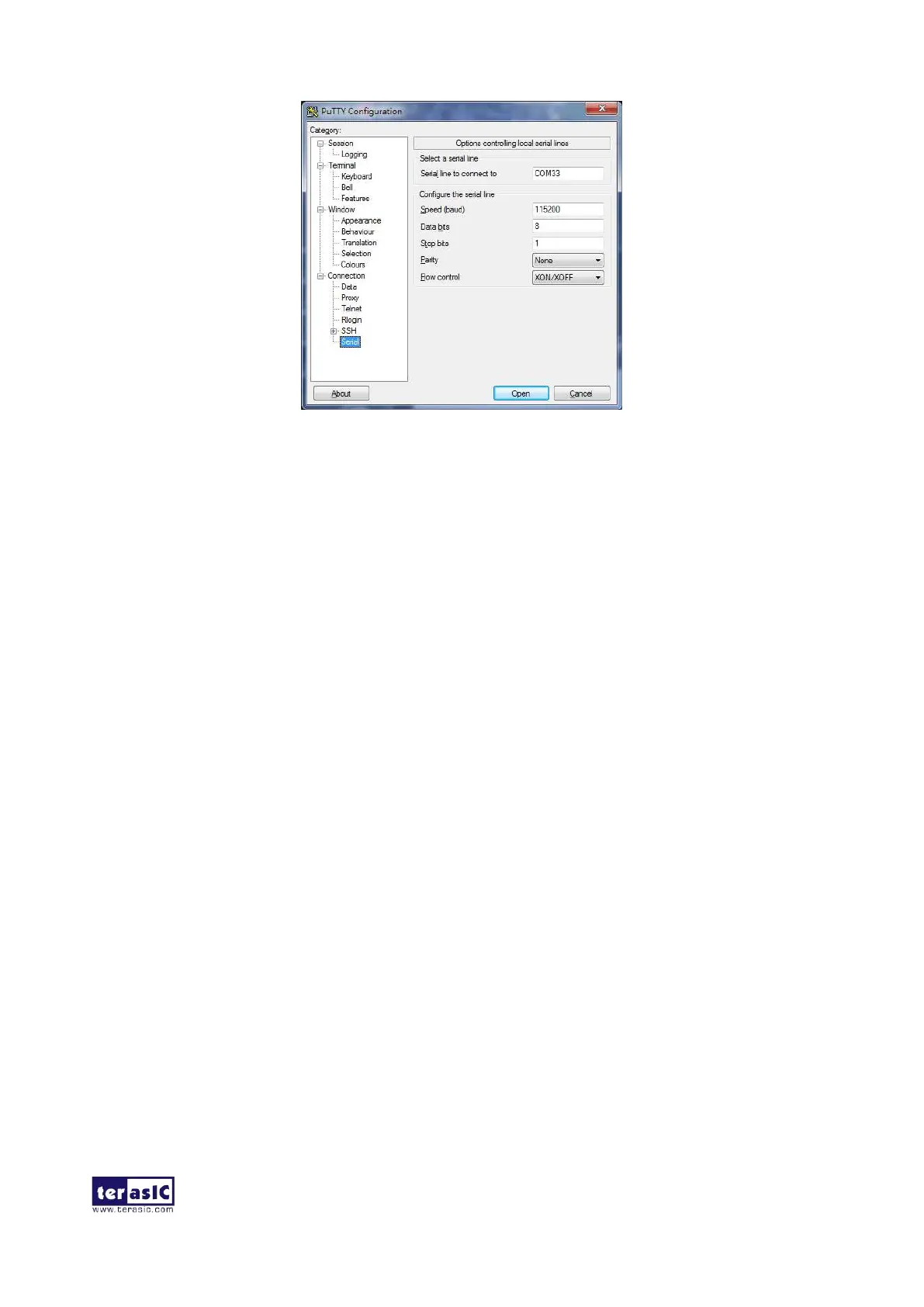

Figure 2-10 UART Configuration in PuTTY
2
2
.
.
8
8
H
H
D
D
M
M
I
I
-
-
T
T
X
X
C5G Control Panel provides video pattern function that allows users to output color pattern to
HDMI interfaced LCD monitor using the Cyclone V GX Starter board. Follow the steps below to
generate the video pattern function:
Note, do not installed HSMC loopback board while using HDMI-TX function because the
loopback board will inference the I2C bus of HDMI.
1. Choosing the Video tab leads to the window in Figure 2-11.
2. Plug a HDMI cable to the HDMI connector of the Cyclone V GX Starter board and LCD
monitor.
3. The LCD monitor will display the same color pattern on the control panel window.
4. Click the drop down menu shown in
Figure 2-11 where you can output the selected pattern
individually.
