DE1 User Manual
28

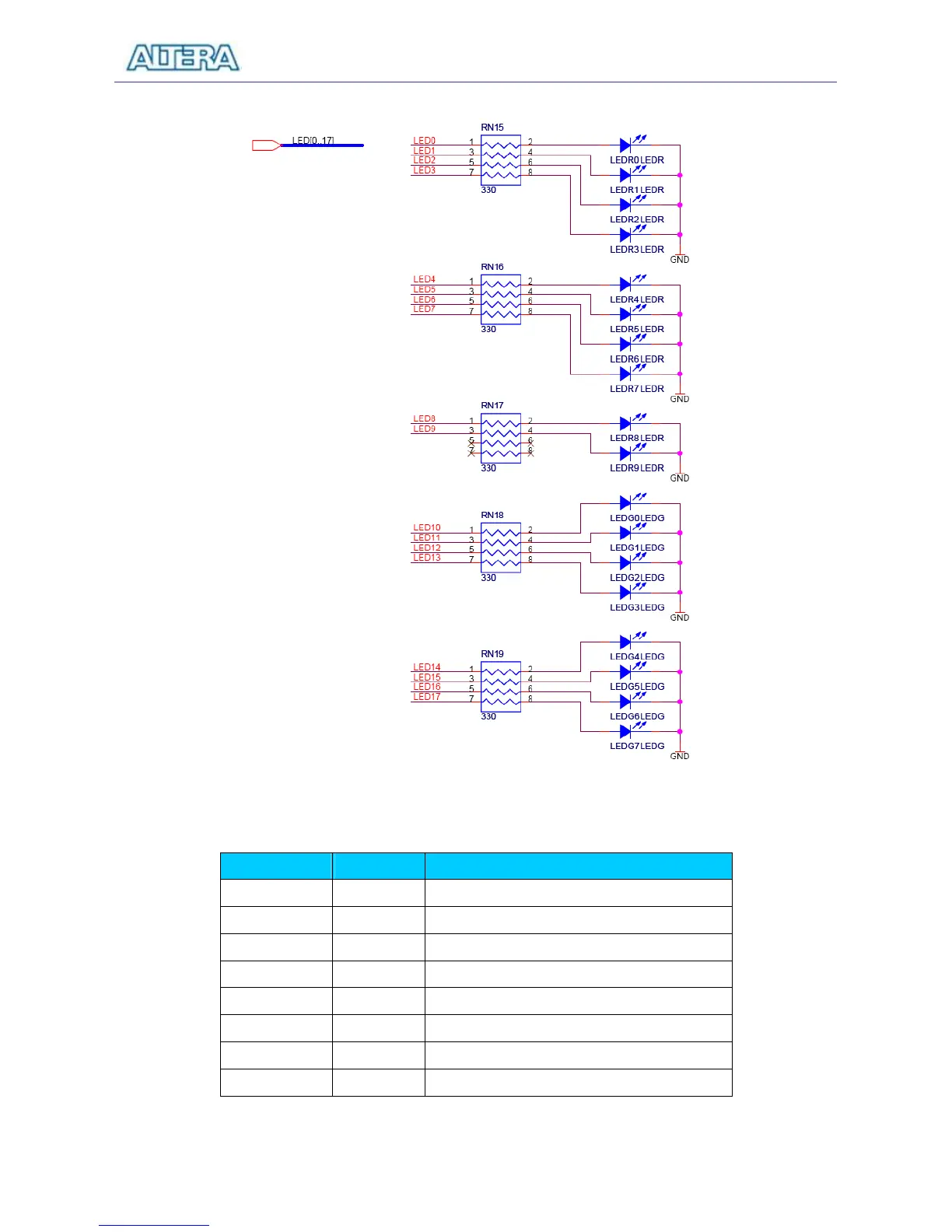

Figure 4.5. Schematic diagram of the LEDs.
Signal Name FPGA Pin No.
Description
SW[0] PIN_L22 Toggle Switch[0]
SW[1] PIN_L21 Toggle Switch[1]
SW[2] PIN_M22 Toggle Switch[2]
SW[3] PIN_V12 Toggle Switch[3]
SW[4] PIN_W12 Toggle Switch[4]
SW[5] PIN_U12 Toggle Switch[5]
SW[6] PIN_U11 Toggle Switch[6]
SW[7] PIN_M2 Toggle Switch[7]
