COMBITHERM GAS INSTALLATION AND MAINTENANCE MANUAL — 6470ML
PG. 12
COMBITHERM® GAS INSTALLATION
1.22 STACKING COMBITHERM CONNECTIONS
Stacking Combitherm requirements:
• Two (2) water supply connections
• Two (2) water drain connections
• Two (2) gas connections
IF LOCAL CODE ALLOWS
,
the gas, water,
and drain may be manifolded as long as the
size of the water inlet is increased to 1-inch
(25,4mm) and the drains include an external

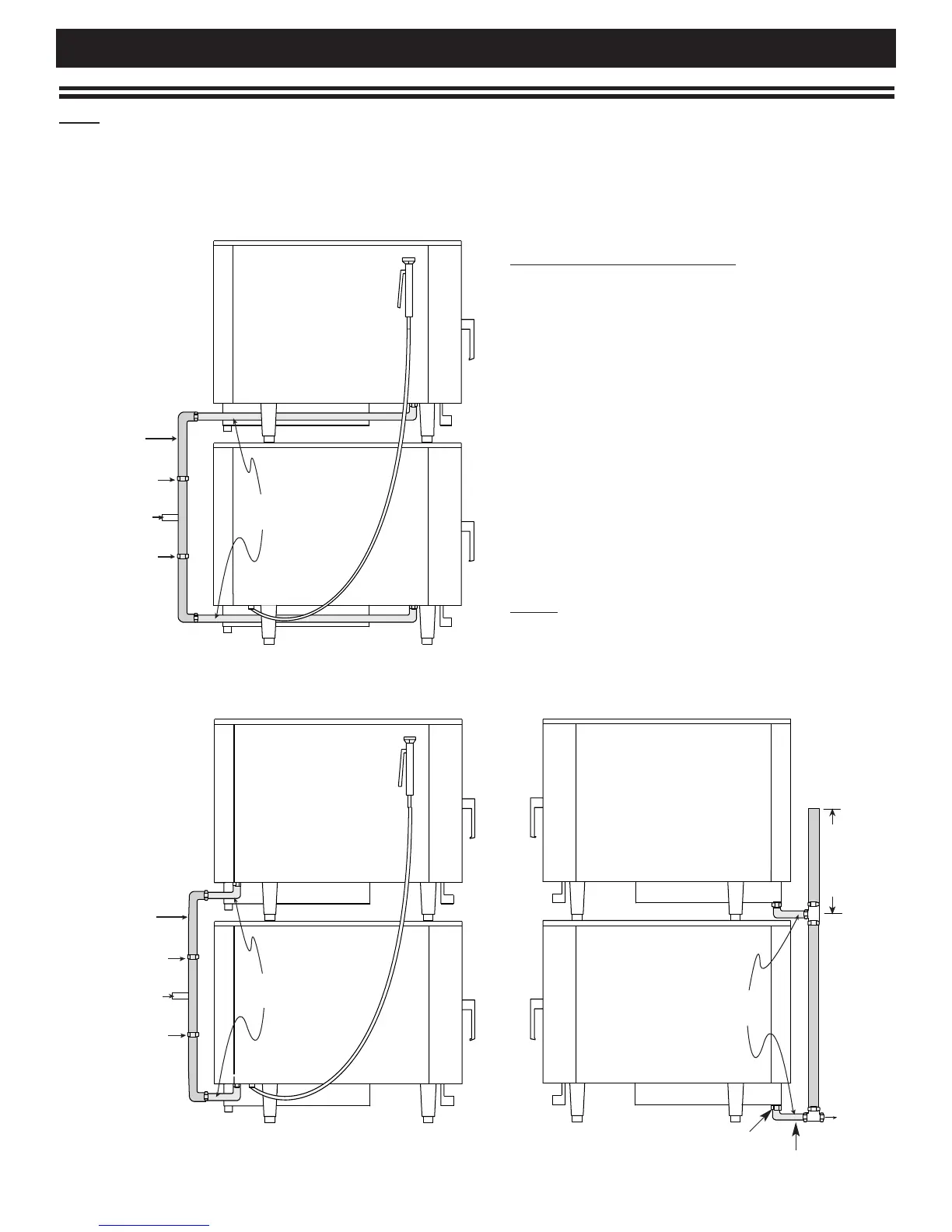

vent. The drawing illustrates one suggested
method of a manifold installation.
NO
TE:
To aid in water drain installation,
your shipment includes
two (2) Water Drain Tubes, DA-26315 and
two (2) Water Drain Nuts, DA-26316.
3/4"
(19mm)
1"
(25,4mm)
UNION
UNION
Intake
1" (25,4mm)
VENT
15" (381mm)
1-1/4"
(32mm)
1-1/2" (38mm)
3/4"
(19mm)
1"
(25,4mm)
UNION
UNION
Intake
1" (25,4mm)
GAS
WATER DRAIN
DA-26315
DA-26316
