COMBITHERM GAS INSTALLATION AND MAINTENANCE MANUAL — 6470ML
PG. 5
COMBITHERM® GAS INSTALLATION
1.8 ASSEMBLY REQUIREMENTS

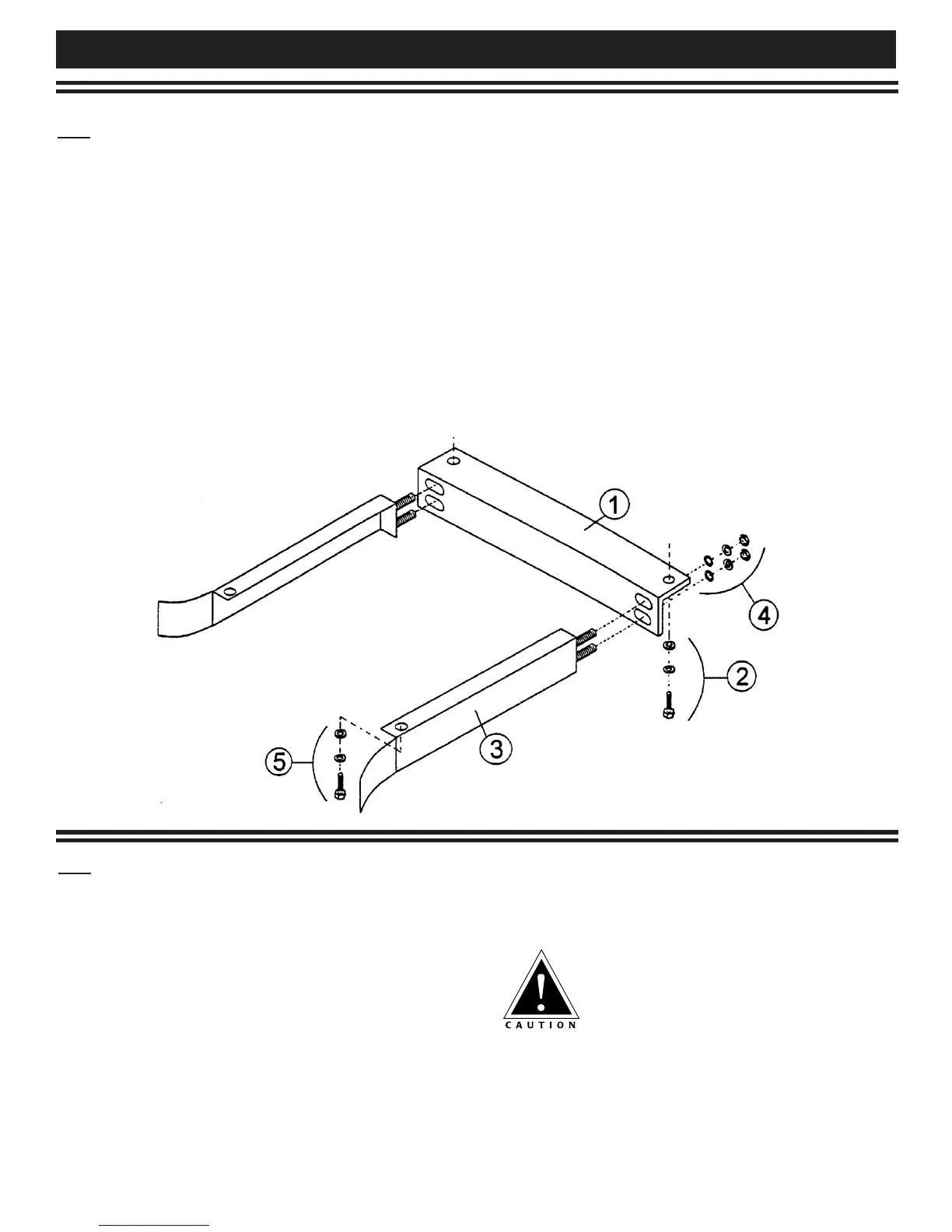

1.8.5 ROLL-IN CART (TROLLEY) GUIDE RAILS
(ON CART EQUIPPED MODELS)
Mount REAR SUPPORT on the bottom of the oven
toward the back. Fasten each end of the
REAR SUPPORT
with a WASHER, LOCK WASHER, and BOLT . Align each
GUIDE RAIL with the slotted holes located at the
front of the REAR SUPPORT. Loosely fasten each GUIDE
RAIL
from the back of the REAR SUPPORT with a WASHER,
LOCK WASHER, and NUT .
Do not tighten GUIDE RAIL fasteners. Attach the front
end of each GUIDE RAIL to the oven base with a
WASHER, LOCK WASHER, and BOLT .
Push the roll-in cart (trolley) into the oven, center
the cart right-to-left, and close the oven door. From
the rear of the oven, slide both guide rails toward
the center of the oven until they make contact with
the roll-in cart. Lock the
GUIDE RAILS into position by
tightening both
NUTS at the back of the REAR
SUPPORT
. At the front of the oven, make certain
contact has been made between the oven and the
cart along the total width of the oven to create a
complete seal. When a full seal has been determined,
recheck each connection to make certain it has been
fully tightened.
1.9 ELECTRICAL CONNECTION
Ensure the power supply matches the electrical
specification located on the oven data plate. Gas
models shipped within the United States and Canada
are typically rated 110-120V, 60Hz, 1Ph and include
an electrical cord. Fuses are located behind the left
side panel.
Installation of electrical connections and wiring must
be made by a
licensed electrical contractor. The oven
must be electrically grounded in accordance with local
codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70 (latest
edition). In Canada, electrical connections must
comply with the Canadian Electrical Code, CSA C22.1.
ACCESSING CONTROL AREA
Access the electrical control system through the left
side panel of the oven.
MAKE CERTAIN TO DISCONNECT POWER AND
ENSURE THE GAS SUPPLY IS SHUT OFF
BEFORE REMOVING THE LEFT SIDE PANEL.
An electrical diagram is affixed inside the left-hand
side control area. A copy of the electrical diagram is
also located at the back of this manual. Service or
changes must be done by a licensed electrical
contractor and in accordance with local codes
and regulations.
