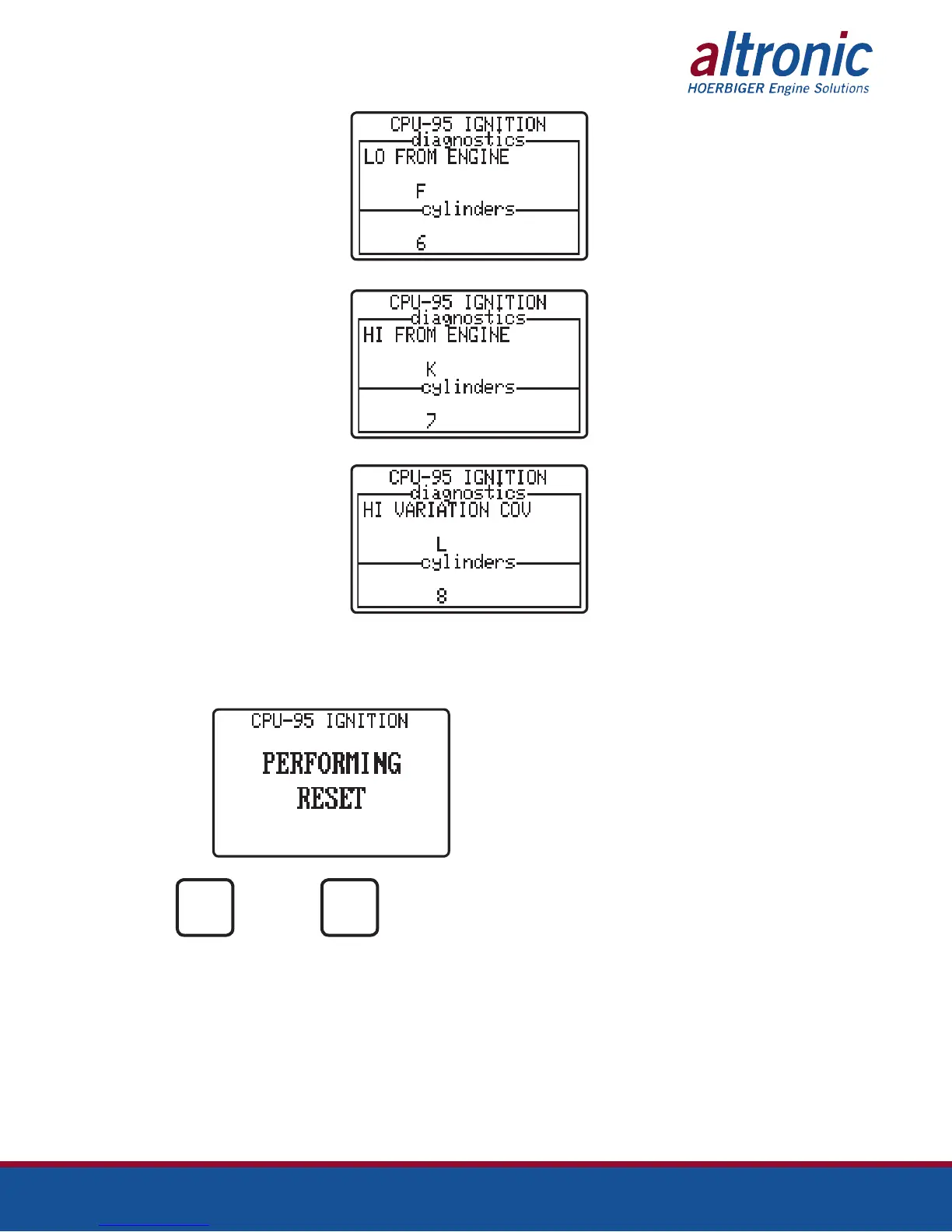

This screen indicates that the diag-
nostics have detected a condition
where the average value of output
F (Cyl 6) is significantly lower than
the average of all the active outputs
on the engine.
This screen indicates that the diag-
nostics have detected a condition
where the average value of output
K (Cyl 7) is significantly higher than
the average of all the active outputs
on the engine.
This screen indicates that the
Diagnostic Module has detected
that output L (Cyl 8) is firing with
significant cycle-to-cycle variation.
10.7 After all of the diagnostics have been read, the user can reset the warnings and
faults by pressing the reset key as pictured below.
PRESS PRESS
TO EXIT
ESC RESET
Pressing the reset key performs all of the following actions:
• Clears all diagnostic warnings from memory.
• Clears all diagnostic faults from memory.
• Clears a latched shutdown condition when the input is no longer
grounded.
• Causes temporary cylinder timing offsets to be overwritten from
EEPROM memory.
