7.0 ADJUSTING INDIVIDUAL OFFSETS
7.1 The timing of individual cylinders can be offset by up to 3 degrees of advance
or retard from the global timing of the engine. Adjustments made as described
below should be considered temporary. The ignition will revert back to the values
saved in EEPROM memory on every reset, start or power-up. To save temporary
adjustments to EEPROM memory SEE SECTION 8.0.
7.2 Enter the individual timing adjustment menu as described below.
FROM PRESS
TIMING
THEN AT PRESS
THEN At PRESS

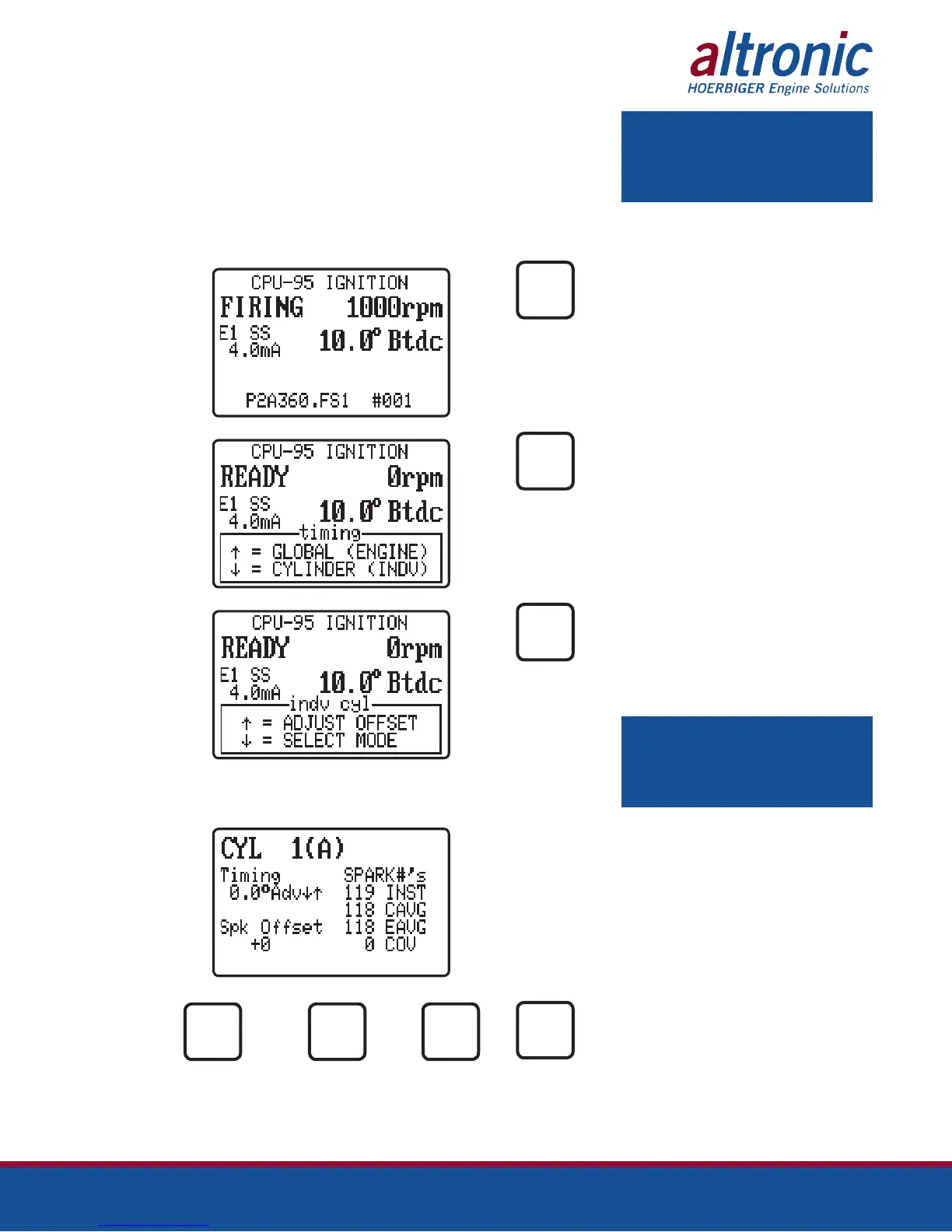

7.3 The individual timing adjustment screen identifies the primary output to be
adjusted, and the degrees of offset in use for the output.
THEN AT NOTE: 2.5 degrees
advance for
output A.
TO TO TO TO
ADVANCE RETARD SELECT EXIT
NEXT
CYL.
NEXT
ESC
NOTE: In applications with narrow fir-
ing angles, the adjustment range may
be limited.
NOTE: The output identification
characters can be configured.
SEE SECTION 9.0
