36
12.7 If the COV reference number is greater than the HI VARIATION COV threshold,
a diagnostic warning for that cylinder will occur. This test will identify a cylinder
whose cycle-to-cycle voltage demand has become erratic.
Default = 255 (disabled)
13.0 GRAPHING

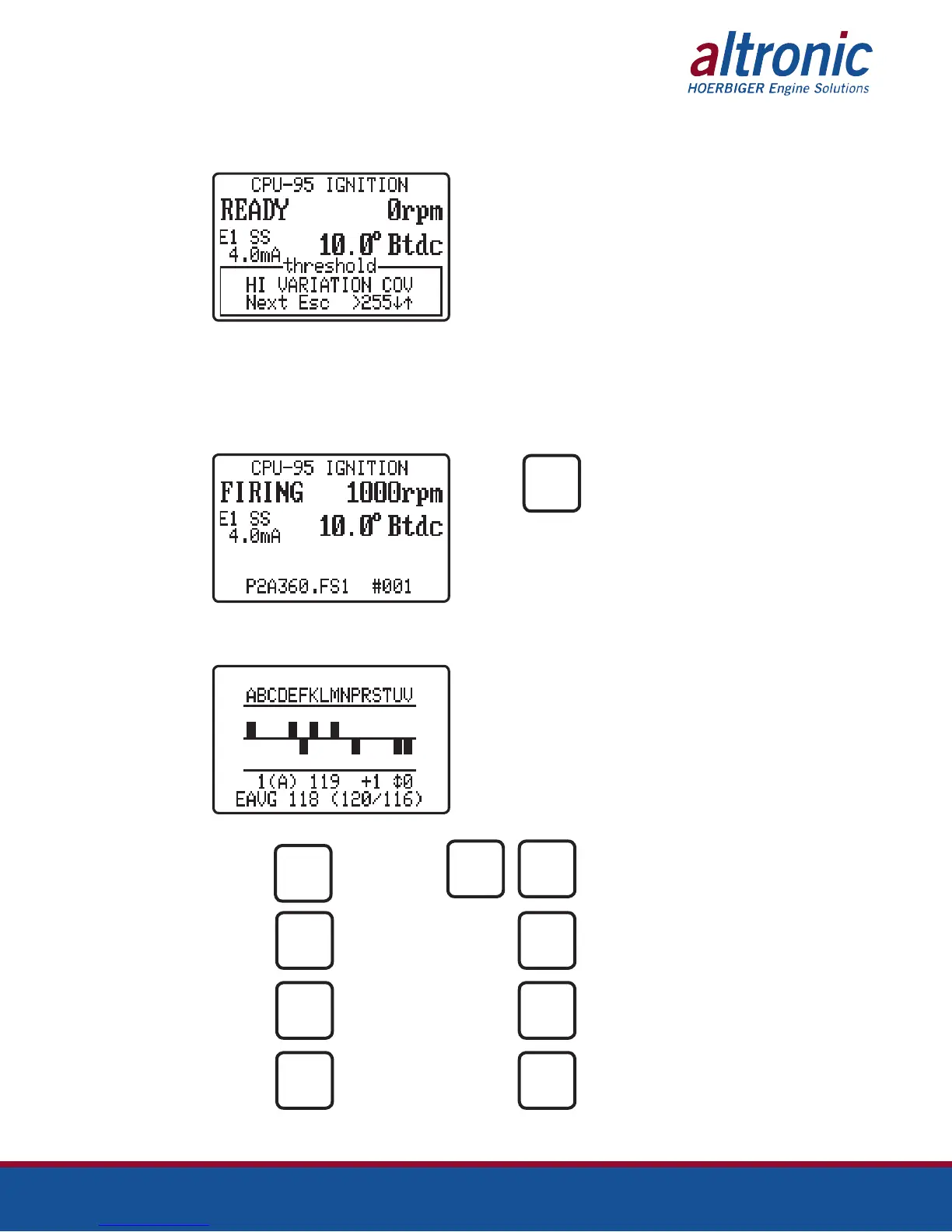

13.1 The display module has two graphs of the spark diagnostic data.
FROM PRESS
F3
13.2 The first graph shows all cylinders CAVG (cylinder average) spark diagnostic
number in relation the EAVG (engine average).
PRESS TO TOGGLE PRESS TO
BETWEEN OUTPUT INCREASE/
LEAD AND CYLINDER DECREASE
LABEL
THE ZOOM
PRESS TO INCREMENT PRESS TO ACCESS THE
THE CYLINDER BEING CURRENT SELECTED
VIEWED CYLINDER GRAPH
NEXT
F3
PRESS TO VIEW THE PRESS TO ADJUST THE
CURRENT SELECTED CURRENT SELECTED
CYLINDER CYLINDER SPARK OFFSET
F1
F4
PRESS TO ADJUST THE PRESS TO EXIT
CURRENT SELECTED
CYLINDER TIMING OFFSET
TIMING
ESC
13.3 The second graph shows each individual cylinder. The solid line is the
MAN
