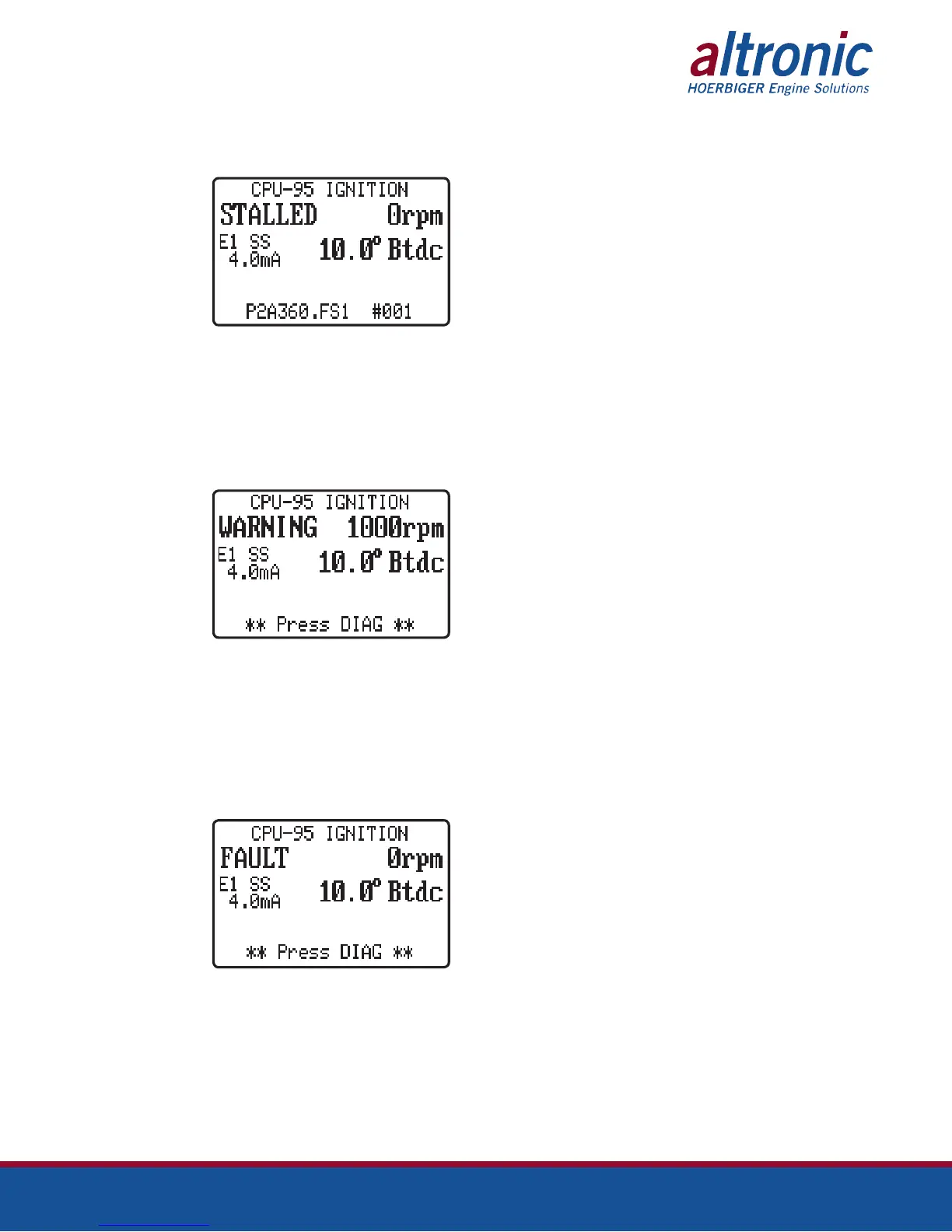

4.5 The STALLED message is displayed when a loss of rotation is detected after the
ignition is firing and neither a SHUTDOWN or FAULT has occurred. This signifies
that the engine has stopped without any detected cause from the ignition system.
4.6 The WARNING message will supersede all of the above home screens if a
diagnostic warning condition is present. When a diagnostic warning exists, a
** Press DIAG ** message will appear on the display. The Ignition Module will
continue to operate under a warning condition while alerting the operator of a
potential problem in several ways: by turning on the Alarm LED in the Ignition
Module and by changing the state of the Alarm Out switch (switch opens). The
Display Module will display the Warning message. The various types of diagnostic
warnings are described in SECTION 10.0.
4.7 The FAULT message will supersede all of the above home screens if a diagnostic
fault condition is present. When a diagnostic fault exists, a ** Press DIAG **
message will appear on the display. The ignition system will stop operating under
a fault condition and will alert the operator to the problem in several ways: by
changing the state of the Fire Confirm Out switch (switch opens), by turning on
the alarm LED inside the Ignition Module, by changing the state of the Alarm
Out switch (switch opens), by changing the state of the Fault Out switch (switch
opens), and by displaying the Fault message. The various types of diagnostic
faults are described in SECTION 10.0.
