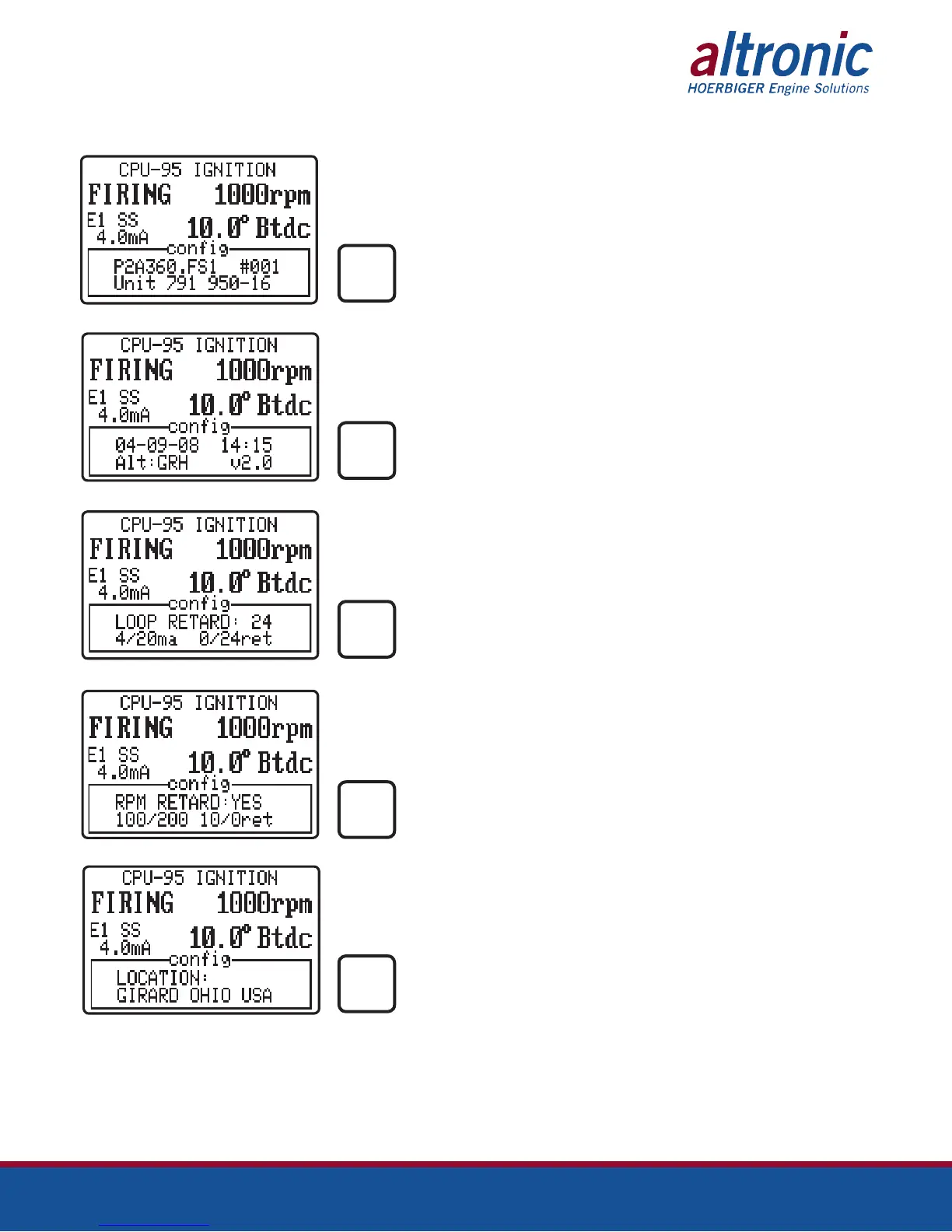

The following types of screens can be viewed by pressing NEXT to advance.
FIRING PATTERN CODE: (P2A360.FS1)
SPECIAL FEATURE CODE: (#001)
(1 STEP DEFAULT)
IGNITION MODULE TYPE: (PART NUMBER)
NEXT
DATE CONFIGURED: (04-09-08)
TIME CONFIGURED: (14:15)
CONFIGURED BY: (Alt:GRH)
TERMINAL VERSION #: (v2.0)
NEXT
CURRENT LOOP CURVE DESCRIPTION
AT 4mA 0° RETARD
AT 20mA 24° RETARD
USER SPECIFIED DESCRIPTION
NEXT
RPM RETARD CURVE DESCRIPTION
RETARD 10° BELOW 100rpm
RAMP TO 0° AT 200rpm
USER SPECIFIED DESCRIPTION
NEXT
LOCATION:
USER SPECIFIED DESCRIPTION
NEXT
