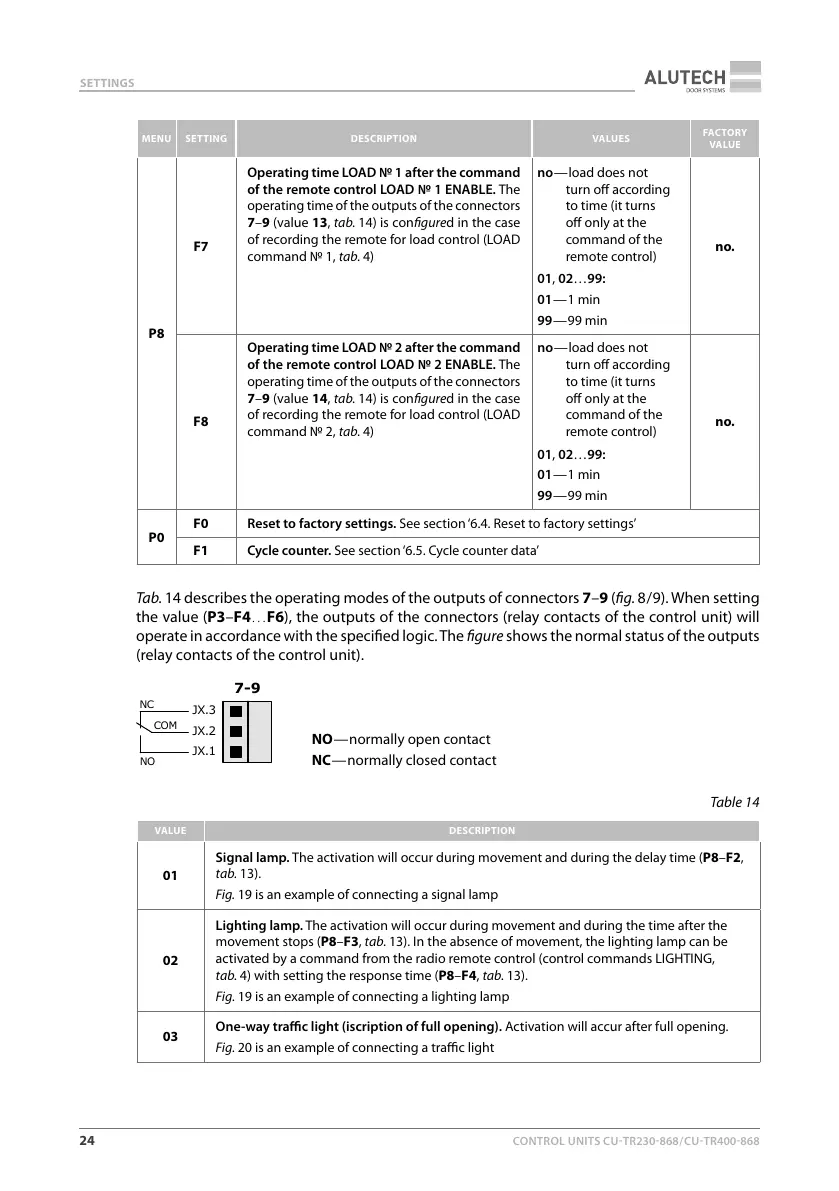

Alutech CU-TR230-868 - Page 25

CONTROL UNITS UTR230868 / UTR4008682424
SETTINGS
MENU SETTING DESCRIPTION VALUES
FACTORY
VALUE
P8
F7
Operating time LOAD  1 after the command
of the remote control LOAD  1 ENABLE. The
operating time of the outputs of the connectors
7–9 (value 13, tab.14) is congured in the case
of recording the remote for load control (LOAD
command  1, tab.4)
no — load does not
turn o according
to time (it turns
o only at the
command of the
remote control)
01, 02…99:
01 — 1 min
99 — 99 min
no.
F8
Operating time LOAD  2 after the command
of the remote control LOAD  2 ENABLE. The
operating time of the outputs of the connectors
7–9 (value 14, tab.14) is congured in the case
of recording the remote for load control (LOAD
command  2, tab.4)
no — load does not
turn o according
to time (it turns
o only at the
command of the
remote control)
01, 02…99:
01 — 1 min
99 — 99 min
no.
P0
F0 Reset to factory settings. See section ‘6.4. Reset to factory settings’
F1 Cycle counter. See section ‘6.5. Cycle counter data’
Tab.14 describes the operating modes of the outputs of connectors 7–9 (g.8 / 9). When setting
the value (P3–F4…F6), the outputs of the connectors (relay contacts of the control unit) will
operate in accordance with the specied logic. The gure shows the normal status of the outputs
(relay contacts of the control unit).
JX.3
JX.2
JX.1
7-9
NO
NC
COM
NO — normally open contact
NC — normally closed contact
Table14
VALUE DESCRIPTION
01
Signal lamp. The activation will occur during movement and during the delay time (P8–F2,
tab.13).
Fig.19 is an example of connecting a signal lamp
02
Lighting lamp. The activation will occur during movement and during the time after the
movement stops (P8–F3, tab.13). In the absence of movement, the lighting lamp can be
activated by a command from the radio remote control (control commands LIGHTING,
tab.4) with setting the response time (P8–F4, tab.13).
Fig.19 is an example of connecting a lighting lamp
03
One-way trac light (iscription of full opening). Activation will accur after full opening.
Fig.20 is an example of connecting a trac light
